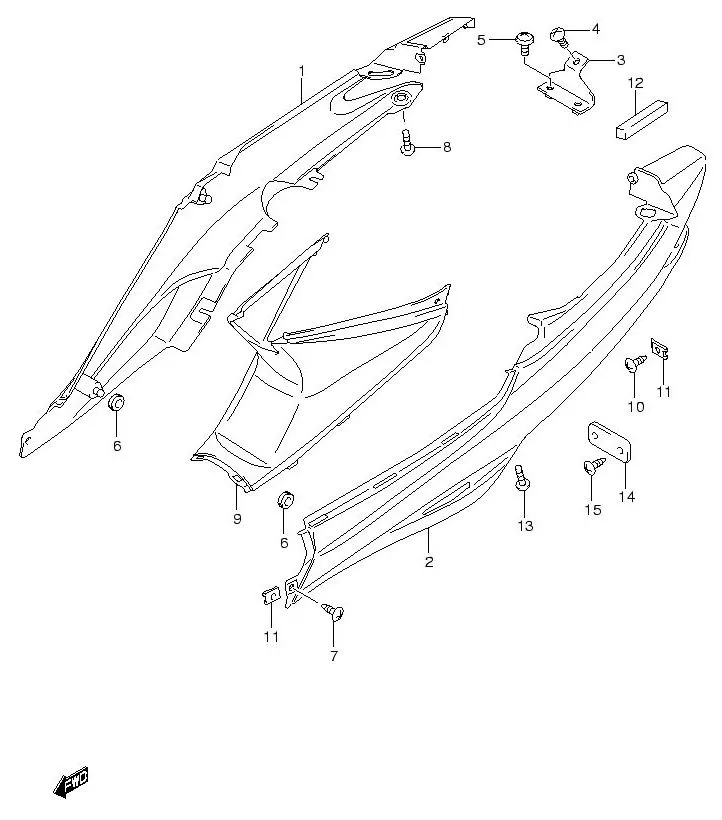

FIG.31 FRAME COVER

FIG.31 FRAME COVER
No No. Part Description Qty Price Per Pcs Remarks
1-2 47111-07H00-X0H
SUB: 47111B07H00NX0H		 COVER FRAME RH (TITAN BLACK) 1 Rp187.500
1-3 47111-07H00-X0N
SUB: 47111B07H00NX0N		 COVER FRAME RH (BLUE SHINE BLACK) 1 Rp187.500
1-4 DISCONTINUE
SUB: 47111B07H00NX8D		 COVER FRAME RH (ICE SILVER MET) 1 -
1-1 DISCONTINUE
SUB: 47111B07H00NX0G		 COVER FRAME RH (BRILIANT WHITE) 1 -
2-1 DISCONTINUE
SUB: 47211B07H00NX0G		 COVER FRAME LH (BRILIANT WHITE) 1 -
2-2 47211-07H00-X0H
SUB: 47211B07H00NX0H		 COVER FRAME LH (TITAN BLACK) 1 Rp187.500
2-3 47211-07H00-X0N
SUB: 47211B07H00NX0N		 COVER FRAME LH (BLUE SHINE BLACK) 1 Rp187.500
2-4 DISCONTINUE
SUB: 47211B07H00NX8D		 COVER FRAME LH (ICE SILVER MET) 1 -
3 DISCONTINUE
SUB: 35720B07H00N000		 BRACKET, REAR 1 -
4 01550B0612BN000 BOLT 2 Rp2.500
5 03541-0516A-000
SUB: 03541B0516BN000		 SCREW 2 Rp3.500
5A 09160-05045-000
SUB: 09160B05045N000		 WASHER 4 Rp4.500
6 48169-12JA0-000
SUB: 09320B08018N000		 CUSHION 4 Rp15.000
7 03541-0516A-000
SUB: 03541B0516BN000		 SCREW, FRONT 4 Rp3.500
8 03541-1516B-000
SUB: 03541B1516BN000		 SCREW, REAR 1 Rp4.500
9 47511-07H00-000
SUB: 47511B07H00N000		 COVER FRAME FR 1 Rp115.000
10 03541-0516A-000
SUB: 03541B0516BN000		 SCREW 2 Rp3.500
11 09148-05038-000
SUB: 09148B05038N000		 NUT 3 Rp4.000
12 47165-07H00-000 CUSHION 2 -
13 03541-0512B-000
SUB: 03541B0512BN000		 SCREW 2 Rp4.000
14 47141-07H00-000
SUB: 47141B07H00N000		 PLATE, COVER 1 Rp9.000
15 03541-0512B-000
SUB: 03541B0512BN000		 SCREW 2 Rp4.000
16 DISCONTINUE
SUB: 48135B47G00N000		 CUSHION 4 -
17 48135-09G00-000
SUB: 48135B09G00N000		 CUSHION 4 Rp4.000
18 47245-07H00-000 WASHER 4 Rp40.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
