NEW SMASH (FK110SD/SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.27 FRAMEFIG.28 STANDFIG.29 FOOTRESTFIG.30 FUEL TANKFIG.31 FRAME COVERFIG.32 SHIELD LEGFIG.33 FRONT FENDERFIG.34 HANDLER BARFIG.35 HANDLE COVERFIG.36 LEVER HANDLEFIG.37 REAR FENDERFIG.38 LUGGAGE BOXFIG.39 LABELFIG.40 SEATFIG.41 FRONT FORKFIG.42 FRONT FORK BRACKETFIG.43 FRONT WHEELFIG.44 FRONT WHEELFIG.45 FRONT CALIPERFIG.46 FRONT MASTER CYLINDERFIG.47 REAR SWINGARMFIG.48 CHAIN CASEFIG.49 REAR WHEELFIG.50 REAR WHEEL

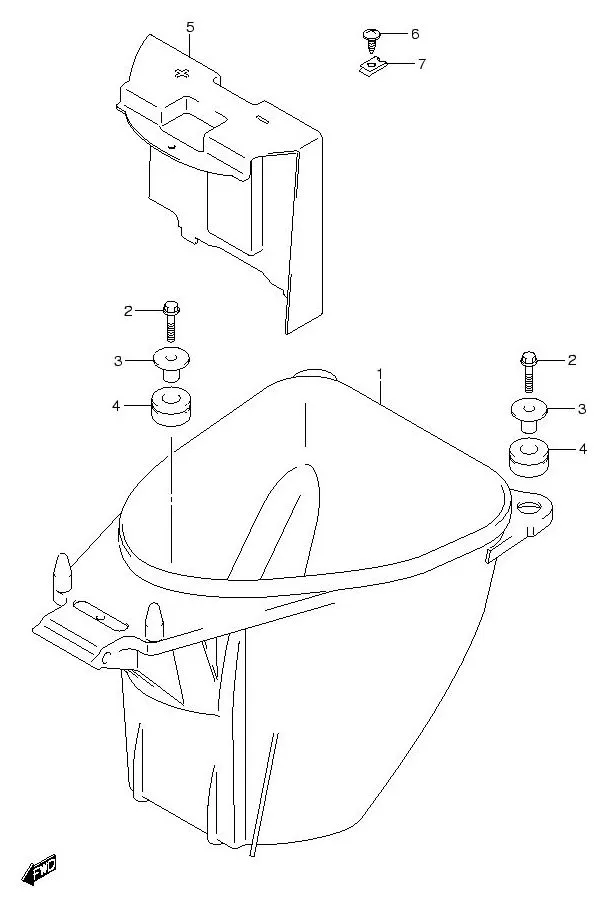

FIG.38 LUGGAGE BOX

FIG.38 LUGGAGE BOX
No No. Part Description Qty Price Per Pcs Remarks
1 92211-07H00-000
SUB: 92211B07H00N000		 BOX, LUGGAGE 1 Rp141.500
2 01547-0630A-000
SUB: 01547B0630BN000		 BOLT 4 Rp6.500
3 92215-20G00-000
SUB: 92215B20G00N000		 SPACER 4 Rp8.000
4 DISCONTINUE
SUB: 92216B20G00N000		 CUSHION 4 -
5 DISCONTINUE
SUB: 92212B07H00N000		 LID, BATTERY 1 -
6 03541-0516A-000
SUB: 03541B0516BN000		 SCREW 1 Rp3.500
7 09148-05038-000
SUB: 09148B05038N000		 NUT 1 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
