NEW SMASH (FK110SD/SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.27 FRAMEFIG.28 STANDFIG.29 FOOTRESTFIG.30 FUEL TANKFIG.31 FRAME COVERFIG.32 SHIELD LEGFIG.33 FRONT FENDERFIG.34 HANDLER BARFIG.35 HANDLE COVERFIG.36 LEVER HANDLEFIG.37 REAR FENDERFIG.38 LUGGAGE BOXFIG.39 LABELFIG.40 SEATFIG.41 FRONT FORKFIG.42 FRONT FORK BRACKETFIG.43 FRONT WHEELFIG.44 FRONT WHEELFIG.45 FRONT CALIPERFIG.46 FRONT MASTER CYLINDERFIG.47 REAR SWINGARMFIG.48 CHAIN CASEFIG.49 REAR WHEELFIG.50 REAR WHEEL

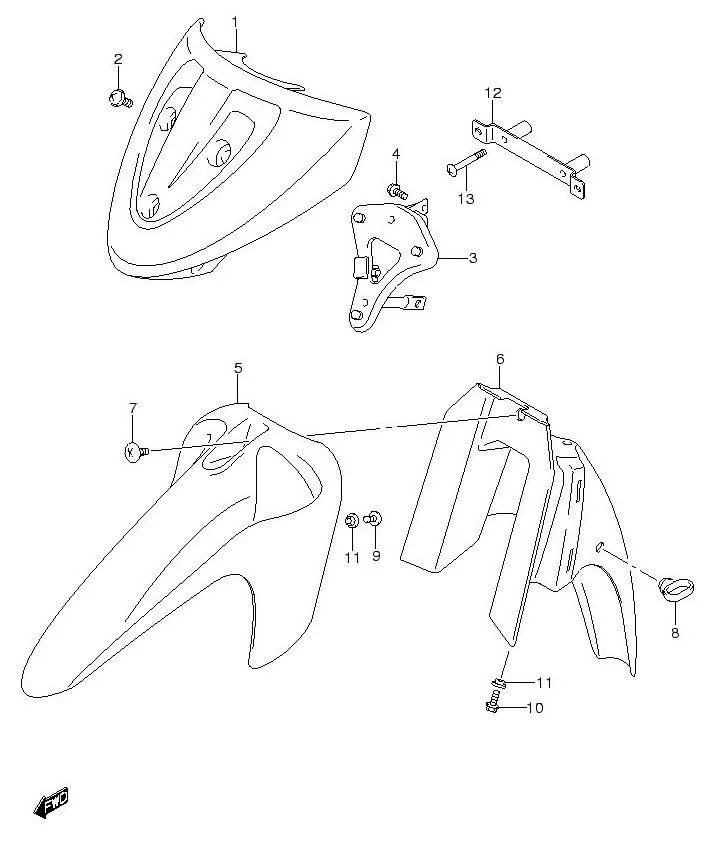

FIG.33 FRONT FENDER

FIG.33 FRONT FENDER
No No. Part Description Qty Price Per Pcs Remarks
1-2 51871-07H10-X1L
SUB: 51871B07H10NX1L		 COVER FRAME HEAD (NEW CELEBRATION RED MET) 1 Rp130.000
1-3 51871-07H10-X2J
SUB: 51871B07H10NX2J		 COVER FRAME HEAD (MACHO BRIGHT BLUE MET) 1 Rp130.000
1-4 DISCONTINUE
SUB: 51871B07H10NX6F		 COVER FRAME HEAD (MAX ORANGE MET) 1 -
1-5 DISCONTINUE
SUB: 51871B07H10NX8D		 COVER FRAME HEAD (ICE SILVER METALIC) 1 -
1-1 51871-07H10-X0H
SUB: 51871B07H10NX0H		 COVER FRAME HEAD (TITAN BLACK) 1 Rp139.500
2 09136-06004-000
SUB: 09136-06002-000		 SCREW 1 Rp14.500
3 DISCONTINUE
SUB: 51860B07H10N000		 BRACE, HEAD COVER 1 -
4 01550B0612BN000 BOLT 2 Rp2.500
5-8 DISCONTINUE
SUB: 53111B07H00NX1G		 FENDER FR NO.1 (STRONG RED) 1 - FK110-SD
5-13 DISCONTINUE
SUB: 53111B07H00NYUL		 FENDER FR NO.1 (SUMMER RED) 1 - FK110 D; FK110-SD; FK110-SC
5-12 DISCONTINUE
SUB: 53111B07H00NX8D		 FENDER FR NO.1 (ICE SILVER MET) 1 - FK110-SD
5-11 DISCONTINUE
SUB: 53111B07H00NX3B		 FENDER FR NO.1 (AURA YELLOW) 1 - FK110-SD
5-10 53111-07H00-X2J
SUB: 53111B07H00NX2J		 FENDER FR NO.1 (M BRITE BLUE) 1 Rp182.000 FK110-SD
5-9 53111-07H00-X1L
SUB: 53111B07H00NX1L		 FENDER FR NO.1 (NEW CELEBRATION RED) 1 Rp187.000 FK110-SD
5-7 53111-07H00-X0H
SUB: 53111B07H00NX0H		 FENDER FR NO.1 (TITAN BLACK) 1 Rp183.000 FK110-SD
5-6 53111-07H00-735
SUB: 53111B07H00N735		 FENDER FR NO.1 (SOLARIZE SILVER) 1 Rp187.000 FK110-SD
5-5 DISCONTINUE
SUB: 53111B07H00NYVD		 FENDER FR NO.1 (DARK GRAY,MET) 1 - FK110-SC
5-4 DISCONTINUE
SUB: 53111B07H00NYTS		 FENDER FR NO.1 (MAJESTIC GOLD,MET) 1 - FK110-SC
5-3 DISCONTINUE
SUB: 53111B07H00NX6D		 FENDER FR NO.1 (NEW ORANGE) 1 - FK110-SC
5-2 DISCONTINUE
SUB: 53111B07H00NX0N		 FENDER FR NO.1 (BLUE SHINE BLACK) 1 - FK110-SC
5-1 DISCONTINUE
SUB: 53111B07H00NX0G		 FENDER FR NO.1 (BRILIANT WHITE) 1 - FK110-SC
6 53211-07H00-000
SUB: 53211B07H00N000		 FENDER, FRONT NO.2 1 Rp43.000
7 53274-09G00-000
SUB: 53274B09G00N000		 SCREW, UPPER 1 Rp7.000
8 58621-47E00-000
SUB: 58621B47E00N000		 GUIDE, FRONT BRAKE CABLE 1 Rp4.000
9 02142-0612A-000
SUB: 02142B0612BN000		 SCREW 2 Rp4.000
10 01550B0612BN000 BOLT 1 Rp2.500
11 09169-06071-000
SUB: 09169B06071N000		 WASHER 3 Rp7.500
12 DISCONTINUE
SUB: 48190B07H00N000		 PLATE, FRONT LICENSE 1 -
13 02142-0645B-000
SUB: 02142B0645BN000		 SCREW 2 Rp7.000
14 DISCONTINUE
SUB: 47165B09G00N000		 CUSHION 2 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
