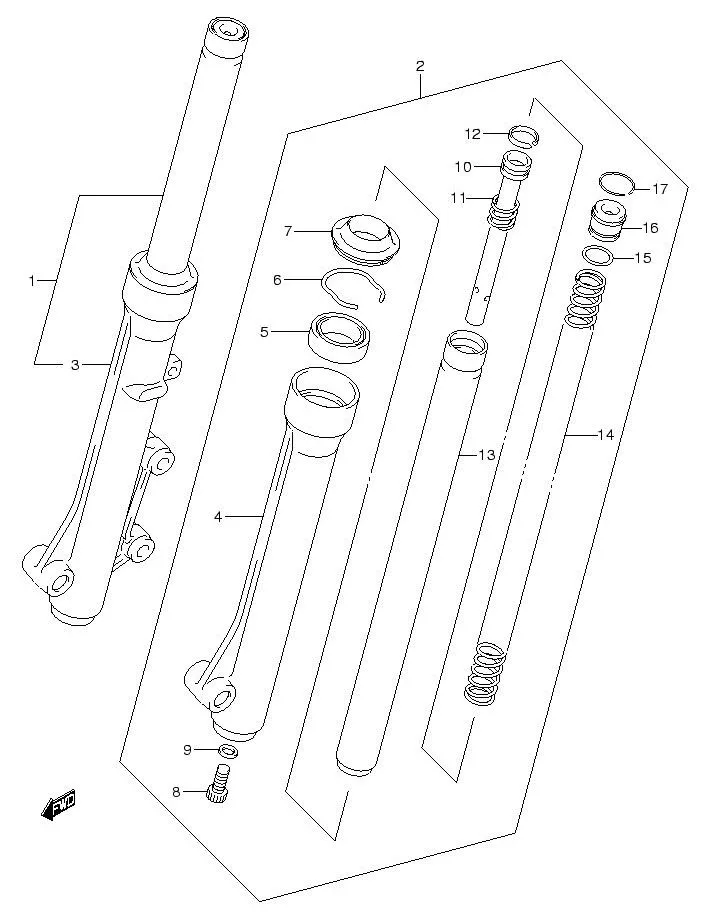

FIG.41 FRONT FORK

FIG.41 FRONT FORK
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 51103B09GD0N000		 DAMPER ASSY, FRONT FORK RH 1 -
2 DISCONTINUE
SUB: 51104B09GD0N000		 DAMPER ASSY, FRONT FORK LH 1 -
3 DISCONTINUE
SUB: 51131B09G20N000		 •TUBE, OUTER RH 1 -
4 DISCONTINUE
SUB: 51141B09G20N000		 •TUBE, OUTER LH 1 -
5 51153-09G00-000 •SEAL, OIL 2 Rp16.500
6 51156-09G00-000 •RING, SNAP 2 Rp4.500
7 51571-09G00-000 •SEAL, DUST 2 Rp8.000
8 51147-42AA0-000
SUB: 51147B42AA0N000		 •BOLT 2 Rp8.500
9 51148-31030-000 •PACKING 2 Rp4.000
10 DISCONTINUE
SUB: 51194B09G00N000		 •CYLINDER 2 -
11 51177-47E00-000 •SPRING 2 Rp5.000
12 51196-09G00-000
SUB: 51196B09G00N000		 •RING, PISTON 2 Rp8.000
13 DISCONTINUE
SUB: 51110B09G20N000		 •TUBE, INNER 2 -
14 51171-09GD0-000
SUB: 51171B09GD0N000		 •SPRING, FRONT 2 Rp22.500
15 51117-09G00-000 •O RING 2 Rp3.500
16 51175-09G00-000
SUB: 51175B09G00N000		 •CAP 2 Rp10.500
17 51169-09G00-000 •RING, STOPPER 2 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
