NEW SMASH (FK110SD/SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.27 FRAMEFIG.28 STANDFIG.29 FOOTRESTFIG.30 FUEL TANKFIG.31 FRAME COVERFIG.32 SHIELD LEGFIG.33 FRONT FENDERFIG.34 HANDLER BARFIG.35 HANDLE COVERFIG.36 LEVER HANDLEFIG.37 REAR FENDERFIG.38 LUGGAGE BOXFIG.39 LABELFIG.40 SEATFIG.41 FRONT FORKFIG.42 FRONT FORK BRACKETFIG.43 FRONT WHEELFIG.44 FRONT WHEELFIG.45 FRONT CALIPERFIG.46 FRONT MASTER CYLINDERFIG.47 REAR SWINGARMFIG.48 CHAIN CASEFIG.49 REAR WHEELFIG.50 REAR WHEEL

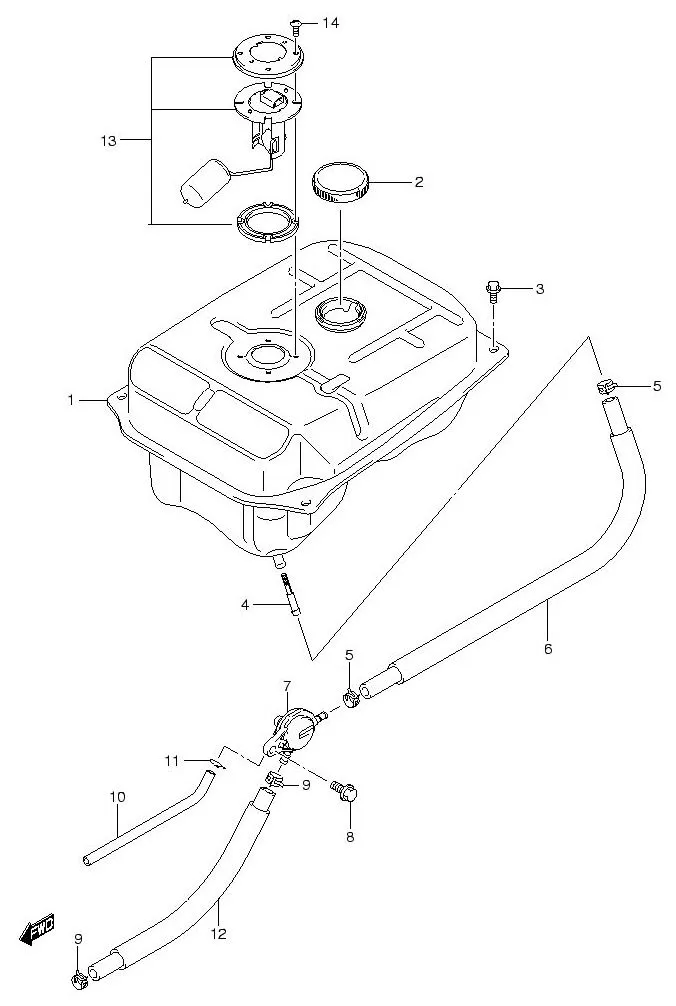

FIG.30 FUEL TANK

FIG.30 FUEL TANK
No No. Part Description Qty Price Per Pcs Remarks
1 44110-07H01-000
SUB: 44110B07H00N000		 TANK, FUEL 1 Rp571.000
2 44210-35014AS01
SUB: 44210-35014L000		 CAP ASSY, FUEL 1 Rp21.500
3 01550B0612BN000 BOLT 4 Rp2.500
4 44322-27001-000
SUB: 44322B27001N000		 FILTER, FUEL 1 Rp16.500
5 09401-10409-000
SUB: 09401B10409N000		 CLIP 1 Rp7.500
6 44421-07H10-000
SUB: 44421B07H10N000		 HOSE, FUEL 1 Rp26.000
7 44300-09G00-000
SUB: 44300B09G00N000		 COCK ASSY, FUEL 1 Rp278.000
8 01550-0616B-000
SUB: 01550B0616BN000		 BOLT, COCK 1 Rp5.500
9 09401-09403-000
SUB: 09401B09403N000		 CLIP 3 Rp3.500
10 09352-40703-000
SUB: 09352B40703N000		 HOSE, VACUUM 1 Rp5.500
11 09401-06101-000
SUB: 09401B06101N000		 CLIP, VACUUM 1 Rp2.000
12 DISCONTINUE
SUB: 44422B07H00N000		 HOSE, CARB 1 -
13 34810-20G11-000
SUB: 34810B20G10N000		 GAUGE ASSY, FUEL LEVEL 1 Rp100.000
14 DISCONTINUE
SUB: 34825-02100-000		 •GASKET 1 -
15 02112-0512A-000
SUB: 02112B0512BN000		 SCREW 4 Rp2.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
