  5. FIG. 071 AUDIO(W/DISPLAY AUDIO:9 INCH)

New Jimny 5 Doors

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 050 ENGINE ELECTRICALFIG. 051 STARTING MOTORFIG. 052 GENERATORFIG. 053 BATTERYFIG. 054 SPEEDOMETERFIG. 055 HEADLAMPFIG. 056 FRONT FOGLAMPFIG. 057 TURN SIGNAL LAMPFIG. 058 REAR LAMPFIG. 059 ROOM LAMPFIG. 060 ENGINE ROOM HARNESSFIG. 061 ENGINE HARNESS BRACKET (5MT)FIG. 062 ENGINE HARNESS BRACKET (4AT)FIG. 063 WIRING HARNESS REAR SIDEFIG. 064 BODY HARNESS(RHD)FIG. 065 ELECTRICAL CONTROL BODYFIG. 066 ELECTRICAL CONTROL INSTRUMENTAL PANELFIG. 067 LOCK SETFIG. 068 FRONTWINDOW WIPER(RHD)FIG. 069 WINDOW WASHER(W/LEDHL)FIG. 070 REAR WINDOW WIPERFIG. 071 AUDIO(W/DISPLAY AUDIO:9 INCH)

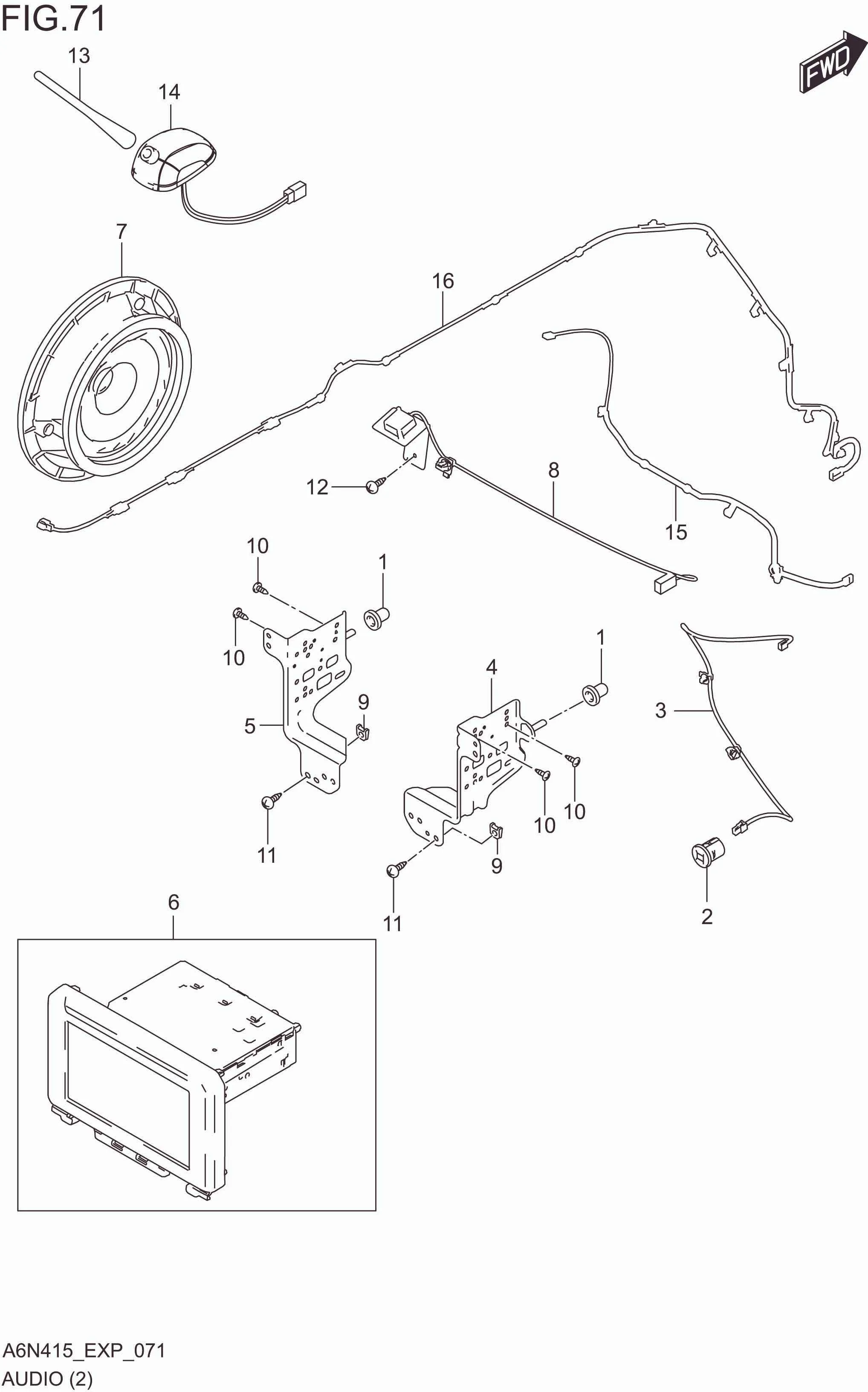

FIG. 071 AUDIO(W/DISPLAY AUDIO:9 INCH)

FIG. 071 AUDIO(W/DISPLAY AUDIO:9 INCH)
No No. Part Description Qty Price Per Pcs Remarks
1 34955M79M01-000 BUSH,TUNER BRACKET 2 Rp4.000
2 39105M80T00-000 SOCKET,USB 1 Rp219.000
3 39106M80T00-000 CABLE,USB 1 Rp390.000
4 39321M80T20-000 BRACKET,TUNER,RH 1 Rp21.000
5 39322M80T20-000 BRACKET,TUNER,LH 1 Rp21.000
6-1 3A102M80TB0-F08 UNIT ASSY,DISPLAY AUDIO(BLACK) 1 Rp25.171.500
7 39102M80T00-000 SPEAKER ASSY 4 Rp193.000
8 39950M80T00-000 ANTENNA ASSY,GPS 1 Rp367.500
9 09148M05L04-000 NUT 2 Rp5.000
10 02142-0508A-000 SCREW 4 Rp3.500
11 03541-0516A-000 SCREW 2 Rp3.500
12 03541-0516A-000 SCREW 1 Rp3.500
13 39251M74LA0-000 ROD,ANTENNA 1 Rp97.500
14 39253M74LA0-000 BASE,ANTENNA 1 Rp818.500
15 39270M80T00-000 FEEDER,I/P 1 Rp203.500
16 39271M80T00-000 FEEDER,ROOF 1 Rp359.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
