New Jimny 5 Doors

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 050 ENGINE ELECTRICALFIG. 051 STARTING MOTORFIG. 052 GENERATORFIG. 053 BATTERYFIG. 054 SPEEDOMETERFIG. 055 HEADLAMPFIG. 056 FRONT FOGLAMPFIG. 057 TURN SIGNAL LAMPFIG. 058 REAR LAMPFIG. 059 ROOM LAMPFIG. 060 ENGINE ROOM HARNESSFIG. 061 ENGINE HARNESS BRACKET (5MT)FIG. 062 ENGINE HARNESS BRACKET (4AT)FIG. 063 WIRING HARNESS REAR SIDEFIG. 064 BODY HARNESS(RHD)FIG. 065 ELECTRICAL CONTROL BODYFIG. 066 ELECTRICAL CONTROL INSTRUMENTAL PANELFIG. 067 LOCK SETFIG. 068 FRONTWINDOW WIPER(RHD)FIG. 069 WINDOW WASHER(W/LEDHL)FIG. 070 REAR WINDOW WIPERFIG. 071 AUDIO(W/DISPLAY AUDIO:9 INCH)

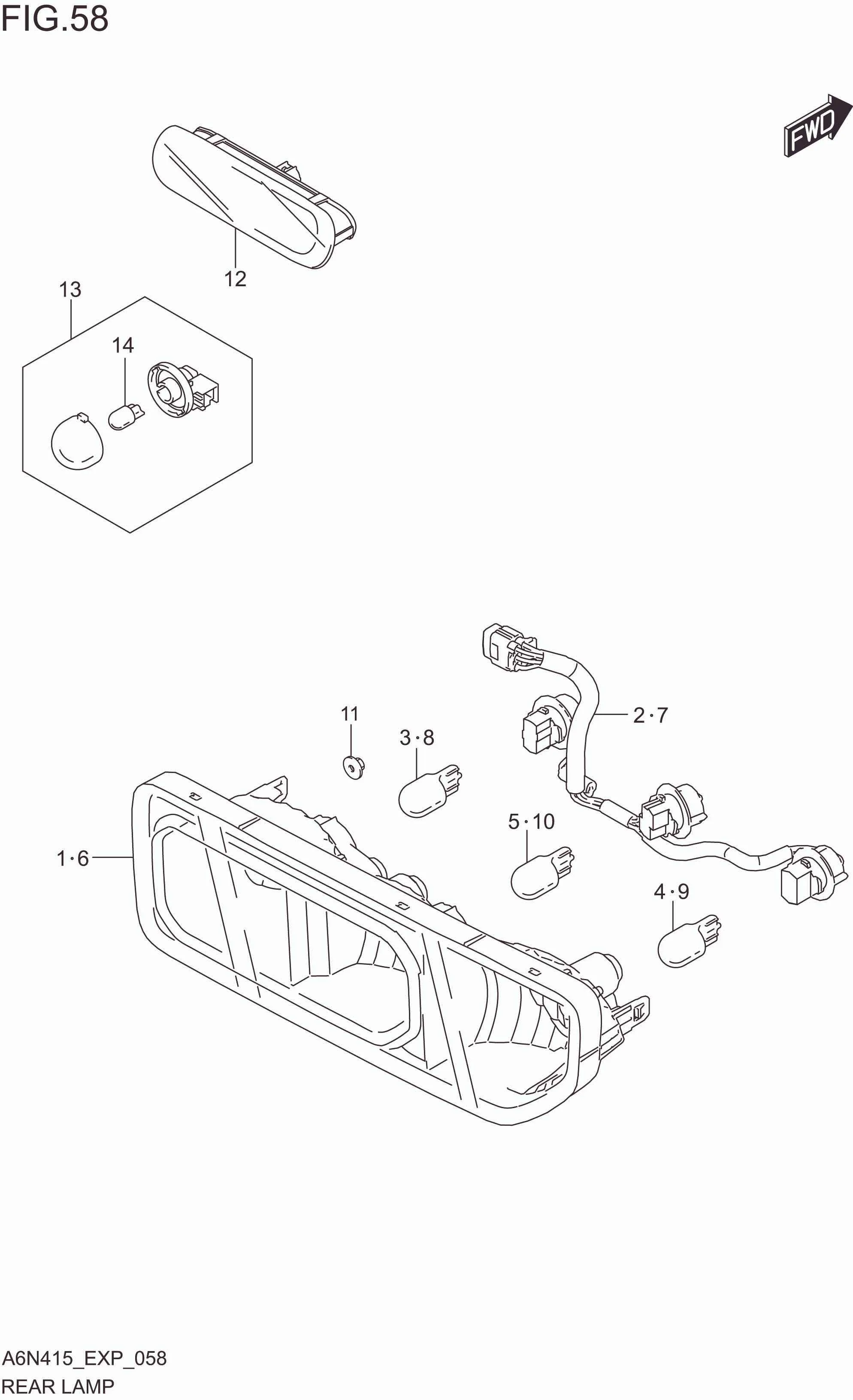

FIG. 058 REAR LAMP

FIG. 058 REAR LAMP
No No. Part Description Qty Price Per Pcs Remarks
1 35650M73T00-000 LAMP ASSY,RR COMB,RH 1 Rp258.500
2 35658M73T00-000 CORD ASSY,RH 1 Rp196.500
3 09471-12191-000 BULB (12V21W) 1 Rp52.500
4 09471-12192-000 BULB (12V21/5W) 1 Rp56.000
5 09471-12202-000 BULB (12V21W) 1 Rp78.000
6 35750M73T00-000 LAMP ASSY,RR COMB,LH 1 Rp258.500
7 35758M73T00-000 CORD ASSY,LH 1 Rp196.500
8 09471-12191-000 BULB (12V21W) 1 Rp52.500
9 09471-12192-000 BULB (12V21/5W) 1 Rp56.000
10 09471-12202-000 BULB (12V21W) 1 Rp78.000
11 08313-2006C-000 NUT,REAR COMB LAMP 6 Rp19.000
12 35810M73T00-000 LAMP ASSY,HIGH MT STOP 1 Rp194.500
13 35910M73T00-000 LAMP ASSY,LICENSE 2 Rp44.000
14 09471-12216-000 .BULB (12V5W) 2 Rp15.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
