New Jimny 5 Doors

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 050 ENGINE ELECTRICALFIG. 051 STARTING MOTORFIG. 052 GENERATORFIG. 053 BATTERYFIG. 054 SPEEDOMETERFIG. 055 HEADLAMPFIG. 056 FRONT FOGLAMPFIG. 057 TURN SIGNAL LAMPFIG. 058 REAR LAMPFIG. 059 ROOM LAMPFIG. 060 ENGINE ROOM HARNESSFIG. 061 ENGINE HARNESS BRACKET (5MT)FIG. 062 ENGINE HARNESS BRACKET (4AT)FIG. 063 WIRING HARNESS REAR SIDEFIG. 064 BODY HARNESS(RHD)FIG. 065 ELECTRICAL CONTROL BODYFIG. 066 ELECTRICAL CONTROL INSTRUMENTAL PANELFIG. 067 LOCK SETFIG. 068 FRONTWINDOW WIPER(RHD)FIG. 069 WINDOW WASHER(W/LEDHL)FIG. 070 REAR WINDOW WIPERFIG. 071 AUDIO(W/DISPLAY AUDIO:9 INCH)

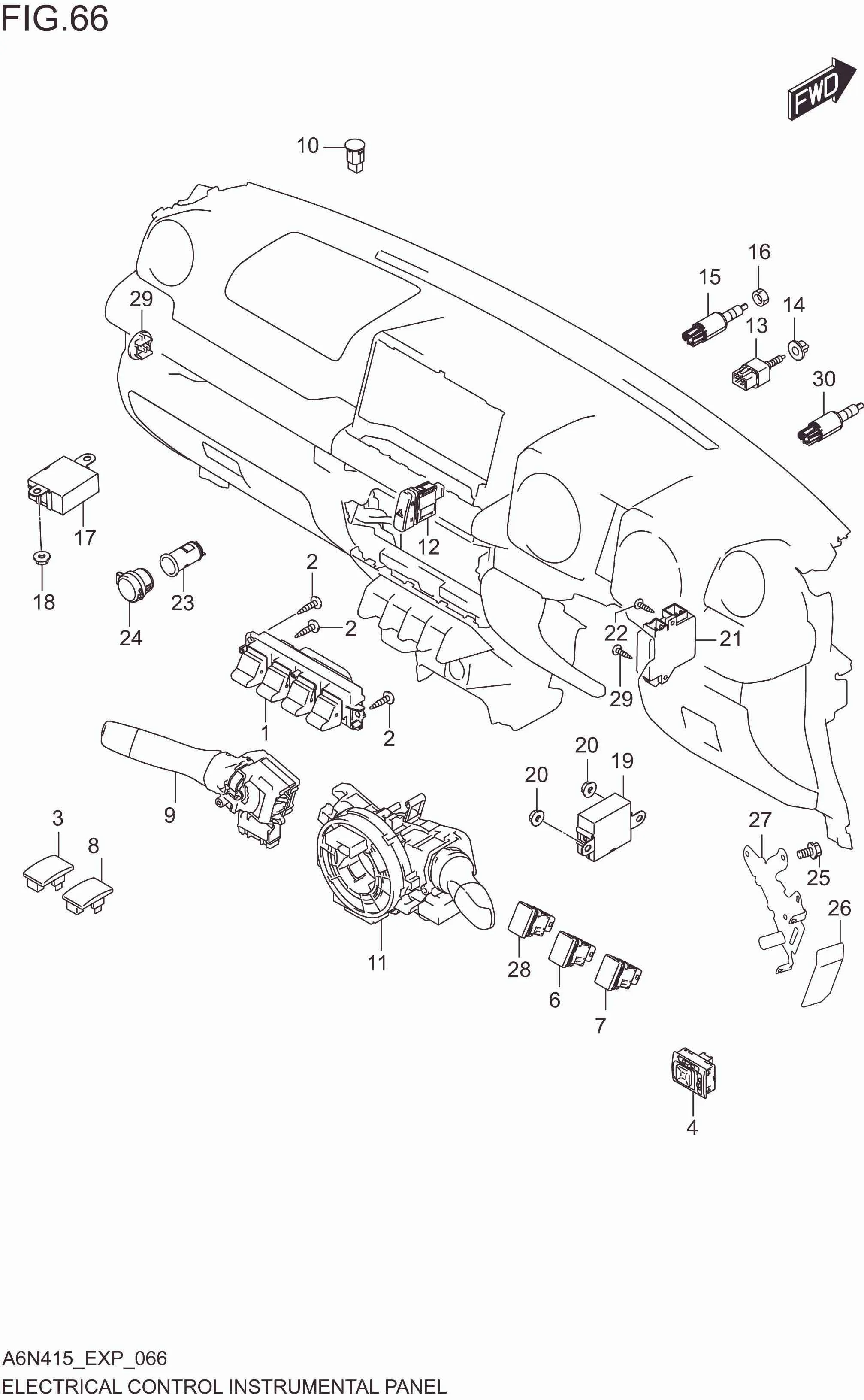

FIG. 066 ELECTRICAL CONTROL INSTRUMENTAL PANEL

FIG. 066 ELECTRICAL CONTROL INSTRUMENTAL PANEL
No No. Part Description Qty Price Per Pcs Remarks
1 37595M80T00-BJA SWITCH ASSY,MODE SELECT(BLACK/CHROME) 1 Rp1.434.000
2 03541-0516A-000 SCREW 3 Rp3.500
3 37285M66R00-000 CAP,SW HOLE 1 Rp5.500
4 37950M81R10-000 SWITCH ASSY,MIRROR 1 Rp125.500
5 09115-06009-000 BOLT (6X12) 3 Rp13.500
6 35180M69R00-000 SWITCH ASSY,HEAD LAMP LEVELING 1 Rp117.000
7 37930M66R00-000 SWITCH ASSY,HEADLAMP CLEANER 1 Rp86.000
8 37285M79G00-000 CAP,OPTION SW HOLE 2 Rp2.000
9 37310M68P21-000 SWITCH ASSY,WIPER & WASHER 1 Rp455.500
10 38680M56R00-000 SENSOR ASSY,AUTO LIGHT 1 Rp312.000
11 37410M55TB0-000 SET,CONTACT COIL & AUTO LIGHT 1 Rp2.180.000
12 37430M80T00-000 SWITCH ASSY,HAZARD WARNING 1 Rp111.000
13 37741M83K00-000 SWITCH ASSY,STOP LAMP 1 Rp88.500
14 37742M83K00-000 BUSH,STOP LAMP SW 1 Rp16.000
15 37970M74L02-000 SWITCH ASSY,CLUTCH 1 Rp165.500
16 09140-10043-000 NUT (10X6) 1 Rp14.500
17 3E130M80T00-000 CONTROLLER ASSY,AT 1 -
18 09159-08127-000 NUT,AT CONT 2 Rp11.000
19 38885M80T00-000 CONTROLLER ASSY,4WD SHIFT 1 Rp1.674.000
20 09159M08106-000 NUT 2 -
21 3C100M80TA0-000 CONTROLLER ASSY,EPS 1 Rp3.280.000
22 02142-0516A-000 SCREW 2 Rp3.500
23 39420M83P00-000 BODY,SOCKET 2 Rp102.000
24 39441M75J01-5PK COVER,SOCKE(BLACK) 2 Rp19.500
25 02162-0610A-000 BOLT,AT CONT 2 Rp5.000
26 3E131-77R00-000 COVER,AT CONT 1 Rp65.000
27 3E131M77R10-000 BRACKET,AT CONT 1 Rp45.000
28 37775M66R00-000 SWITCH ASSY,PARK SNSR 1 Rp120.000
29 38975M68P00-5PK CAP,A/B ON OFF SWITCH HOLE(BLACK) 1 Rp3.500
30 37970M71M02-000 SWITCH ASSY,CLUTCH START 1 Rp86.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
