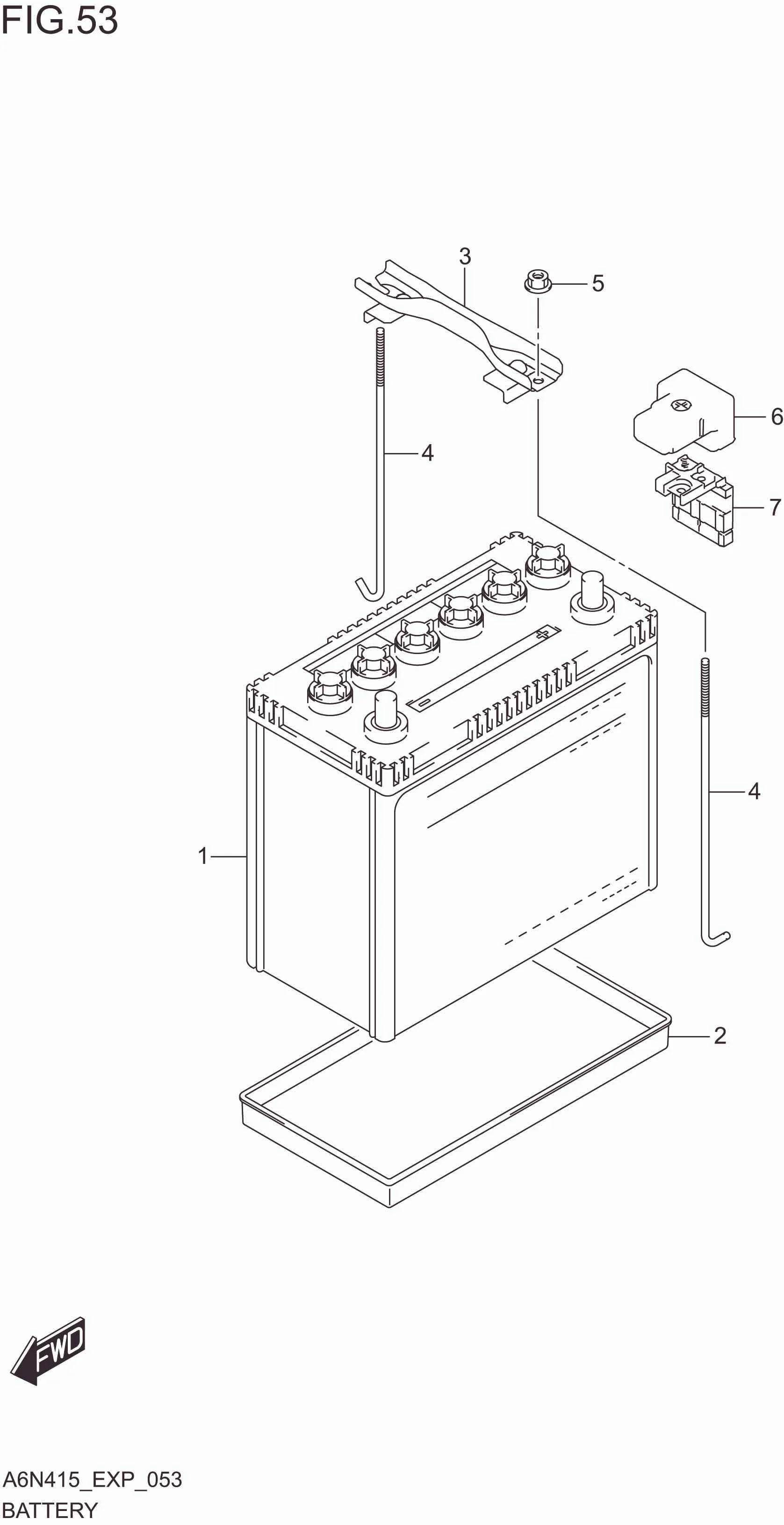

FIG. 053 BATTERY

FIG. 053 BATTERY
No No. Part Description Qty Price Per Pcs Remarks
1 - BATTERY (55B24L) 1 -
2 33660-73010-000 TRAY,BATTERY 1 Rp41.000
3 72510M80T00-000 BAND, BATTERY 1 Rp25.000
4 72521-78R00-000 BOLT,BATTERY 2 Rp40.500
5 08316-1006A-000 NUT (6X12) COVER, 2 Rp2.000
6 36694-75J00-000 BATTERY TERMINAL 1 Rp144.500
7 36739M66R00-000 FUSE,BATTERY 1 Rp338.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
