New Jimny 5 Doors

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 050 ENGINE ELECTRICALFIG. 051 STARTING MOTORFIG. 052 GENERATORFIG. 053 BATTERYFIG. 054 SPEEDOMETERFIG. 055 HEADLAMPFIG. 056 FRONT FOGLAMPFIG. 057 TURN SIGNAL LAMPFIG. 058 REAR LAMPFIG. 059 ROOM LAMPFIG. 060 ENGINE ROOM HARNESSFIG. 061 ENGINE HARNESS BRACKET (5MT)FIG. 062 ENGINE HARNESS BRACKET (4AT)FIG. 063 WIRING HARNESS REAR SIDEFIG. 064 BODY HARNESS(RHD)FIG. 065 ELECTRICAL CONTROL BODYFIG. 066 ELECTRICAL CONTROL INSTRUMENTAL PANELFIG. 067 LOCK SETFIG. 068 FRONTWINDOW WIPER(RHD)FIG. 069 WINDOW WASHER(W/LEDHL)FIG. 070 REAR WINDOW WIPERFIG. 071 AUDIO(W/DISPLAY AUDIO:9 INCH)

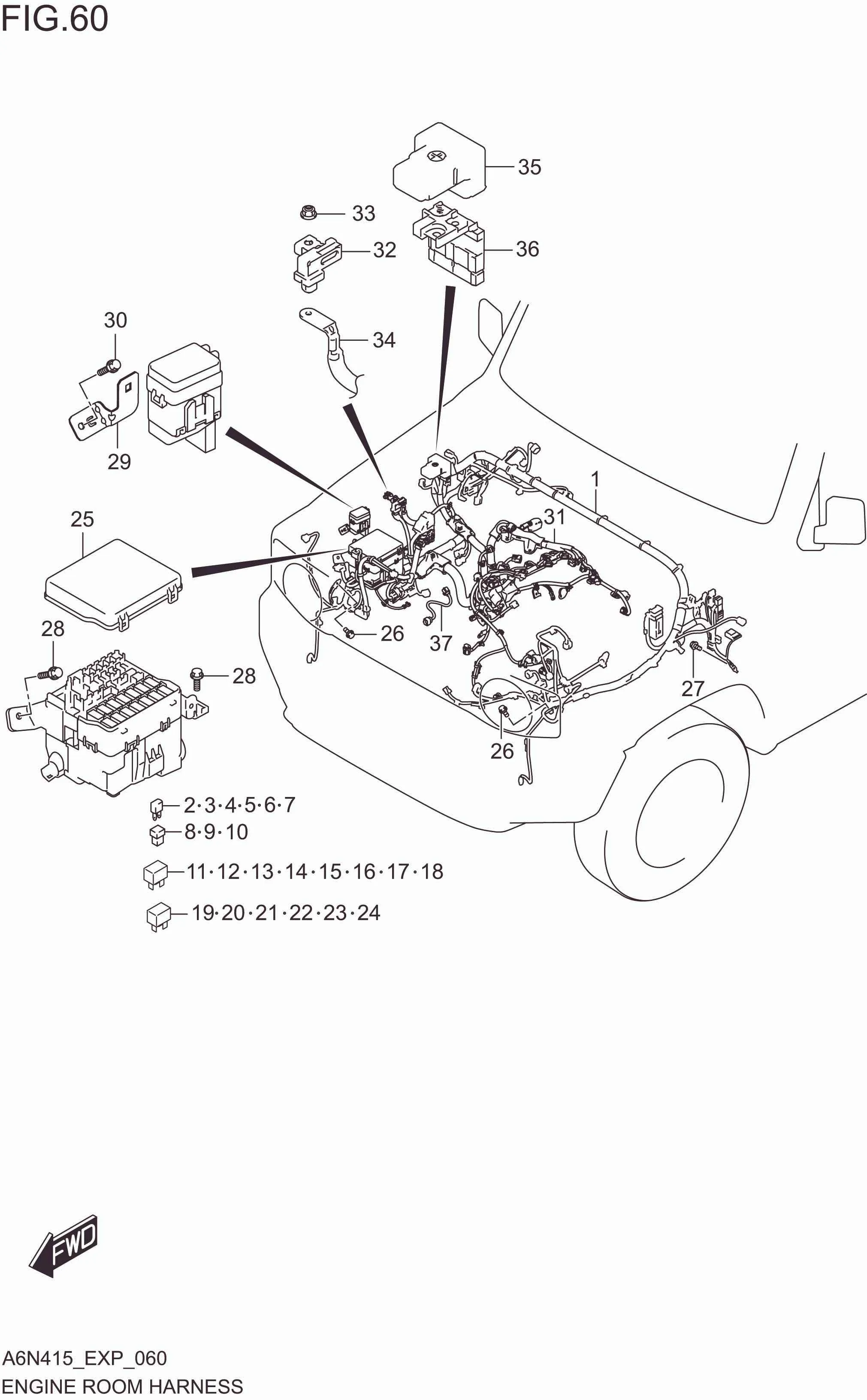

FIG. 060 ENGINE ROOM HARNESS

FIG. 060 ENGINE ROOM HARNESS
No No. Part Description Qty Price Per Pcs Remarks
1-2 36610M80T60-000 HARNESS ASSY,MAIN 1 Rp9.509.000
1-1 36610M80T40-000 HARNESS ASSY,MAIN 1 Rp10.407.500
2 09481-05501-000 .FUSE (5A) 0 Rp17.000
3 09481-10504-000 .FUSE (10A) 0 Rp12.500
4 09481-15504-000 .FUSE (15A) 0 Rp13.000
5 09481-20504-000 .FUSE (20A) 0 Rp14.500
6 09481-25504-000 .FUSE (25A) 0 Rp17.500
7 09481-30504-000 .FUSE (30A) 0 Rp15.000
8 09481-30403-000 .FUSE (30A) 0 Rp41.000
9 09481M40403-000 .FUSE (40A) 0 Rp22.500
10 09481-50403-000 .FUSE (50A) 0 Rp51.000
11 38860M76M00-000 .RELAY ASSY 1 Rp58.500
12 38860M76M00-000 .RELAY ASSY 1 Rp58.500
13 38860M76M00-000 .RELAY ASSY 1 Rp58.500
14 38860M76M00-000 .RELAY ASSY 1 Rp58.500
15 38860M76M00-000 .RELAY ASSY 1 Rp58.500
16 38860M76M00-000 .RELAY ASSY 1 Rp58.500
17 38860M76M00-000 .RELAY ASSY 1 Rp58.500
18 38860M76M00-000 .RELAY ASSY 1 Rp58.500
19 38860M76M00-000 .RELAY ASSY 1 Rp58.500
20 38860M76M00-000 .RELAY ASSY 1 Rp58.500
21 38860-78F00-000 RELAY ASSY 1 Rp274.000
22 38860M76M00-000 RELAY ASSY 1 Rp58.500
23 38860M76M00-000 RELAY ASSY 1 Rp58.500
24 38860M76M00-000 RELAY ASSY 1 Rp58.500
25 36717M80T10-000 COVER,RELAY BOX 1 Rp51.500
26 09115-06005-000 BOLT (6X16) 2 Rp14.000
27 09115-06005-000 BOLT (6X16) 2 Rp14.000
28 01551-0616C-000 BOLT,RELAY BOX 2 Rp14.500
29 36651-77R20-000 BRACKET,SUB RELAY BOX 1 Rp69.000
30 01551-0616C-000 BOLT,SUB RELAY BOX 1 Rp14.500
31-1 36950M80T00-000 HARNESS SET,ENG 1 Rp5.448.500
31-2 36950M80T10-000 HARNESS SET,ENG 1 Rp4.727.000
32 32810M68P00-000 .SENSOR ASSY,CURRENT 1 Rp464.000
33 33887-71L00-000 .NUT 1 Rp23.500
34-1 36650M80T00-000 .HARNESS ASSY,ENG 1 Rp4.903.000
34-2 36650M80T10-000 .HARNESS ASSY,ENG 1 Rp4.782.500
35 36694-75J00-000 ..COVER,BATTERY TERMINAL 1 Rp144.500
36 36739M66R00-000 ..FUSE,BATTERY 1 Rp338.500
37 33222M73T00-000 WIRE, CKP 1 Rp80.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
