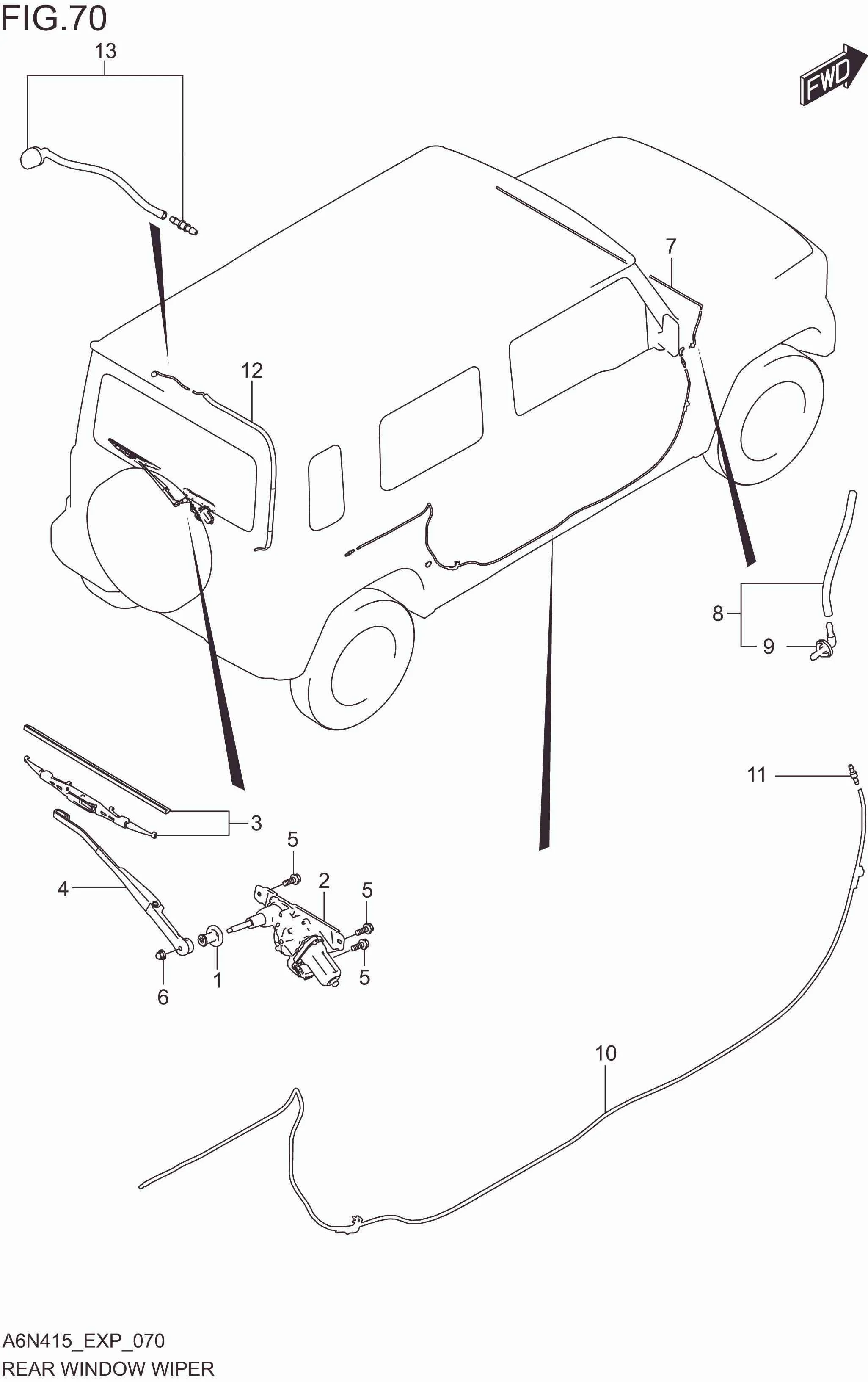

FIG. 070 REAR WINDOW WIPER

FIG. 070 REAR WINDOW WIPER
No No. Part Description Qty Price Per Pcs Remarks
1 38274M80T00-000 CAP,WIPER PIVOT 1 Rp13.000
2 38810M80T00-000 WIPER ASSY,RR WINDOW 1 Rp1.337.500
3 38821M80T00-000 ARM ASSY,RR WIPER 1 Rp403.000
4 38340M80T40-000 BLADE ASSY,WIPER 1 Rp351.500
5 09122-76001-000 SCREW,RR WIPER 3 Rp16.500
6 08313-2006A-000 NUT,RR WIPER ARM 1 Rp14.000
7 38834M80T00-000 HOSE ASSY,RR WASHER NO.1 1 Rp29.500
8 38834M80T10-000 HOSE ASSY,RR WASHER NO.2 1 Rp11.000
9 38496M80T00-000 .L-JOINT 1 Rp9.000
10 38834M80T20-000 HOSE ASSY,RR WASHER FLOOR 1 Rp56.500
11 38844M67P00-000 .I-JOINT 1 Rp6.500
12 38835M80T00-000 HOSE ASSY,RR WASHER BACK DOOR 1 Rp190.500
13 38840M80T00-000 NOZZLE ASSY,REAR WASHER 1 Rp43.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
