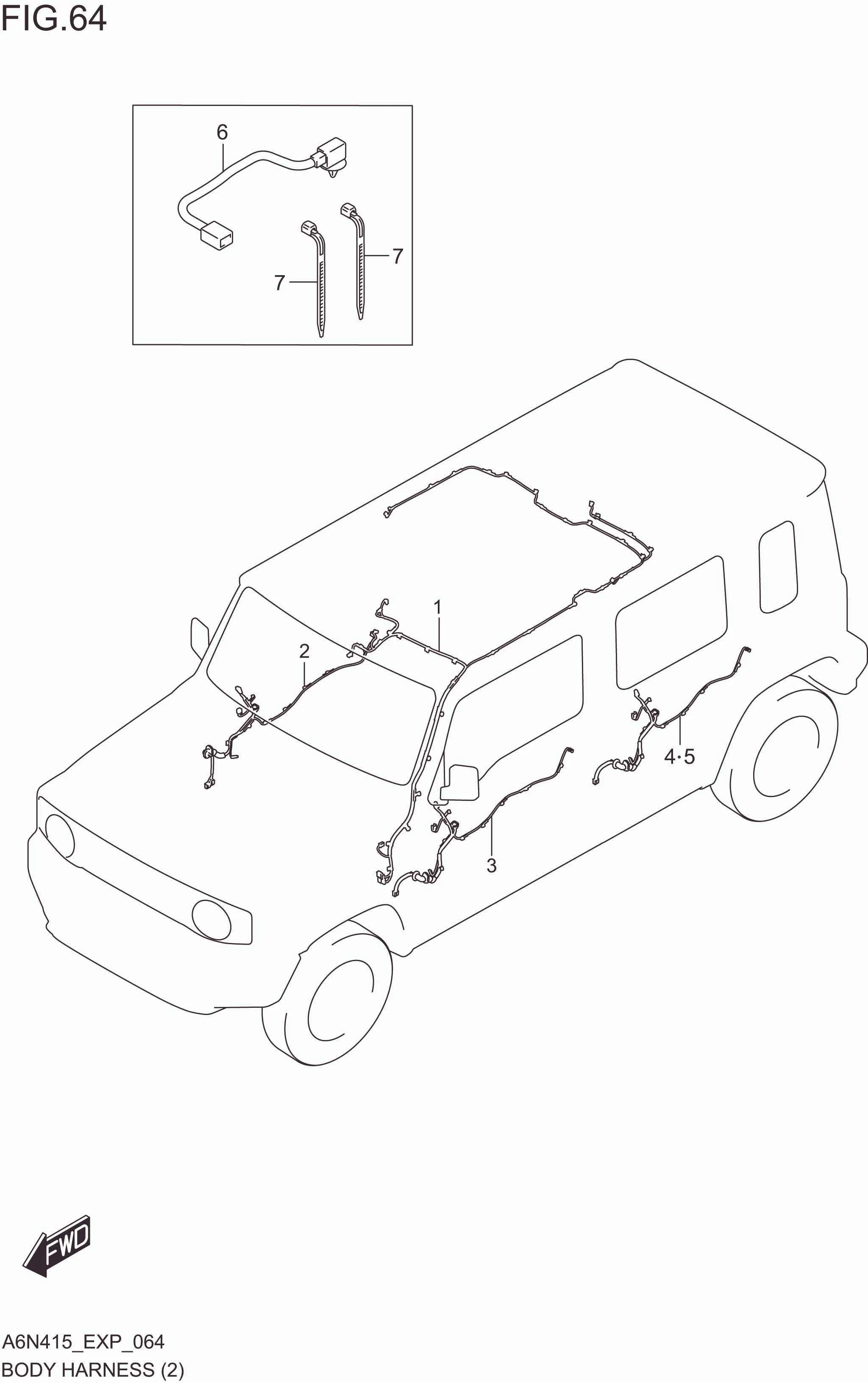

FIG. 064 BODY HARNESS(RHD)

FIG. 064 BODY HARNESS(RHD)
No No. Part Description Qty Price Per Pcs Remarks
1 36820M80T30-000 WIRE ,ROOF 1 Rp288.500
2 36756M80T30-000 WIRE ,FR DOOR DR 1 Rp352.500
3 36757M80T30-000 WIRE ,FR DOOR SUB 1 Rp258.500
4 36751M80T00-000 WIRE ,RR DOOR RH SIDE 1 Rp395.500
5 36751M80TA0-000 WIRE ,RR DOOR LH SIDE 1 Rp395.500
6 36691M80T00-000 WIRE,A/B 1 Rp80.000
7 09407-18402-000 CLAMP (L:165) 1 Rp8.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
