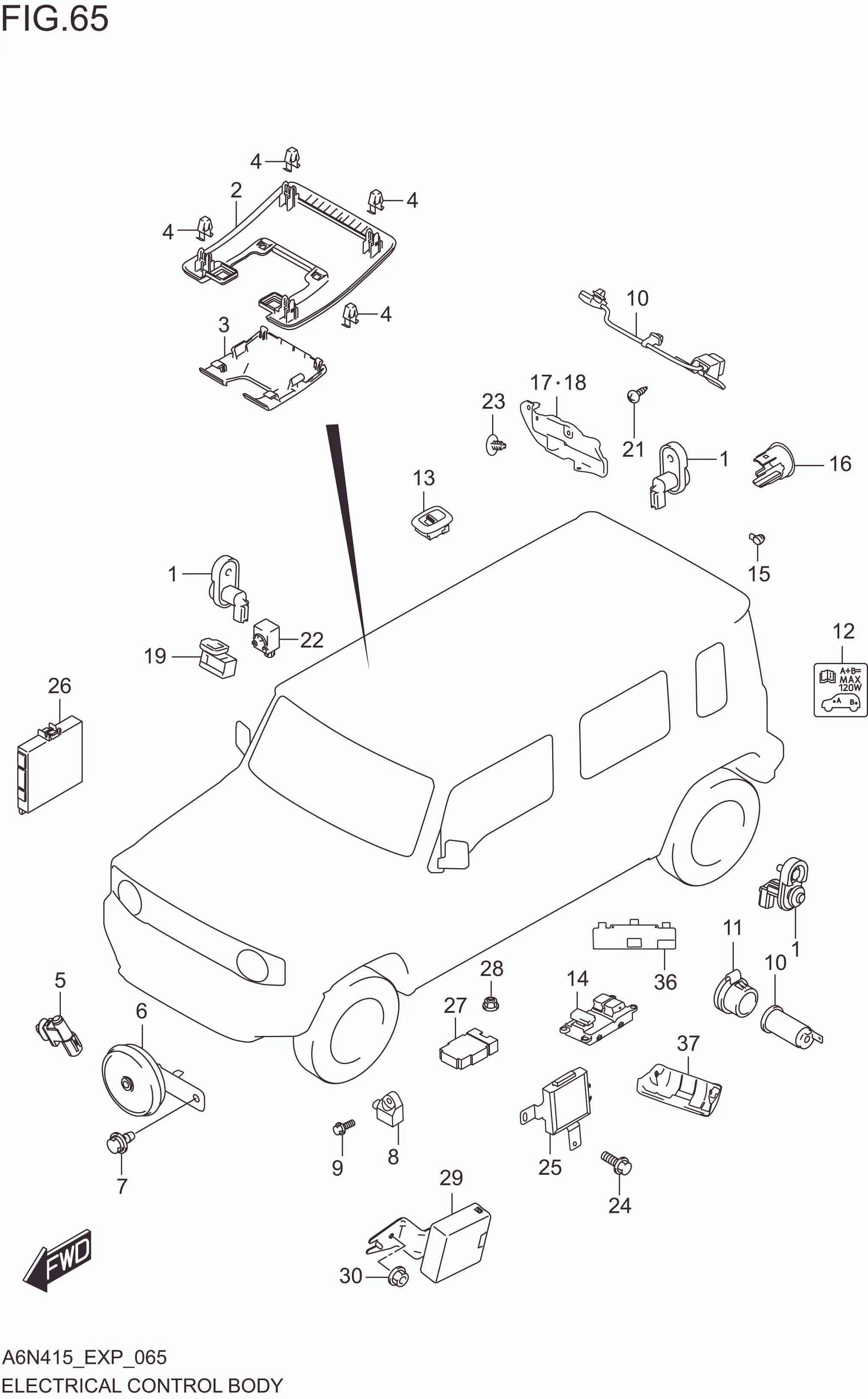

FIG. 065 ELECTRICAL CONTROL BODY

FIG. 065 ELECTRICAL CONTROL BODY
No No. Part Description Qty Price Per Pcs Remarks
1 37670M56R00-000 SWITCH ASSY,DOOR 5 Rp54.000
2 78171M80T10-6GS COVER,INSIDE REAR VIEW MIRROR(GRAY) 1 Rp21.500
3 78172M80T00-6GS CAP,INSIDE REAR VIEW MIRROR(GRAY) 1 Rp8.500
4 09409M08344-000 CLIP 4 Rp4.500
5 95643M67P00-000 SENSOR,OUTSIDE AIR TEMP 1 Rp189.000
6 38500M80T00-000 HORN ASSY,LOW PITCHED 1 Rp167.500
7 09115-08001-000 BOLT 1 Rp21.500
8 3F920M80T00-000 SENSOR ASSY,FORWARD 1 Rp353.500
9 02162-0620A-000 BOLT 1 Rp5.500
10 39420M83P00-000 BODY,SOCKET 2 Rp102.000
11 39441M75J01-5PK COVER,SOCKET(BLACK) 2 Rp19.500
12 39442M80T00-000 LABEL,ACC SOCKET 1 Rp3.500
13 37995-81M10-5PK SWITCH ASSY,POWER WINDOW SUB(BLACK) 2 Rp227.500
14 37995M80T00-000 SWITCH ASSY,POWER WINDOW SUB 1 Rp489.500
15 37735M76T00-000 SENSOR ASSY,PARK 4 Rp298.500
16 37737M80T00-000 BEZEL,PARK SNSR 4 Rp33.000
17 3F112M80T00-000 COVER,RR SENSOR,R 1 Rp29.000
18 3F113M80T00-000 COVER,RR SENSOR,L 1 Rp29.000
19 39813M55TA0-000 MIC ASSY,HANDS FREE 1 Rp295.500
20 3A760M80T00-000 CAMERA ASSY,BACK 1 Rp2.503.500
21 03541-0516A-000 SCREW,BACK CAMERA 2 Rp3.500
22 37734M56R00-000 BUZZER,PARK SNSR 1 Rp93.500
23 09409M07346-000 CLIP,SENSOR COVER 8 Rp5.500
24 02162-0612A-000 BOLT 2 Rp11.000
25 37730M80T20-000 CONTROLLER ASSY,PARK SNSR 1 Rp878.000
26 36775M80TK0-000 CONTROLLER ASSY,BODY ELEC 1 Rp3.249.500
27 3B140M80T00-000 CONTROLLER ASSY,GATEWAY 1 Rp1.600.000
28 08316-1006A-000 NUT,GATEWAY CONT 1 Rp2.000
29 38622-78R00-000 CONTROLLER ASSY,HLC 1 Rp2.943.500
30 DISCONTINUE
SUB: 09159-06108-000		 NUT,CONTROLLER CONTROLLER(BLACK) 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
