New Jimny 5 Doors

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 050 ENGINE ELECTRICALFIG. 051 STARTING MOTORFIG. 052 GENERATORFIG. 053 BATTERYFIG. 054 SPEEDOMETERFIG. 055 HEADLAMPFIG. 056 FRONT FOGLAMPFIG. 057 TURN SIGNAL LAMPFIG. 058 REAR LAMPFIG. 059 ROOM LAMPFIG. 060 ENGINE ROOM HARNESSFIG. 061 ENGINE HARNESS BRACKET (5MT)FIG. 062 ENGINE HARNESS BRACKET (4AT)FIG. 063 WIRING HARNESS REAR SIDEFIG. 064 BODY HARNESS(RHD)FIG. 065 ELECTRICAL CONTROL BODYFIG. 066 ELECTRICAL CONTROL INSTRUMENTAL PANELFIG. 067 LOCK SETFIG. 068 FRONTWINDOW WIPER(RHD)FIG. 069 WINDOW WASHER(W/LEDHL)FIG. 070 REAR WINDOW WIPERFIG. 071 AUDIO(W/DISPLAY AUDIO:9 INCH)

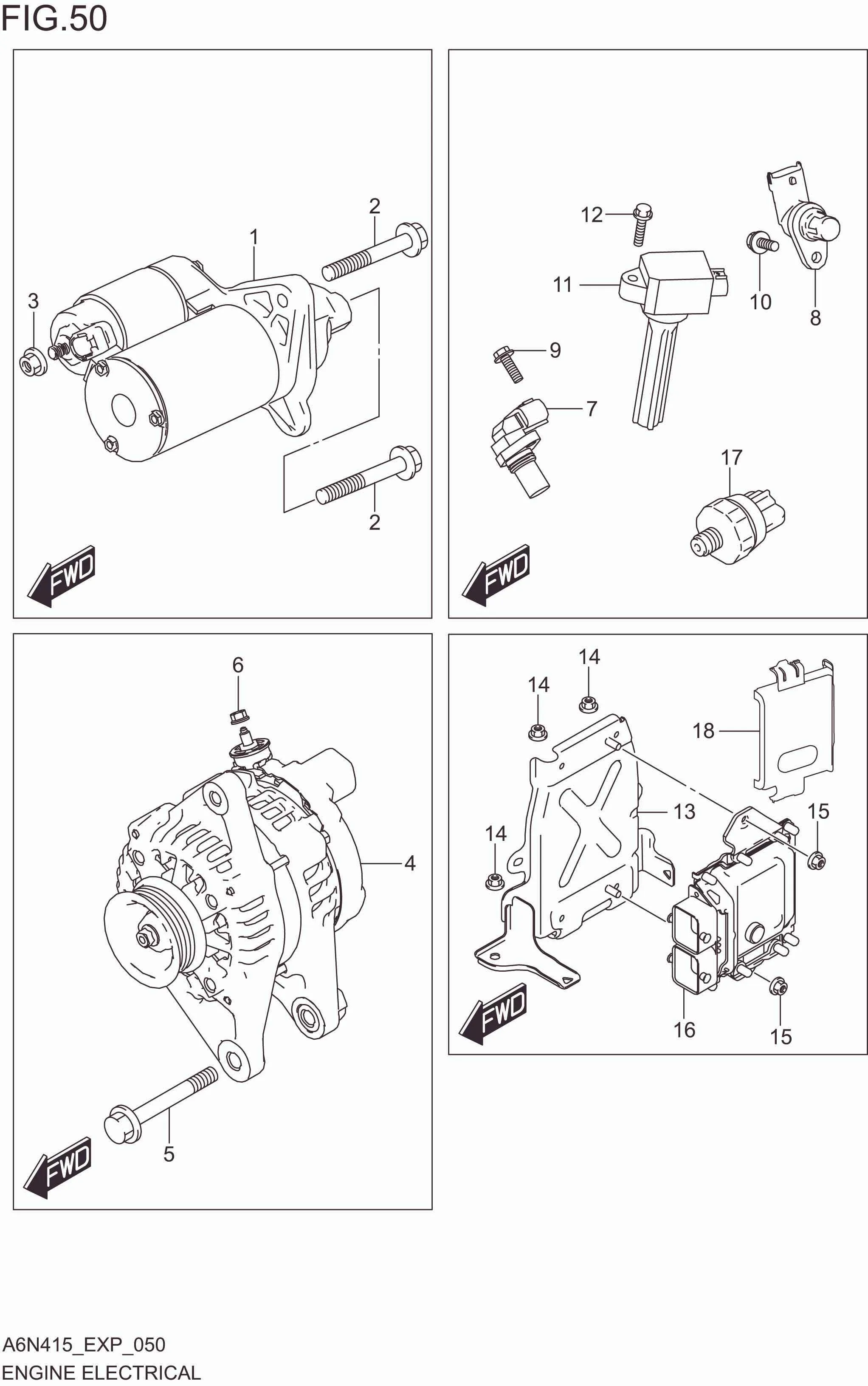

FIG. 050 ENGINE ELECTRICAL

FIG. 050 ENGINE ELECTRICAL
No No. Part Description Qty Price Per Pcs Remarks
1 31100M80T00-000 MOTOR ASSY,STARTING 1 -
2 01550-1060A-000 BOLT (10X60) 2 Rp5.500
3 08316-1008A-000 NUT 1 Rp3.500
4 31400M68P01-000 GENERATOR ASSY 1 Rp4.703.000
5 01550-1085A-000 BOLT (10X85) 1 Rp7.000
6 08316-1006A-000 NUT (6X12) 1 Rp2.000
7 33220M53M00-000 SENSOR ASSY,POSN 1 Rp883.500
8 33220M68P00-000 SENSOR ASSY,POSN 1 Rp505.500
9 09103M06317-000 BOLT (6X16) 1 Rp6.500
10 01550-0616A-000 BOLT (6X16) 1 Rp3.500
11 33400M81R00-000 COIL ASSY,IGNITION 4 Rp462.000
12 01560-0625B-000 BOLT (6X23) 4 Rp23.000
13 33924M80T00-000 BRACKET,EPI CONT 1 Rp73.000
14 09159M06112-000 NUT (M6) 3 Rp6.500
15 09159M06123-000 NUT (M6) 2 Rp1.500
16-1 33920M80T60-000 CONTROLLER ASSY,EPI 1 Rp3.097.000
16-2 33920M80T70-000 CONTROLLER ASSY,EPI 1 Rp3.097.000
17 37820M68K00-000 SWITCH ASSY,OIL PRESSURE 1 Rp199.500
18 33925M66R00-000 COVER,EPI CONT 1 Rp20.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
