New Jimny 5 Doors

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 050 ENGINE ELECTRICALFIG. 051 STARTING MOTORFIG. 052 GENERATORFIG. 053 BATTERYFIG. 054 SPEEDOMETERFIG. 055 HEADLAMPFIG. 056 FRONT FOGLAMPFIG. 057 TURN SIGNAL LAMPFIG. 058 REAR LAMPFIG. 059 ROOM LAMPFIG. 060 ENGINE ROOM HARNESSFIG. 061 ENGINE HARNESS BRACKET (5MT)FIG. 062 ENGINE HARNESS BRACKET (4AT)FIG. 063 WIRING HARNESS REAR SIDEFIG. 064 BODY HARNESS(RHD)FIG. 065 ELECTRICAL CONTROL BODYFIG. 066 ELECTRICAL CONTROL INSTRUMENTAL PANELFIG. 067 LOCK SETFIG. 068 FRONTWINDOW WIPER(RHD)FIG. 069 WINDOW WASHER(W/LEDHL)FIG. 070 REAR WINDOW WIPERFIG. 071 AUDIO(W/DISPLAY AUDIO:9 INCH)

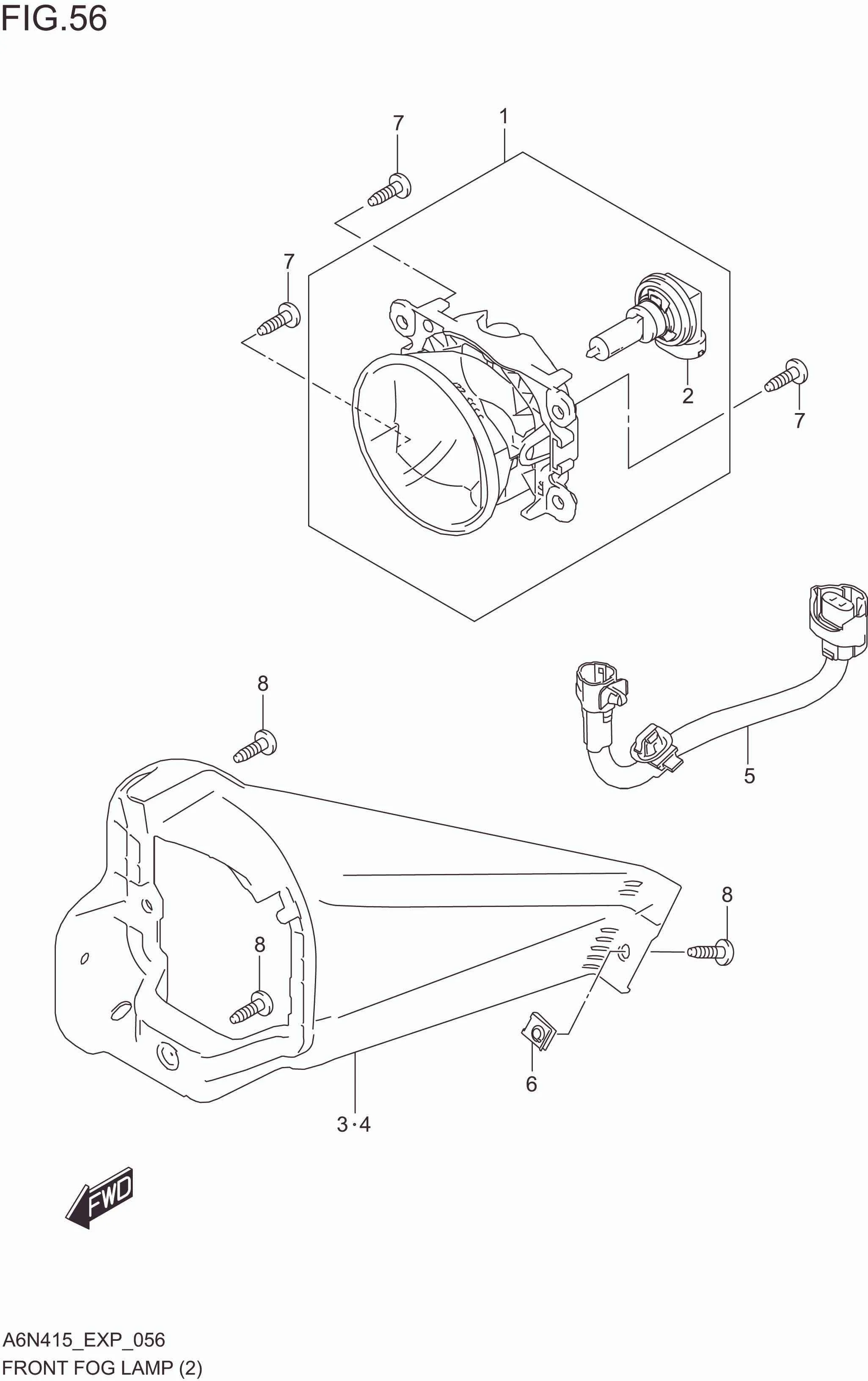

FIG. 056 FRONT FOGLAMP

FIG. 056 FRONT FOGLAMP
No No. Part Description Qty Price Per Pcs Remarks
1 35501M66R00-000 LAMP ASSY,FOG 2 Rp197.500
2 09471M12236-000 .BULB (12V19W) 2 Rp204.000
3 35526M73T00-000 BRACKET,FOG LAMP,RH 1 Rp27.000
4 35566M73T00-000 BRACKET,FOG LAMP,LH 1 Rp27.000
5 36813M73T00-000 WIRE,FRONT FOG LAMP 2 Rp148.500
6 09148-05075-000 NUT,FOG BRACKET 2 Rp14.000
7 03541-0516A-000 SCREW,FOG LAMP 6 Rp3.500
8 03541-0516A-000 SCREW,FOG BRACKET 6 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
