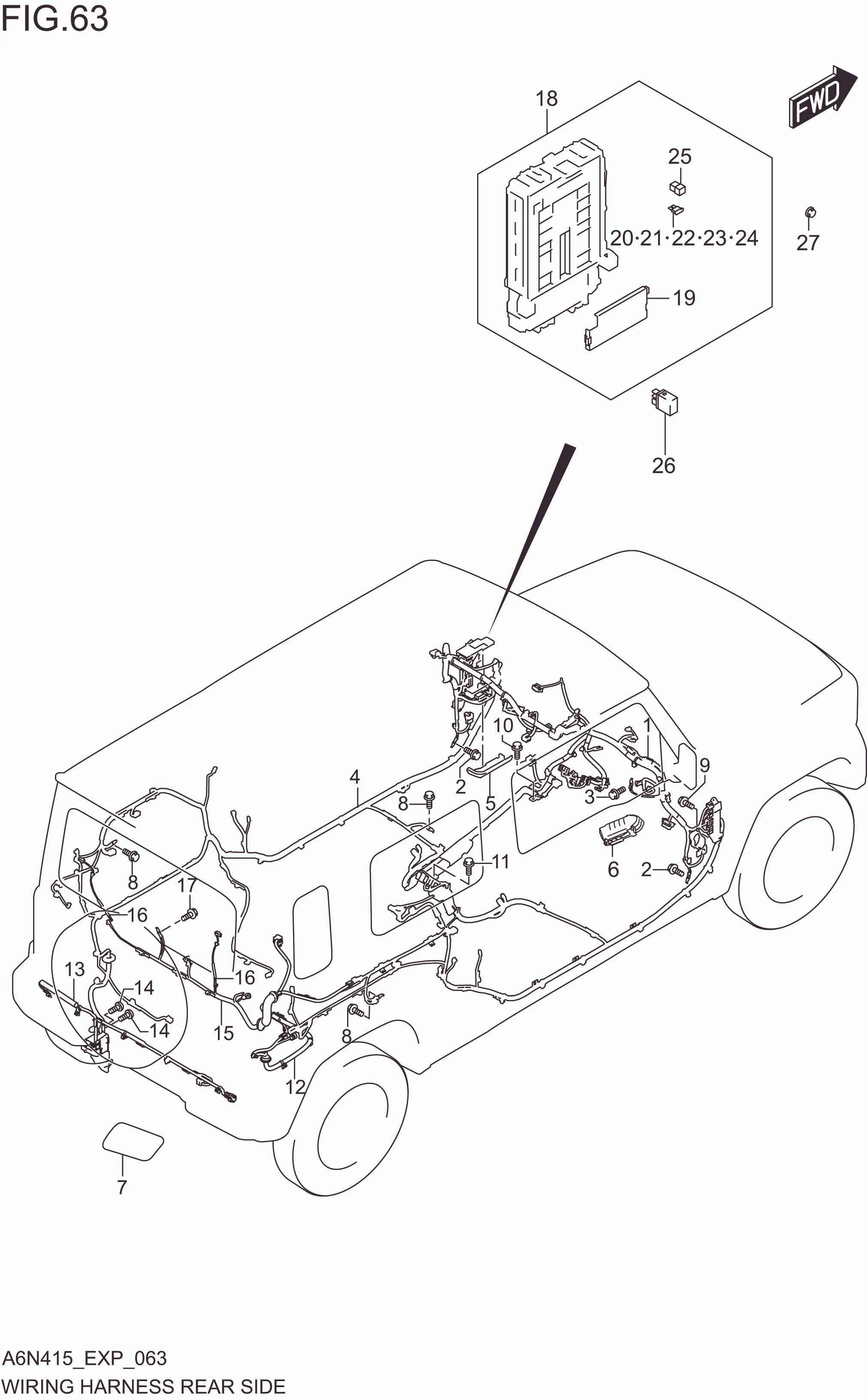

FIG. 063 WIRING HARNESS REAR SIDE

FIG. 063 WIRING HARNESS REAR SIDE
No No. Part Description Qty Price Per Pcs Remarks
1-2 36620M80TK0-000 HARNESS ASSY,I/P 1 Rp5.389.000
1-1 36620M80T60-000 HARNESS ASSY,I/P 1 Rp5.470.500
2 09115-06005-000 BOLT (6X16) 2 Rp14.000
3 02162-0612A-000 SCREW (6X12) 1 Rp11.000
4-2 36630M80T10-000 HARNESS ASSY,FLOOR 1 Rp5.337.000
5 36677M73T40-000 .PROTECTOR,FLOOR A/B 1 Rp110.000
6 36744M73T00-000 COVER,CONNECTOR HOLDER LH 1 Rp47.500
7 36930M70F10-000 COVER,FLOOR HARN RR BELT SW 1 Rp4.000
8 09115-06005-000 BOLT (6X16) 3 Rp14.000
9 01551-0616C-000 BOLT (6X16) 1 Rp14.500
10 02162-0612A-000 SCREW (6X12) 1 Rp11.000
11 02162-0612A-000 SCREW (6X12) 1 Rp11.000
12 36840M80T00-000 WIRE, FRAME 1 Rp344.000
13 36843M80T40-000 WIRE ,RR BUMPER 1 Rp529.000
14 03541-0516A-000 SCREW 2 Rp3.500
15 36680M80T00-000 HARNESS ASSY,BACK DOOR 1 Rp329.500
16 36890M73T00-000 WIRE ,RR DEF 2 Rp23.500
17 09115-06005-000 BOLT (6X16) 2 Rp14.000
18 36710M72S10-000 BOX ASSY,JUNCTION 1 Rp1.330.500
19 36699M50S10-000 .COVER,FUSE 1 Rp1.577.500
20 09481-05501-000 .FUSE (5A) 0 Rp17.000
21 09481-10504-000 .FUSE (10A) 0 Rp12.500
22 09481-15504-000 .FUSE (15A) 0 Rp13.000
23 09481-20504-000 .FUSE (20A) 0 Rp14.500
24 09481-25504-000 .FUSE (25A) 0 Rp17.500
25 09481-30403-000 .FUSE (30A) 0 Rp41.000
26 38860M76M00-000 RELAY ASSY 1 Rp58.500
27 09159-08127-000 NUT,J/B 2 Rp11.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
