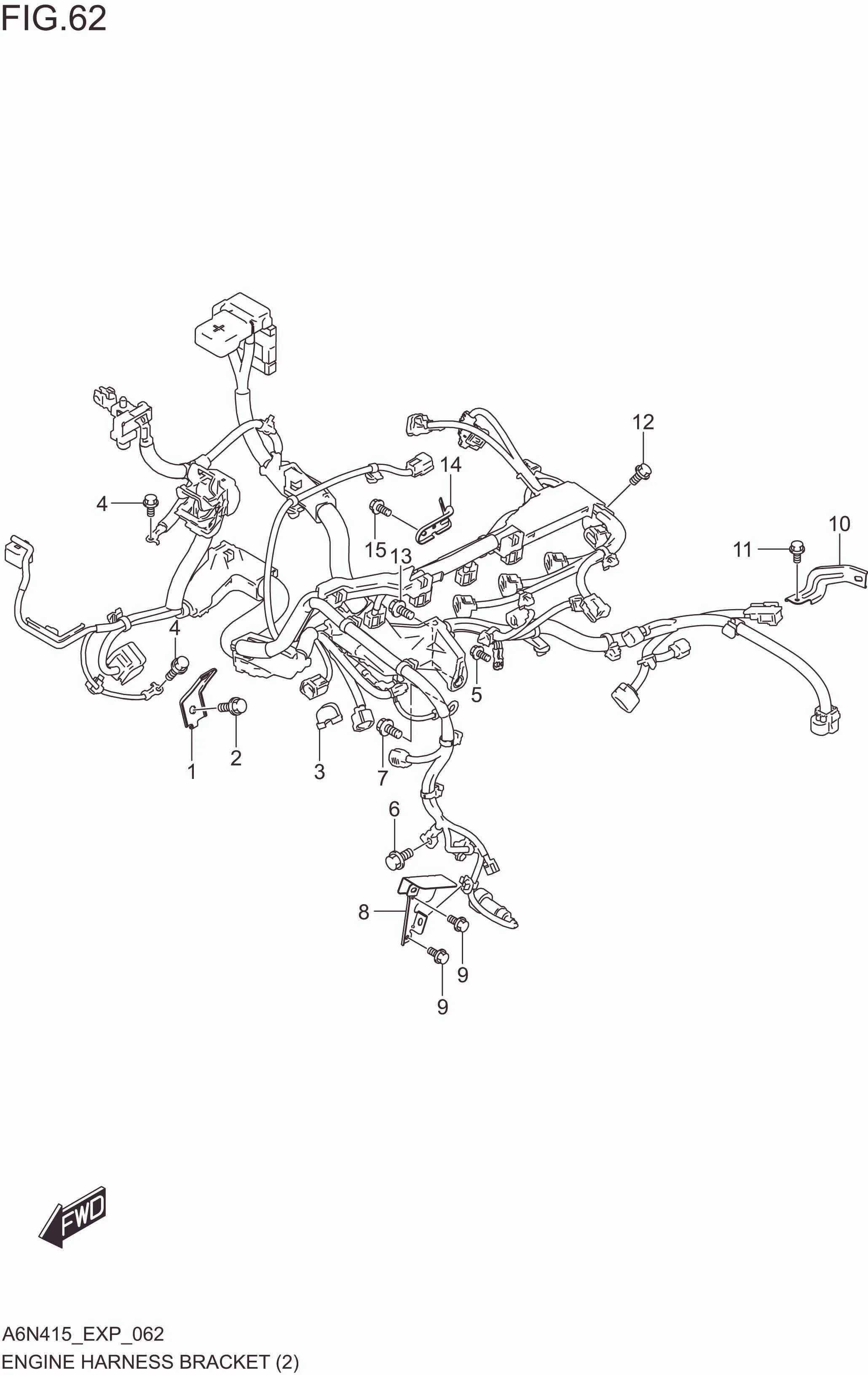

FIG. 062 ENGINE HARNESS BRACKET (4AT)

FIG. 062 ENGINE HARNESS BRACKET (4AT)
No No. Part Description Qty Price Per Pcs Remarks
1 36651-77R10-000 BRACKET,MAIN HARN AT 1 Rp82.000
2 01551-0616C-000 BOLT (6X16) 1 Rp14.500
3 36997M68P10-000 COVER,TERMINAL 1 Rp65.000
4 09115-06005-000 BOLT (6X16) 2 Rp14.000
5 01550M0612A-000 BOLT (6X12) 1 Rp5.000
6 01550-0816A-000 BOLT (8X16) 1 Rp6.000
7 01550-1016A-000 BOLT (10X16) 1 Rp5.500
8 36653-78R00-000 BRACKET,ENG HARN 1 Rp198.000
9 01550M0612A-000 BOLT (6X12) 2 Rp5.000
10 36653-78R10-000 BRACKET,ENG HARN AT 1 Rp80.000
11 01550M0612A-000 BOLT (6X12) 1 Rp5.000
12 01550M0612A-000 BOLT (6X12) 1 Rp5.000
13 01550M0612A-000 BOLT (6X12) 1 Rp5.000
14 33221-78R00-000 BRACKET,CKP SENSOR WIRE 1 Rp145.500
15 01550M0612A-000 BOLT (6X12) 1 Rp5.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
