New Jimny 5 Doors

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 050 ENGINE ELECTRICALFIG. 051 STARTING MOTORFIG. 052 GENERATORFIG. 053 BATTERYFIG. 054 SPEEDOMETERFIG. 055 HEADLAMPFIG. 056 FRONT FOGLAMPFIG. 057 TURN SIGNAL LAMPFIG. 058 REAR LAMPFIG. 059 ROOM LAMPFIG. 060 ENGINE ROOM HARNESSFIG. 061 ENGINE HARNESS BRACKET (5MT)FIG. 062 ENGINE HARNESS BRACKET (4AT)FIG. 063 WIRING HARNESS REAR SIDEFIG. 064 BODY HARNESS(RHD)FIG. 065 ELECTRICAL CONTROL BODYFIG. 066 ELECTRICAL CONTROL INSTRUMENTAL PANELFIG. 067 LOCK SETFIG. 068 FRONTWINDOW WIPER(RHD)FIG. 069 WINDOW WASHER(W/LEDHL)FIG. 070 REAR WINDOW WIPERFIG. 071 AUDIO(W/DISPLAY AUDIO:9 INCH)

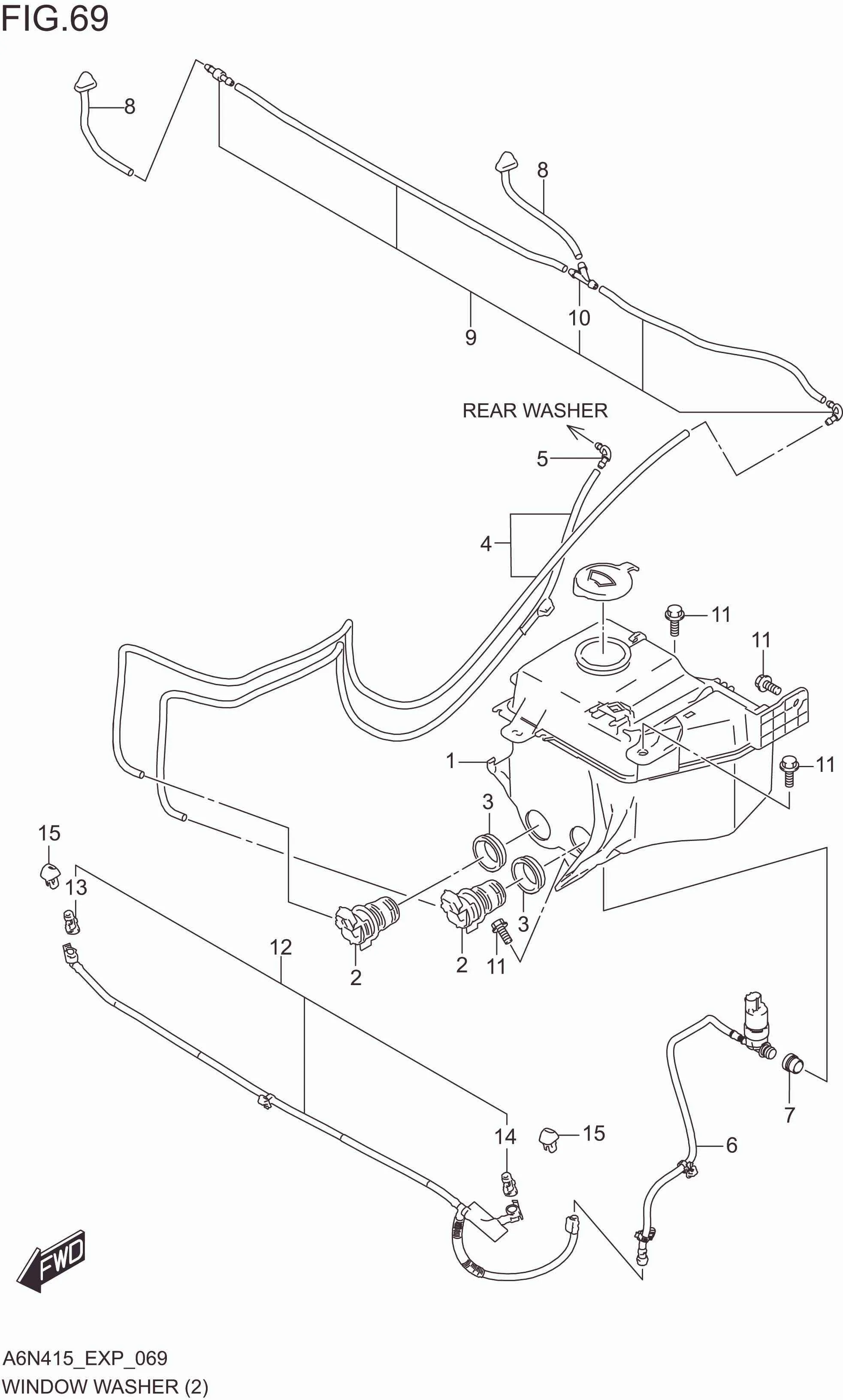

FIG. 069 WINDOW WASHER(W/LEDHL)

FIG. 069 WINDOW WASHER(W/LEDHL)
No No. Part Description Qty Price Per Pcs Remarks
1 38450M80T10-000 TANK SET WASHER 1 Rp92.500
2 38410M56R30-000 MOTOR ASSY 2 Rp159.000
3 38453M56R30-000 GROMMET 1 Rp6.500
4 38459M80T00-000 HOSE SET 1 Rp38.000
5 38491M72R00-000 JOINT 2 Rp2.000
6 39120-77R00-000 HOSE ASSY,HDLMP CLNR NO.1 1 Rp1.419.500
7 38453-77RA0-000 GROMMET,HLC PUMP 1 Rp99.000
8 38480M80T00-000 NOZZLE ,WASHER 2 Rp22.500
9 38832M80T00-000 HOSE ASSY,FR WASHER 1 Rp42.000
10 38491M65M00-000 .L-JOINT 1 Rp6.000
11 72435-74P00-000 BOLT,WASHER TANK 4 Rp18.500
12 39120-77R10-000 HOSE ASSY,HDLMP CLNR NO.2 1 Rp1.284.500
13 39151M77R10-000 .NOZZLE,RH 1 -
14 39152M77R10-000 .NOZZLE,LH 1 -
15 39153-77R00-000 CASE ASSY,HEADLAMP CLEANER 2 Rp114.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
