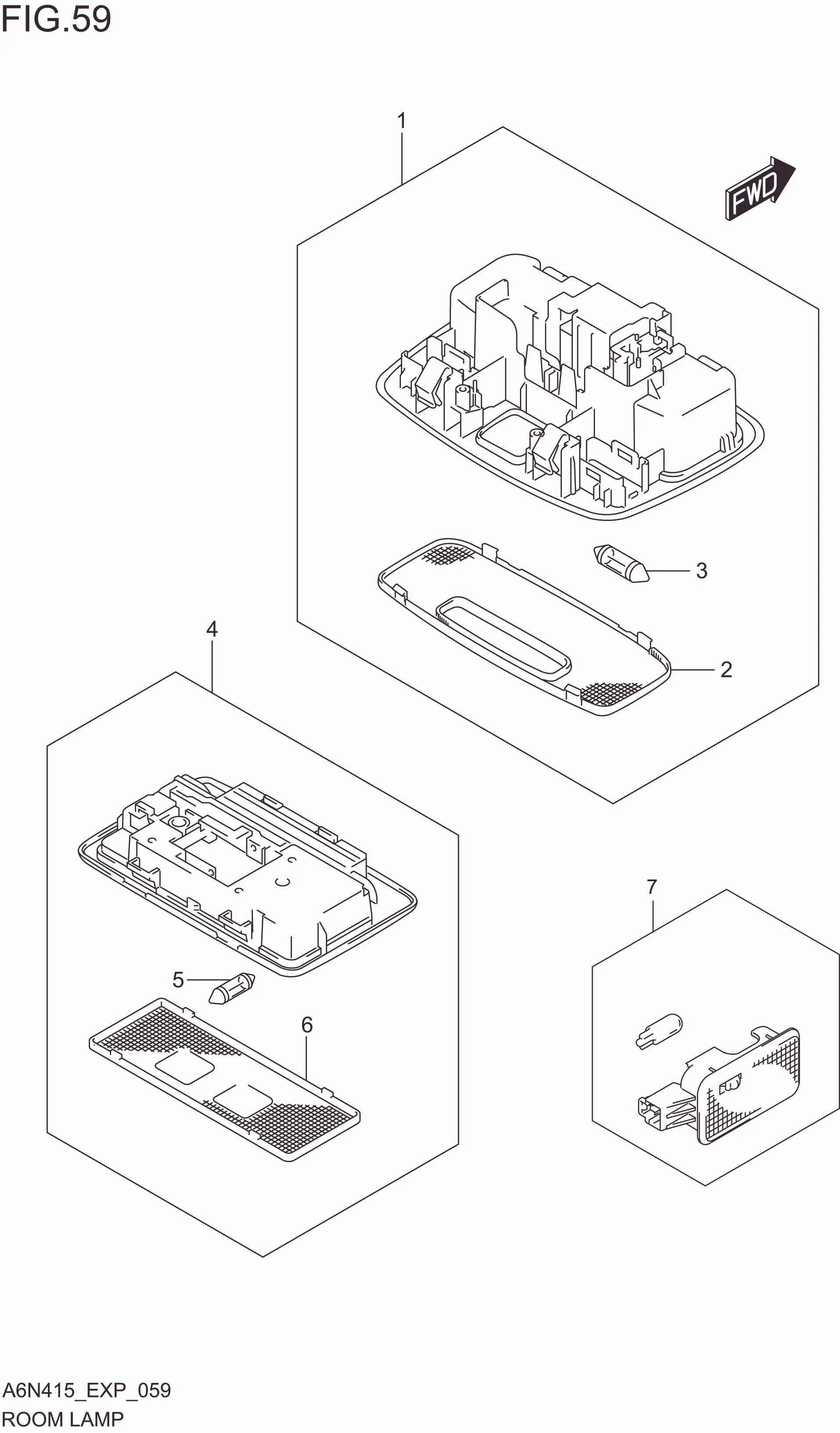

FIG. 059 ROOM LAMP

FIG. 059 ROOM LAMP
No No. Part Description Qty Price Per Pcs Remarks
1 36210M80T00-6GS LAMP ASSY,ROOM(GRAY) 1 Rp163.000
2 36212M66R00-000 .LENS 1 Rp26.500
3 09471M12181-000 .BULB (12V10W) 1 Rp52.500
4 36210M55K01-6GS LAMP ASSY,RR ROOM(GRAY) 1 Rp90.000
5 09471M12181-000 .BULB (12V8W) 1 Rp52.500
6 36214M55K00-000 .LENS 1 Rp23.500
7 36210M75JA0-000 LAMP ASSY,LUGGAGE ROOM 1 Rp62.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
