New Jimny 5 Doors

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 050 ENGINE ELECTRICALFIG. 051 STARTING MOTORFIG. 052 GENERATORFIG. 053 BATTERYFIG. 054 SPEEDOMETERFIG. 055 HEADLAMPFIG. 056 FRONT FOGLAMPFIG. 057 TURN SIGNAL LAMPFIG. 058 REAR LAMPFIG. 059 ROOM LAMPFIG. 060 ENGINE ROOM HARNESSFIG. 061 ENGINE HARNESS BRACKET (5MT)FIG. 062 ENGINE HARNESS BRACKET (4AT)FIG. 063 WIRING HARNESS REAR SIDEFIG. 064 BODY HARNESS(RHD)FIG. 065 ELECTRICAL CONTROL BODYFIG. 066 ELECTRICAL CONTROL INSTRUMENTAL PANELFIG. 067 LOCK SETFIG. 068 FRONTWINDOW WIPER(RHD)FIG. 069 WINDOW WASHER(W/LEDHL)FIG. 070 REAR WINDOW WIPERFIG. 071 AUDIO(W/DISPLAY AUDIO:9 INCH)

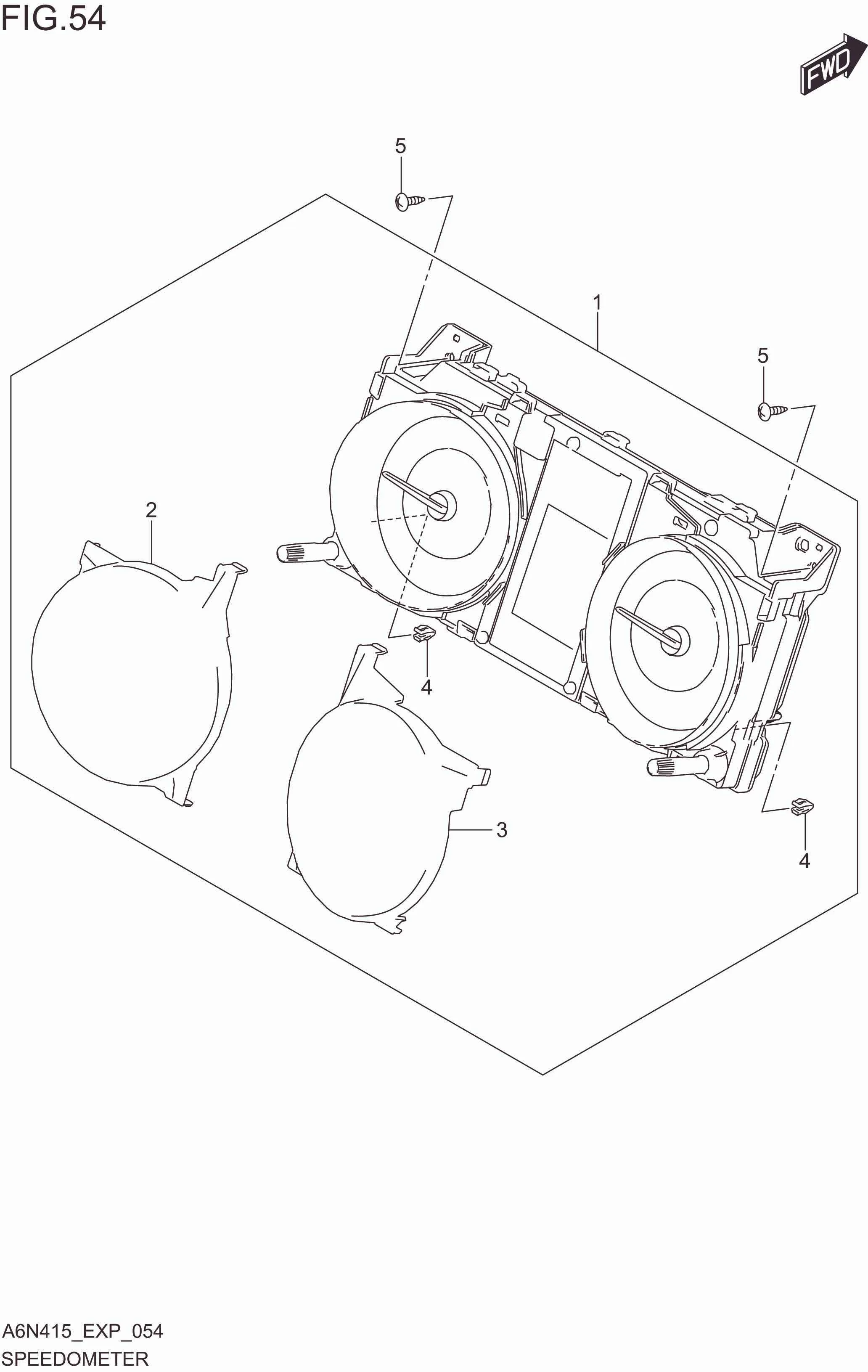

FIG. 054 SPEEDOMETER

FIG. 054 SPEEDOMETER
No No. Part Description Qty Price Per Pcs Remarks
1-1 34100M73TJ0-000 SPEEDOMETER ASSY,COMB 1 -
1-2 34101M73T00-000 SPEEDOMETER ASSY,COMB 1 -
2 34112-77R00-000 .GLASS,METER WINDOW L 1 Rp304.500
3 34112-77R10-000 .GLASS,METER WINDOW R 1 Rp304.500
4 09409-08351-000 .CLIP,SPEEDOMETER 2 Rp21.000
5 03541-0516A-000 SCREW,SPEEDOMETER 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
