GRANDESCUDO XL7 JA625W

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.57 FRONT SUSPENSIONFIG.58 FRONT STABILIZERFIG.59 FRONT SUSPENSION FRAMEFIG.60 FRONT WHEEL HUBFIG.61 REAR SUSPENSIONFIG.62 AXLE HOUSINGFIG.63 REAR AXLE AND BRAKE DRUMFIG.64 ROAD WHEEL AND TIREFIG.65 STEERING WHEELFIG.66 STEERING COLUMNFIG.67 STEERING UNITFIG.68 OIL PUMPFIG.69 PEDAL AND PEDAL BRACKETFIG.70 BRAKE MASTER CYLINDERFIG.71 BRAKE PIPINGFIG.72 ANTI LOCK BRAKE SYSTEMFIG.73 FRONT WHEEL BRAKEFIG.74 REAR WHEEL BRAKEFIG.75 PARKING BRAKE

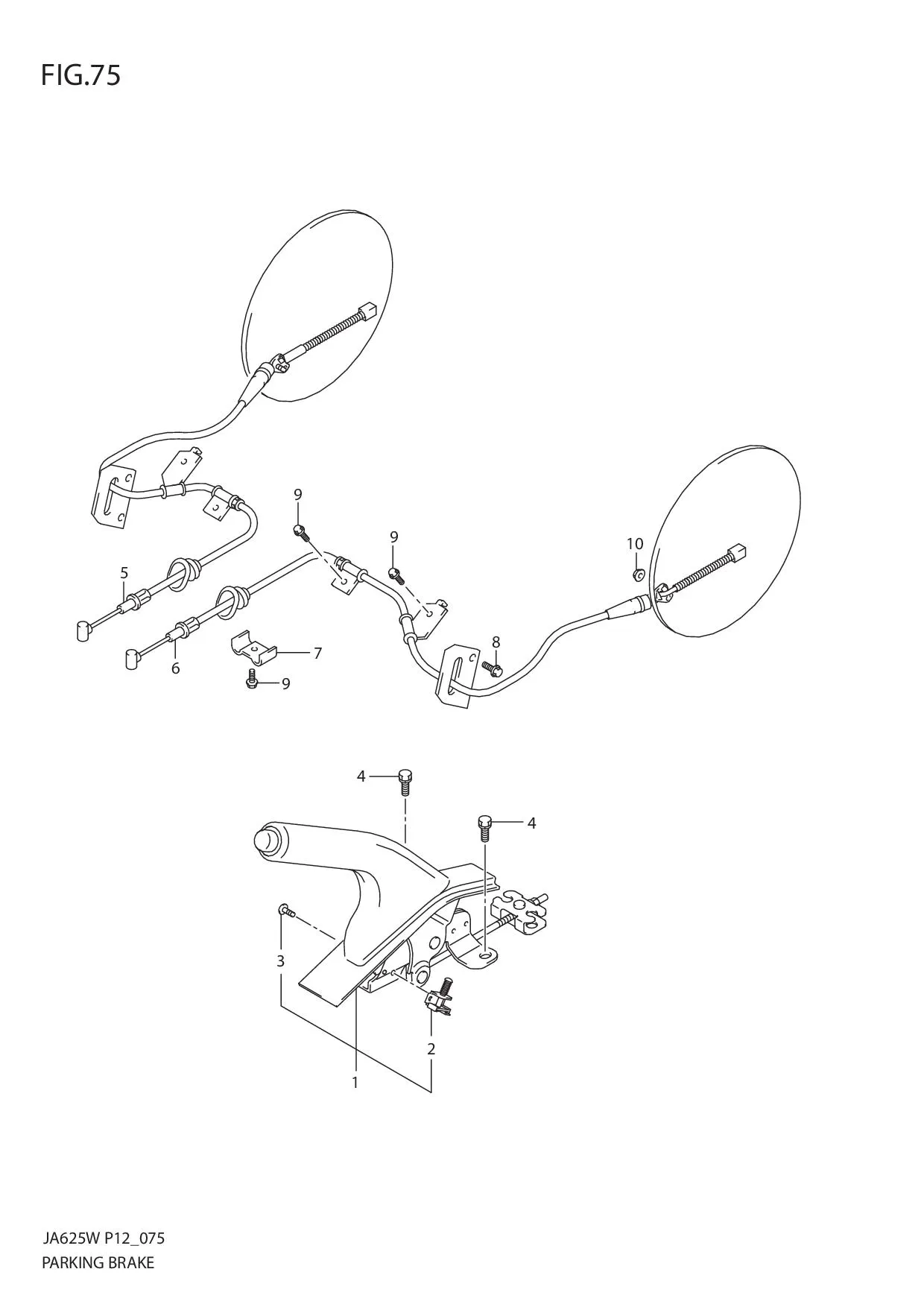

FIG.75 PARKING BRAKE

FIG.75 PARKING BRAKE
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 54100-50J00-000		 LEVER ASSY, PARKING BRAKE 1 -
2 37940-76G00-000
SUB: 37940B76G00N000		 •SWITCH ASSY, PARKING BK 1 Rp75.500
3 54115-76G00-000
SUB: 54115B76G00N000		 •SCREW 1 Rp16.000
4 01550-0816A-000
SUB: 01570M08163-000		 BOLT 3 Rp6.000
5 54410-52D01-000 CABLE, PARKING BRAKE RH 1 Rp1.099.000
6 54420-52D01-000 CABLE, PARKING BRAKE LH 1 Rp1.096.000
7 DISCONTINUE
SUB: 54431-56B00-000		 CLAMP, PARKING CABLE 2 -
8 DISCONTINUE
SUB: 09136-06134-000		 BOLT (6X16) 4 -
9 01550-0812A-000
SUB: 01550B08123N000		 BOLT 6 Rp3.500
10 08316-1006A-000
SUB: 08316-10063L000		 NUT 2 Rp2.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
