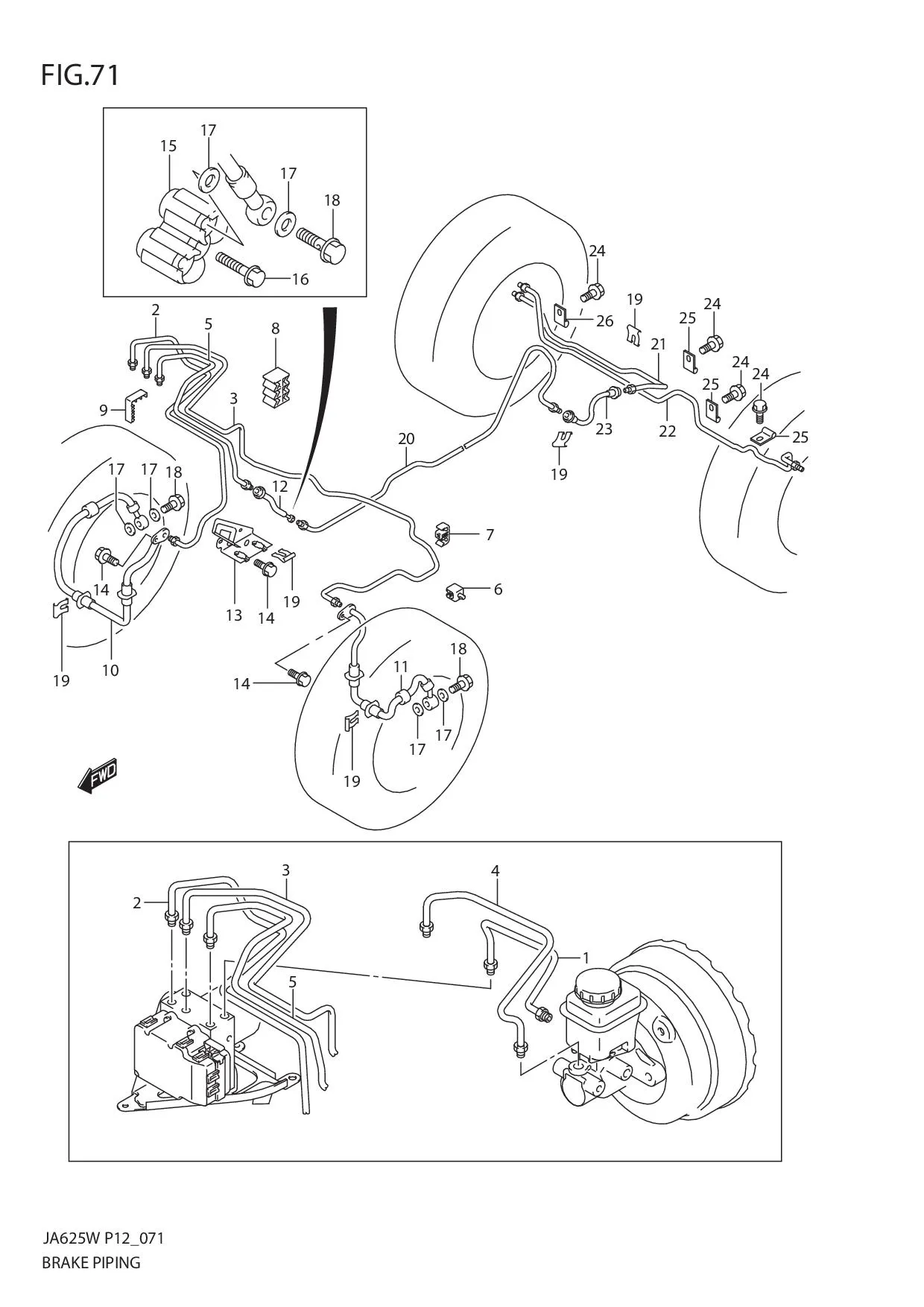

FIG.71 BRAKE PIPING

FIG.71 BRAKE PIPING
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 51310-52D20-000		 PIPE, MA PRI TO UNIT 1 -
2 DISCONTINUE
SUB: 51330-52D20-000		 PIPE, UNIT TO FR BK HOSE RH 1 -
3 DISCONTINUE
SUB: 51340-52D20-000		 PIPE, UNIT TO FR BK HOSE LH 1 -
4 DISCONTINUE
SUB: 51410-52D20-000		 PIPE, MA SEC TO UNIT 1 -
5 DISCONTINUE
SUB: 51430-52D20-000		 PIPE, UNIT TO JOINT 1 -
6 DISCONTINUE
SUB: 51435-60A00-000		 CLAMP, BRAKE PIPE SIDE 2 -
7 51751-75F00-000 CLAMP, BRAKE PIPE 3 Rp29.000
8 DISCONTINUE
SUB: 51753-60G00-000		 CLAMP, BK PIPE UNIT 1 -
9 DISCONTINUE
SUB: 51791-50G50-000		 CLAMP, BK PIPE ABS 1 -
10 51540-65D00-000 HOSE, FR BK FLEXIBLE RH 1 Rp1.001.500
11 51550-65D00-000 HOSE, FR BK FLEXIBLE LH 1 Rp1.001.500
12 51570-52D00-000 HOSE, BODY & FRAME 1 Rp494.000
13 DISCONTINUE
SUB: 51712-65D00-000		 BRACKET, BODY TO FRAME HOSE 1 -
14 02162-0616A-000
SUB: 02162-06163L000		 BOLT 4 Rp3.000
15 DISCONTINUE
SUB: 51610-65D00-000		 JOINT, BRAKE 2 WAY 1 -
16 01550-0630A-000
SUB: 01550-06303-000		 BOLT 1 Rp3.000
17 09161-10009-000 WASHER (10X15X1.5) 6 Rp12.500
18 09360-10026-000 UNION BOLT 3 Rp25.000
19 09383M13004-000
SUB: 09383-13003-000		 E RING 7 Rp7.000
20 DISCONTINUE
SUB: 51510-52D10-000		 PIPE, JOINT TO RR BK HOSE 1 -
21 DISCONTINUE
SUB: 51525-52D00-000		 PIPE, RR BK HOSE TO RH BK 1 -
22 DISCONTINUE
SUB: 51530-52D00-000		 PIPE, RH BK TO LH BK 1 -
23 51560-65D00-000 HOSE, RR BRAKE FLEXIBLE 1 Rp314.500
24 09132-06006-000 SCREW (6X12) 4 Rp18.000
25 09403-06401-000 CLAMP 3 Rp16.500
26 DISCONTINUE
SUB: 09403-06404-000		 CLAMP 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
