GRANDESCUDO XL7 JA625W

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.57 FRONT SUSPENSIONFIG.58 FRONT STABILIZERFIG.59 FRONT SUSPENSION FRAMEFIG.60 FRONT WHEEL HUBFIG.61 REAR SUSPENSIONFIG.62 AXLE HOUSINGFIG.63 REAR AXLE AND BRAKE DRUMFIG.64 ROAD WHEEL AND TIREFIG.65 STEERING WHEELFIG.66 STEERING COLUMNFIG.67 STEERING UNITFIG.68 OIL PUMPFIG.69 PEDAL AND PEDAL BRACKETFIG.70 BRAKE MASTER CYLINDERFIG.71 BRAKE PIPINGFIG.72 ANTI LOCK BRAKE SYSTEMFIG.73 FRONT WHEEL BRAKEFIG.74 REAR WHEEL BRAKEFIG.75 PARKING BRAKE

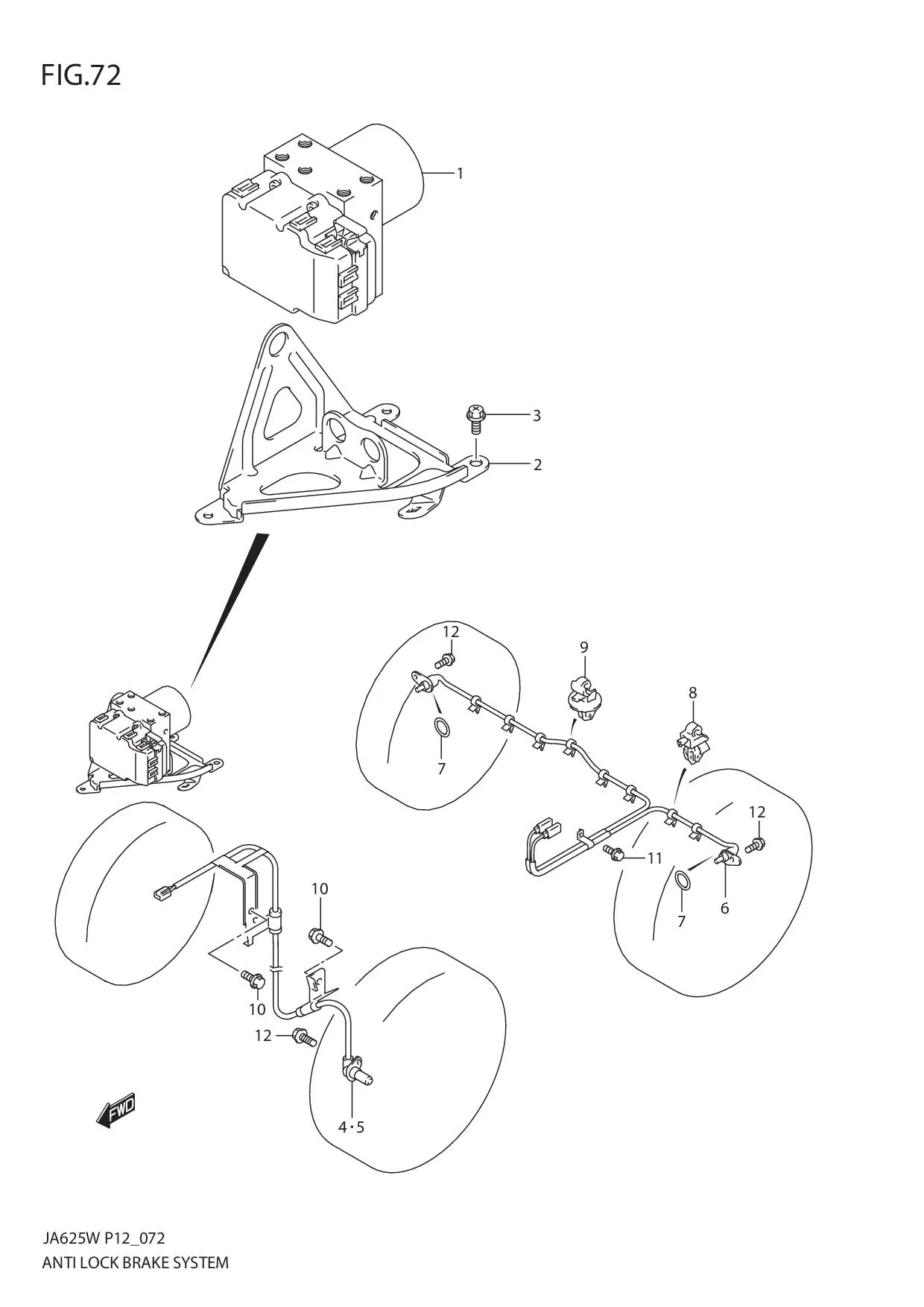

FIG.72 ANTI LOCK BRAKE SYSTEM

FIG.72 ANTI LOCK BRAKE SYSTEM
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 56100-52D10-000		 ACTUATOR ASSY, ABS 1 -
2 DISCONTINUE
SUB: 56160-52D00-000		 BRACKET, ACTUATOR 1 -
3 02162-0612B-000
SUB: 02162-06123-000		 SCREW 3 Rp16.000
4 56210-52D00-000 SENSOR, FR WHEEL RH 1 Rp2.228.000
5 56220-52D00-000 SENSOR, FR WHEEL LH 1 Rp2.453.500
6 56310-52D00-000 SENSOR, RR WHEEL 1 Rp2.775.000
7 DISCONTINUE
SUB: 51399-65D00-000		 •O RING, RR WHEEL SENSOR 2 -
8 DISCONTINUE
SUB: 51398-65D00-000		 •CLAMP, RR WHEEL SENSOR 5 -
9 DISCONTINUE
SUB: 56298-81A00-000		 •CLAMP, RR WHEEL SENSOR 5 -
10 02162-0616A-000
SUB: 02162-06163L000		 SCREW 4 Rp3.000
11 02162-0612B-000
SUB: 02162-06123-000		 BOLT 1 Rp16.000
12 01550-0812A-000
SUB: 01550B08123N000		 BOLT 4 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
