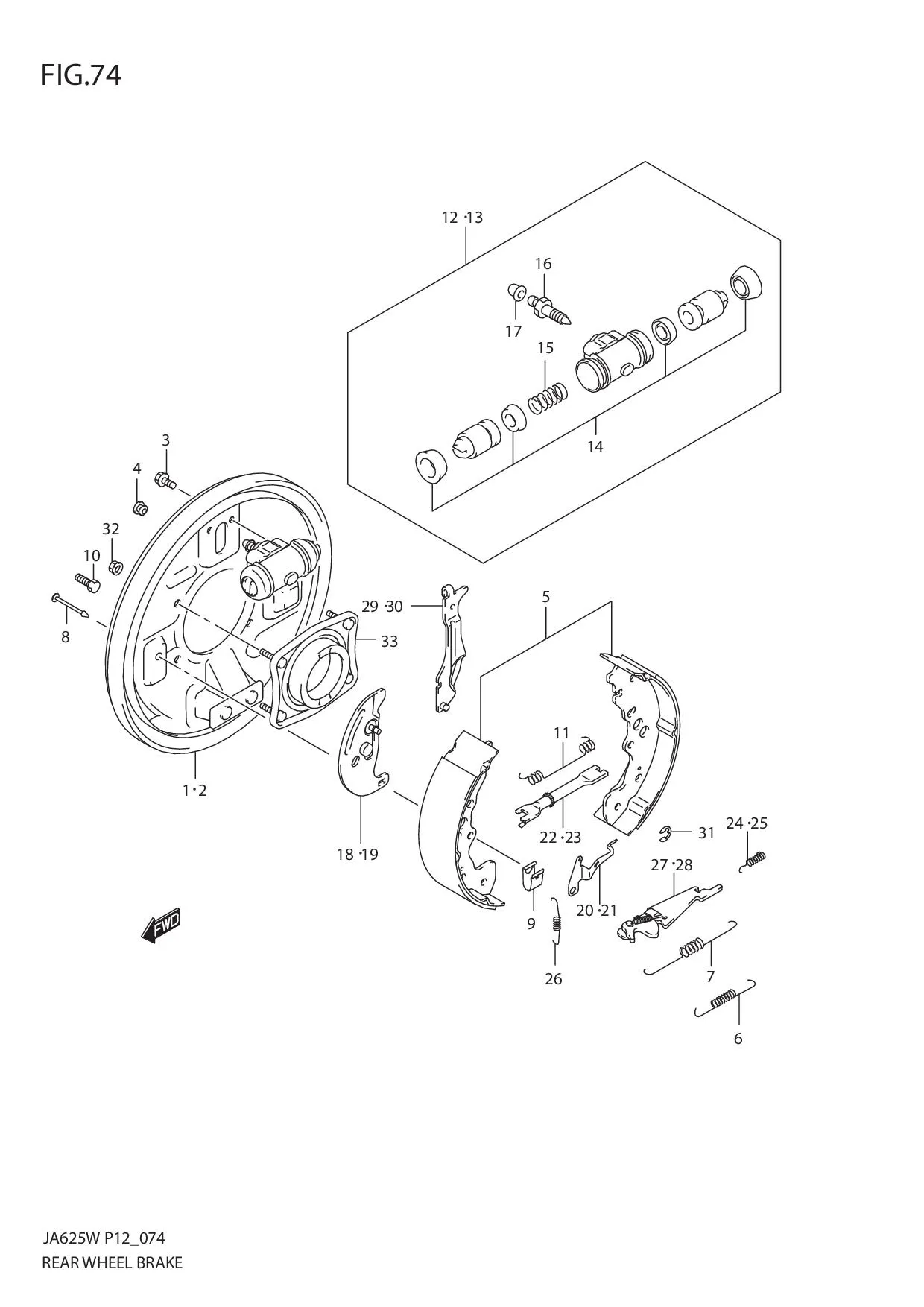

FIG.74 REAR WHEEL BRAKE

FIG.74 REAR WHEEL BRAKE
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 53110-52D00-000		 PLATE ASSY, BACKING RH 1 -
2 DISCONTINUE
SUB: 53120-52D00-000		 PLATE ASSY, BACKING LH 1 -
3 DISCONTINUE
SUB: 53131-52D00-000		 BOLT 4 -
4 53141-65D00-000 PLUG, BACKING PLATE 2 Rp16.000
5 53200-52D23-000 SHOE SET, BRAKE 1 Rp1.590.000
6 53231-56B00-000 SPRING, SHOE RETURN LOWER NO.2 2 Rp62.000
7 53232-52D00-000 SPRING, SHOE RETURN LOWER 2 Rp96.500
8 53241-52D00-000 PIN, SHOE HOLD DOWN 4 Rp49.000
9 53243-65D00-000 SPRING, SHOE HOLD DOWN 4 Rp44.000
10 DISCONTINUE
SUB: 53247-52D00-000		 BOLT, SERRATION 2 -
11 53331-65D00-000 SPRING, SHOE RETURN UPPER 2 Rp64.000
12 53401-65D00-000 CYLINDER ASSY, RR WHEEL RH 1 Rp810.000
13 53402-65D01-000
SUB: 53402-65D00-000		 CYLINDER ASSY, RR WHEEL LH 1 Rp776.500
14 53400-60830-000 •PISTON CUP/BOOT SET 2 Rp170.500
15 53441-56B00-000 •SPRING,.WHEEL CYLINDER 2 Rp102.500
16 55473-82031-000 •PLUG, BLEEDER LH (M7X1.0) 1 Rp54.500
17 55156M66310-000 •CAP, BLEEDER PLUG LH 1 Rp23.500
18 53711-52D00-000 LINK ASSY, RH 1 Rp392.000
19 DISCONTINUE
SUB: 53712-52D00-000		 LINK ASSY, LH 1 -
20 53781-52D00-000 LEVER, PARKING ADJUSTER RH 1 Rp111.000
21 53782-52D00-000 LEVER, PARKING ADJUSTER LH 1 Rp101.500
22 53810-65D00-000 ADJUSTER ASSY, RH 1 Rp332.500
23 53850-65D00-000 ADJUSTER ASSY, LH 1 Rp332.500
24 53791-52D00-000 SPRING, ANTIRATTLE RH 1 Rp42.000
25 53792-52D00-000 SPRING, ANTIRATTLE LH 1 Rp44.000
26 53824-65D00-000 SPRING, ADJUSTER 2 Rp37.500
27 53830-65D00-000 STRUT ASSY, RH 1 Rp584.500
28 53840-65D00-000 STRUT ASSY, LH 1 Rp584.500
29 DISCONTINUE
SUB: 53720-52D00-000		 LEVER, PARKING SHOE RH 1 -
30 DISCONTINUE
SUB: 53730-52D00-000		 LEVER, PARKING SHOE LH 1 -
31 53753-82030-000 E RING, PARKING LEVER 2 Rp11.000
32 09159-10091-000 NUT 8 Rp26.500
33 DISCONTINUE
SUB: 53820-52D00-000		 RETAINER, RR WHEEL OUTER 2 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
