GRANDESCUDO XL7 JA625W

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.57 FRONT SUSPENSIONFIG.58 FRONT STABILIZERFIG.59 FRONT SUSPENSION FRAMEFIG.60 FRONT WHEEL HUBFIG.61 REAR SUSPENSIONFIG.62 AXLE HOUSINGFIG.63 REAR AXLE AND BRAKE DRUMFIG.64 ROAD WHEEL AND TIREFIG.65 STEERING WHEELFIG.66 STEERING COLUMNFIG.67 STEERING UNITFIG.68 OIL PUMPFIG.69 PEDAL AND PEDAL BRACKETFIG.70 BRAKE MASTER CYLINDERFIG.71 BRAKE PIPINGFIG.72 ANTI LOCK BRAKE SYSTEMFIG.73 FRONT WHEEL BRAKEFIG.74 REAR WHEEL BRAKEFIG.75 PARKING BRAKE

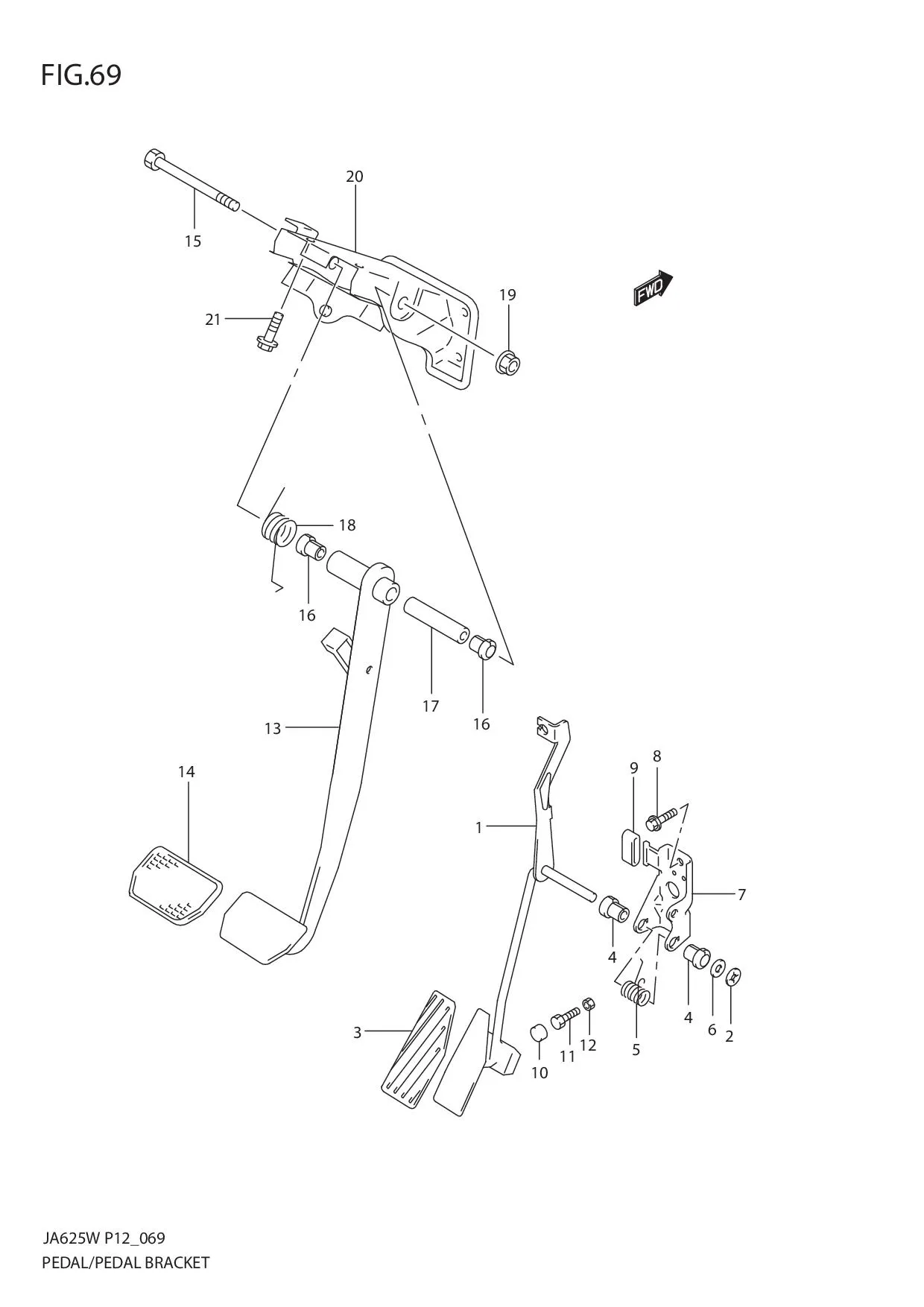

FIG.69 PEDAL AND PEDAL BRACKET

FIG.69 PEDAL AND PEDAL BRACKET
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 49410-77E10-000		 PEDAL, ACCELERATOR 1 -
2 DISCONTINUE
SUB: 09148-09001-000		 NUT 1 -
3 49451M60B00-000 PAD, ACCELERATOR PEDAL 1 Rp12.500
4 DISCONTINUE
SUB: 09307-09001-000		 BUSH, PEDAL SHAFT 2 -
5 09448-21005-000 SPRING, PEDAL RETURN 1 Rp44.500
6 DISCONTINUE
SUB: 09160-09016-000		 WASHER (9.5X20X1) 1 -
7 DISCONTINUE
SUB: 49511-65D00-000		 BRACKET, ACCELERATOR 1 -
8 02162-0612B-000
SUB: 02162-06123-000		 BOLT 2 Rp16.000
9 DISCONTINUE
SUB: 49416-60A00-000		 CUSHION, ACCEL PEDAL RETURN 1 -
10 09251-09002-000 CAP 1 Rp22.000
11 DISCONTINUE
SUB: 09100-06159-000		 BOLT (6X34) 1 -
12 08310-0006B-000
SUB: 08310-00063-000		 NUT 1 Rp4.500
13 DISCONTINUE
SUB: 49610-65D10-000		 PEDAL, BRAKE 1 -
14 49751M58J10-000
SUB: 49751-86300-000		 PAD, BRAKE PEDAL 1 Rp7.500
15 09100-10226-000 BOLT (10X85) 1 Rp19.500
16 09306M13004-000
SUB: 09307M13005-000		 BUSHING 2 Rp11.500
17 09180-10121-000 SPACER (10.1X13X73.8) 1 Rp38.500
18 DISCONTINUE
SUB: 49691-65D00-000		 SPRING, BRAKE PEDAL 1 -
19 DISCONTINUE
SUB: 08316-20103-000		 NUT 1 -
20 DISCONTINUE
SUB: 49710-52DA0-000		 BRACKET, PEDAL 1 -
21 01550-0820A-000
SUB: 01550-08203-000		 BOLT 2 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
