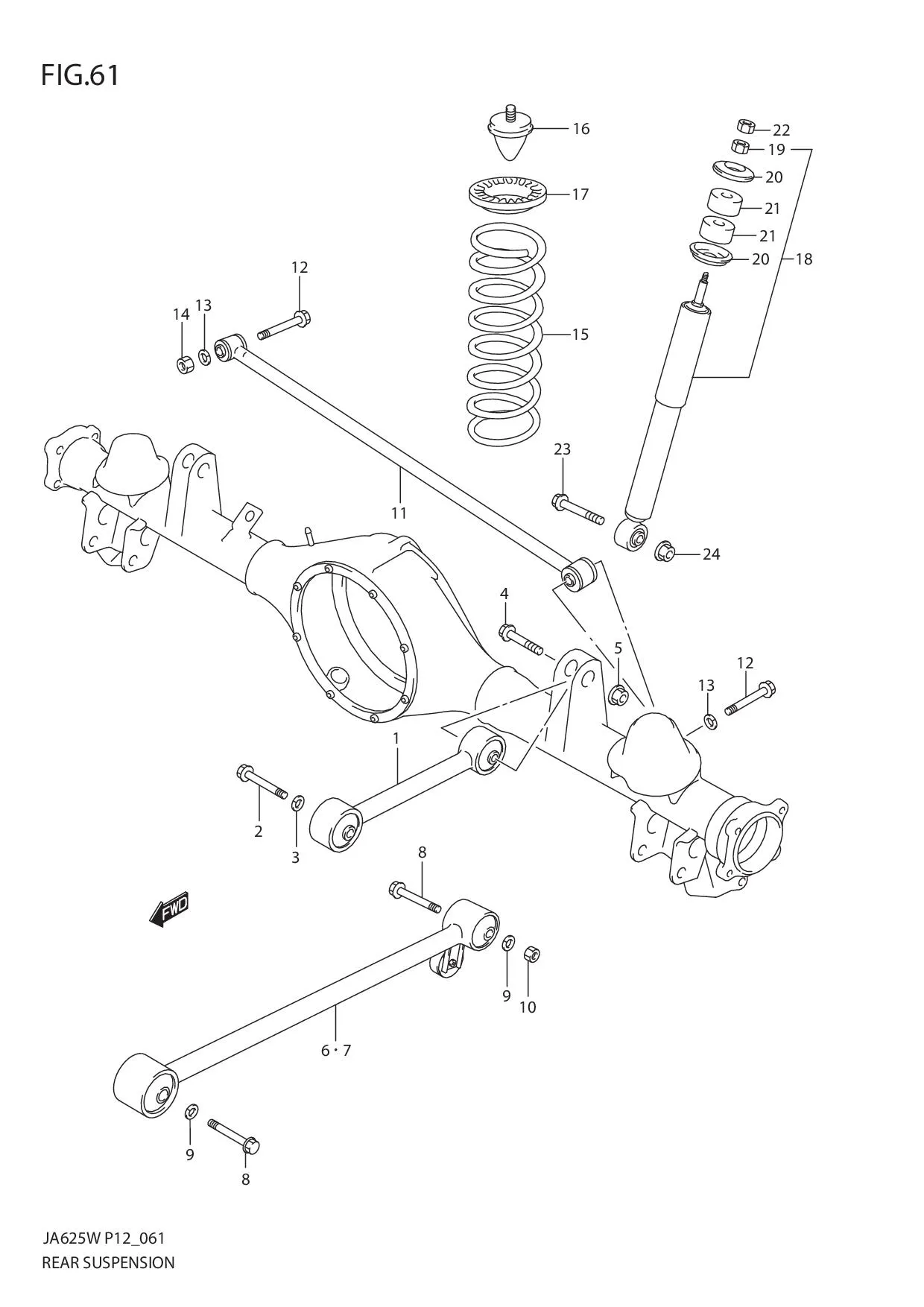

FIG.61 REAR SUSPENSION

FIG.61 REAR SUSPENSION
No No. Part Description Qty Price Per Pcs Remarks
1 46201-65D50-000
SUB: 46201-65D00-000		 ROD ASSY, SUSPENSION UPPER 2 Rp1.073.000
2 DISCONTINUE
SUB: 09135-12007-000		 BOLT (12X76) 2 -
3 DISCONTINUE
SUB: 08321-01123L000		 LOCK WASHER 2 -
4 09135-12008-000 BOLT (12X71) 2 Rp35.000
5 08316-1012A-000
SUB: 08316-10123-000		 NUT 2 Rp6.500
6 DISCONTINUE
SUB: 46202-52D11-000		 ROD ASSY, SUSPENSION LOWER RH 1 -
7 DISCONTINUE
SUB: 46202-52D61-000		 ROD ASSY, SUSPENSION LOWER LH 1 -
8 DISCONTINUE
SUB: 09135-12009-000		 BOLT (12X98) 4 -
9 DISCONTINUE
SUB: 08321-01123L000		 LOCK WASHER 4 -
10 08310-0012A-000
SUB: 08310-00123L000		 NUT 2 Rp17.500
11 DISCONTINUE
SUB: 46300-52D00-000		 ROD ASSY, SUSPENSION LATERAL 1 -
12 DISCONTINUE
SUB: 09135-12007-000		 BOLT (12X76) 2 -
13 DISCONTINUE
SUB: 08321-01123L000		 LOCK WASHER 2 -
14 08310-0012A-000
SUB: 08310-00123L000		 NUT 1 Rp17.500
15 DISCONTINUE
SUB: 41311-52D10-000		 SPRING, REAR COIL 2 -
16 42110-52D00-000 STOPPER, BUMP 2 Rp392.000
17 41211-65D10-000 SEAT, RUBBER 2 Rp151.000
18 41700-52D02-000
SUB: 41700-52D01-000		 ABSORBER ASSY, REAR SHOCK 2 Rp2.698.000
19 08310-0010A-000
SUB: 08310-00103-000		 •NUT 2 Rp3.500
20 DISCONTINUE
SUB: 09165-10003-000		 •WASHER 4 -
21 09320-10040-000 •BUSHING (10X30X15) 4 Rp45.000
22 08310-0010A-000
SUB: 08310-00103-000		 NUT 2 Rp3.500
23 09135-12003-000 BOLT (12X71) 2 Rp30.500
24 08316-1012A-000
SUB: 08316-10123-000		 NUT 2 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
