GRANDESCUDO XL7 JA625W

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.57 FRONT SUSPENSIONFIG.58 FRONT STABILIZERFIG.59 FRONT SUSPENSION FRAMEFIG.60 FRONT WHEEL HUBFIG.61 REAR SUSPENSIONFIG.62 AXLE HOUSINGFIG.63 REAR AXLE AND BRAKE DRUMFIG.64 ROAD WHEEL AND TIREFIG.65 STEERING WHEELFIG.66 STEERING COLUMNFIG.67 STEERING UNITFIG.68 OIL PUMPFIG.69 PEDAL AND PEDAL BRACKETFIG.70 BRAKE MASTER CYLINDERFIG.71 BRAKE PIPINGFIG.72 ANTI LOCK BRAKE SYSTEMFIG.73 FRONT WHEEL BRAKEFIG.74 REAR WHEEL BRAKEFIG.75 PARKING BRAKE

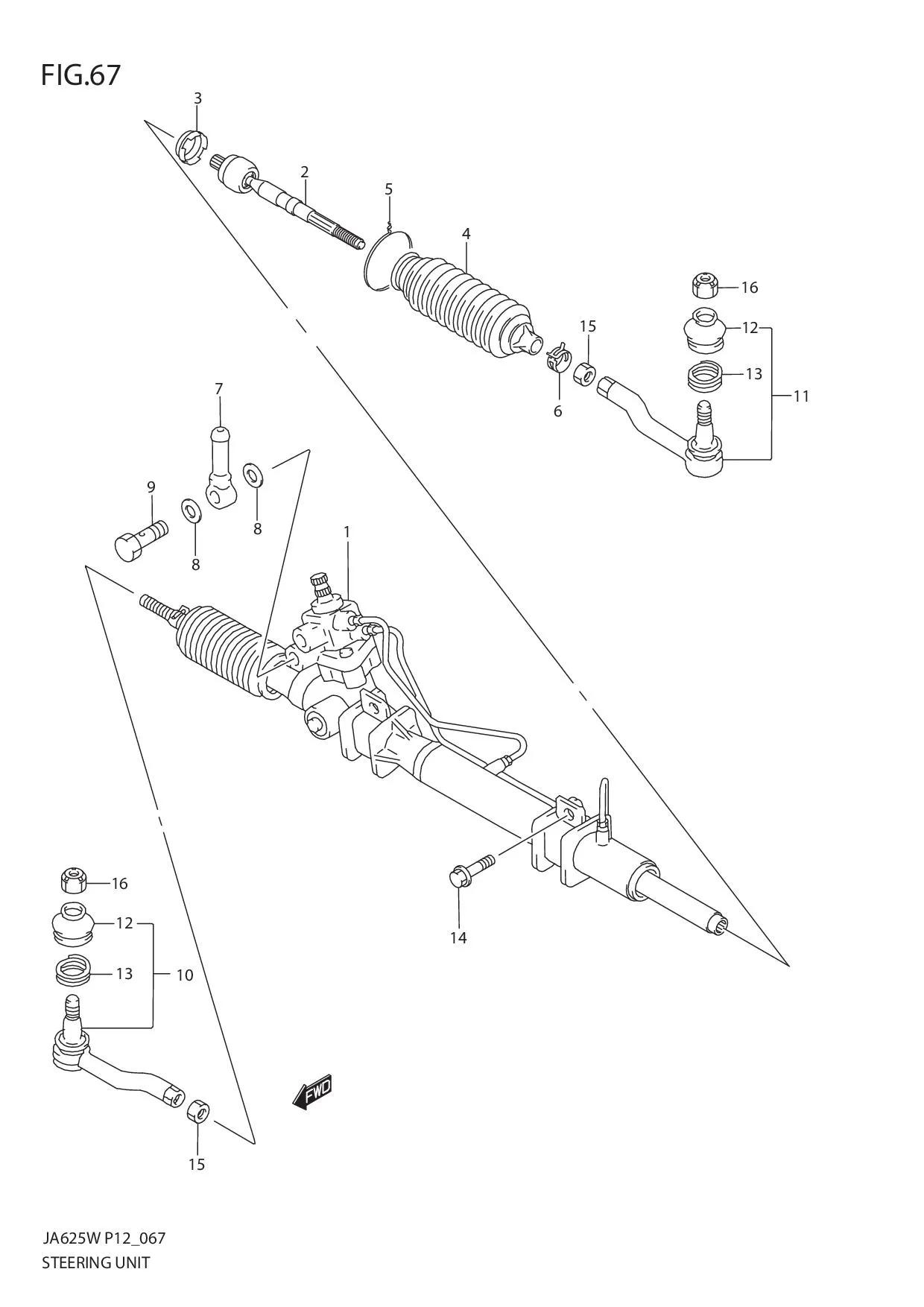

FIG.67 STEERING UNIT

FIG.67 STEERING UNIT
No No. Part Description Qty Price Per Pcs Remarks
1 48580-65D01-000 GEAR ASSY, POWER STEERING 1 Rp20.908.000
2 48830-65D00-000 •TIE ROD 2 Rp866.000
3 48841-65D00-000 •WASHER, TIE ROD LOCK 2 Rp109.000
4 48571-65D00-000 •BOOT 2 Rp232.500
5 48575-65D00-000 •WIRE 2 Rp41.000
6 09401-16403-000 •CLIP 2 Rp16.500
7 DISCONTINUE
SUB: 48516-65D00-000		 •PIPE, RETURN 1 - RETURN PORT
8 09168-14014-000 •GASKET (14X18X1.5) 2 Rp18.000 RETURN PORT
9 09360-14011-000 •BOLT,UNION (14X27) 1 Rp96.000 RETURN PORT
10 48810-65D01-000
SUB: 48810-65D00-000		 END, TIE ROD RH 1 Rp844.000
11 48820-65D01-000
SUB: 48820-65D00-000		 END, TIE ROD LH 1 Rp844.000
12 48800-80810-000
SUB: 48806-80000-000		 •BOOT SET 2 Rp331.500
13 09401-27402-000 •CLIP 2 Rp21.000
14 01551-1025A-000
SUB: 01551-10253-000		 BOLT 4 Rp29.000
15 08310-0014A-000
SUB: 08310-00143-000		 NUT 2 Rp19.500
16 09159-12052-000 NUT 2 Rp32.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
