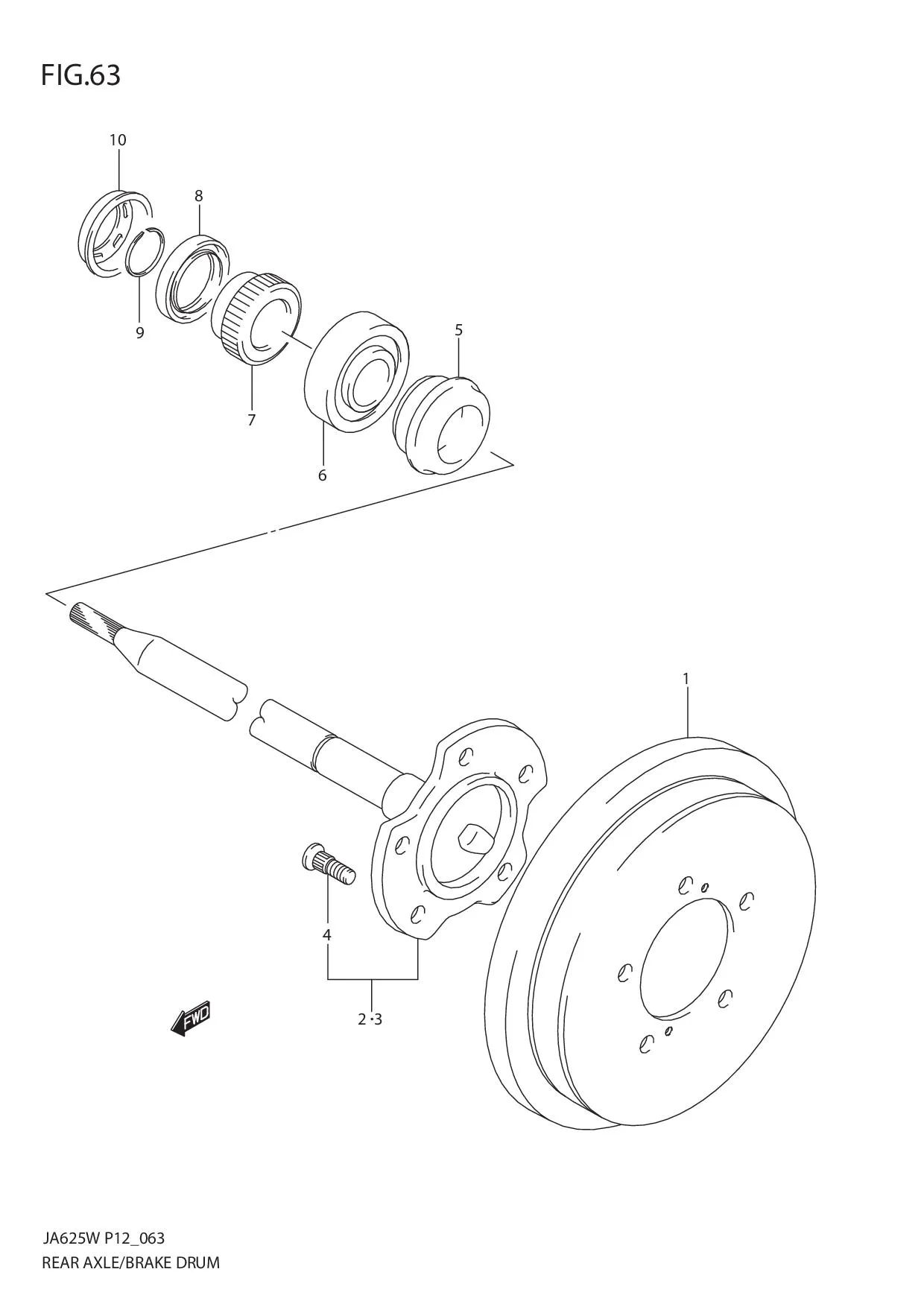

FIG.63 REAR AXLE AND BRAKE DRUM

FIG.63 REAR AXLE AND BRAKE DRUM
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 43511-52D00-000		 DRUM, REAR BRAKE 2 -
2 44210-52811-000
SUB: 44210-52810-000		 SHAFT, REAR AXLE RH 1 Rp5.731.500
3 44220-52811-000
SUB: 44220-52810-000		 SHAFT, REAR AXLE LH 1 Rp5.182.500
4 09119-12012-000 •BOLT (12X38) 10 Rp14.500
5 43594-52D00-000 PLATE, DEFLECTOR DUST 2 Rp169.500
6 43591-52D00-000 BEARING, REAR WHEEL 2 Rp1.420.000
7 43485-52D50-000 RING, BEARING RETAINER 2 Rp502.000
8 43592-52D00-000 SEAL, OIL INNER 2 Rp168.500
9 DISCONTINUE
SUB: 43596-52D00-000		 CIRCLIP 2 -
10 43588-52D00-000 PROTECTOR, OIL SEAL 2 Rp34.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
