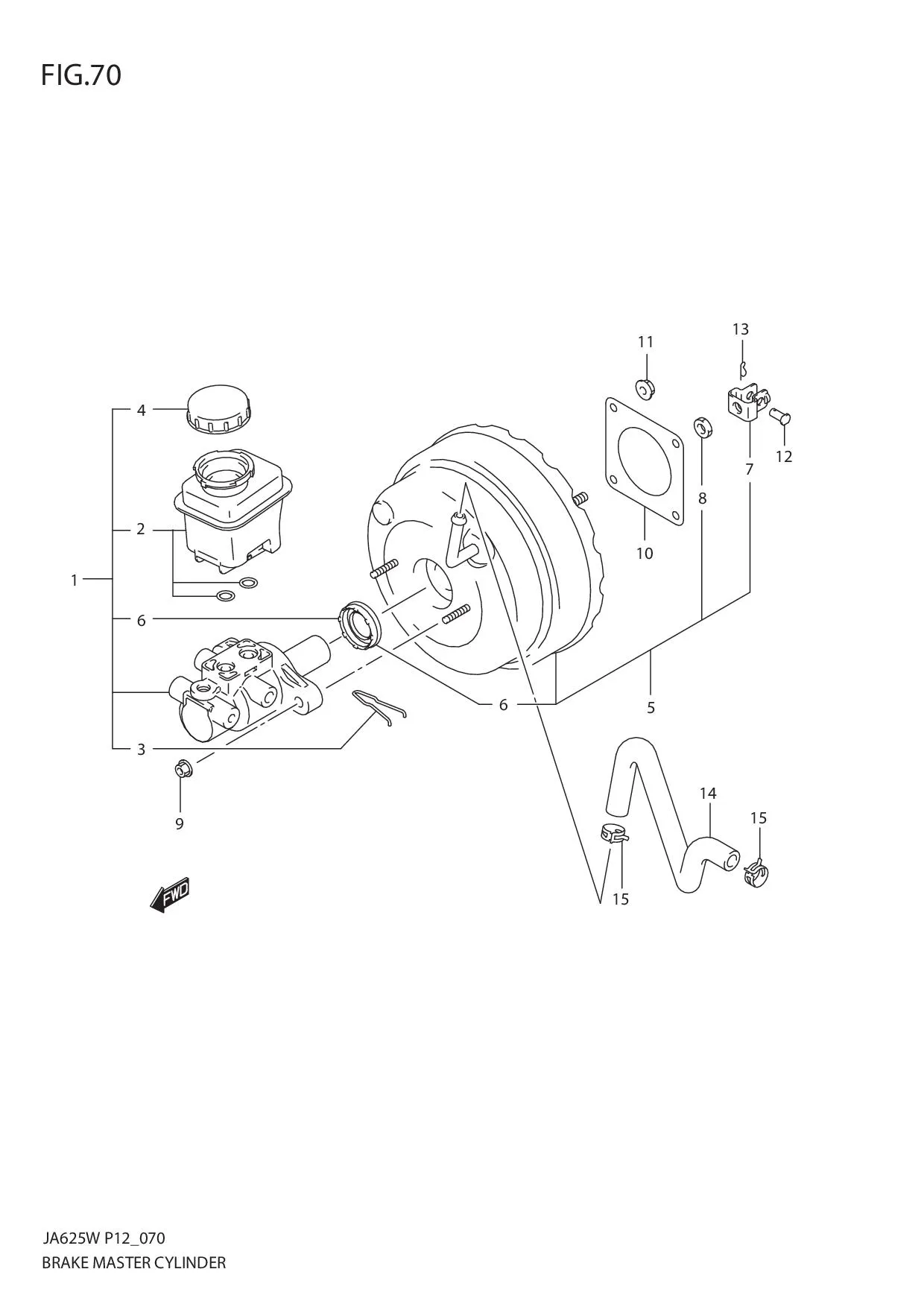

FIG.70 BRAKE MASTER CYLINDER

FIG.70 BRAKE MASTER CYLINDER
No No. Part Description Qty Price Per Pcs Remarks
1 51100-52D20-000 CYLINDER ASSY, BRAKE MASTER 1 Rp7.293.000
2 DISCONTINUE
SUB: 51200-52D00-000		 •RESERVOIR ASSY, BRAKE MASTER CYLINDER 1 -
3 DISCONTINUE
SUB: 51233-52D00-000		 •RETAINER, RESERVOIR 1 -
4 51290-52D00-000 •CAP ASSY, RESERVOIR 1 Rp253.000
5 51300-52D00-000 BOOSTER ASSY, BRAKE MASTER 1 Rp5.553.500
6 51311-52D00-000 •SEAL SET 1 Rp193.000
7 DISCONTINUE
SUB: 51182-52D00-000		 •CLEVIS, MA CYLINDER PUSH LOD 1 -
8 DISCONTINUE
SUB: 51349-52D00-000		 •NUT, MA CYLINER PUSH LOD 1 -
9 DISCONTINUE
SUB: 51313-52D00-000		 NUT, BOOSTER 2 -
10 51132-82003-000 PACKING, BRAKE MASTER CYLINDER 1 Rp33.000
11 09159-08127-000
SUB: 09159M08069-000		 NUT 4 Rp11.000
12 09200M10021-000 PIN 1 Rp7.000
13 09385-10006-000 CLIP 1 Rp16.000
14 DISCONTINUE
SUB: 51010-65D20-000		 HOSE, BRAKE VACUUM 1 -
15 09401-15404-000 CLAMP 2 Rp14.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
