GRANDESCUDO XL7 JA625W

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.57 FRONT SUSPENSIONFIG.58 FRONT STABILIZERFIG.59 FRONT SUSPENSION FRAMEFIG.60 FRONT WHEEL HUBFIG.61 REAR SUSPENSIONFIG.62 AXLE HOUSINGFIG.63 REAR AXLE AND BRAKE DRUMFIG.64 ROAD WHEEL AND TIREFIG.65 STEERING WHEELFIG.66 STEERING COLUMNFIG.67 STEERING UNITFIG.68 OIL PUMPFIG.69 PEDAL AND PEDAL BRACKETFIG.70 BRAKE MASTER CYLINDERFIG.71 BRAKE PIPINGFIG.72 ANTI LOCK BRAKE SYSTEMFIG.73 FRONT WHEEL BRAKEFIG.74 REAR WHEEL BRAKEFIG.75 PARKING BRAKE

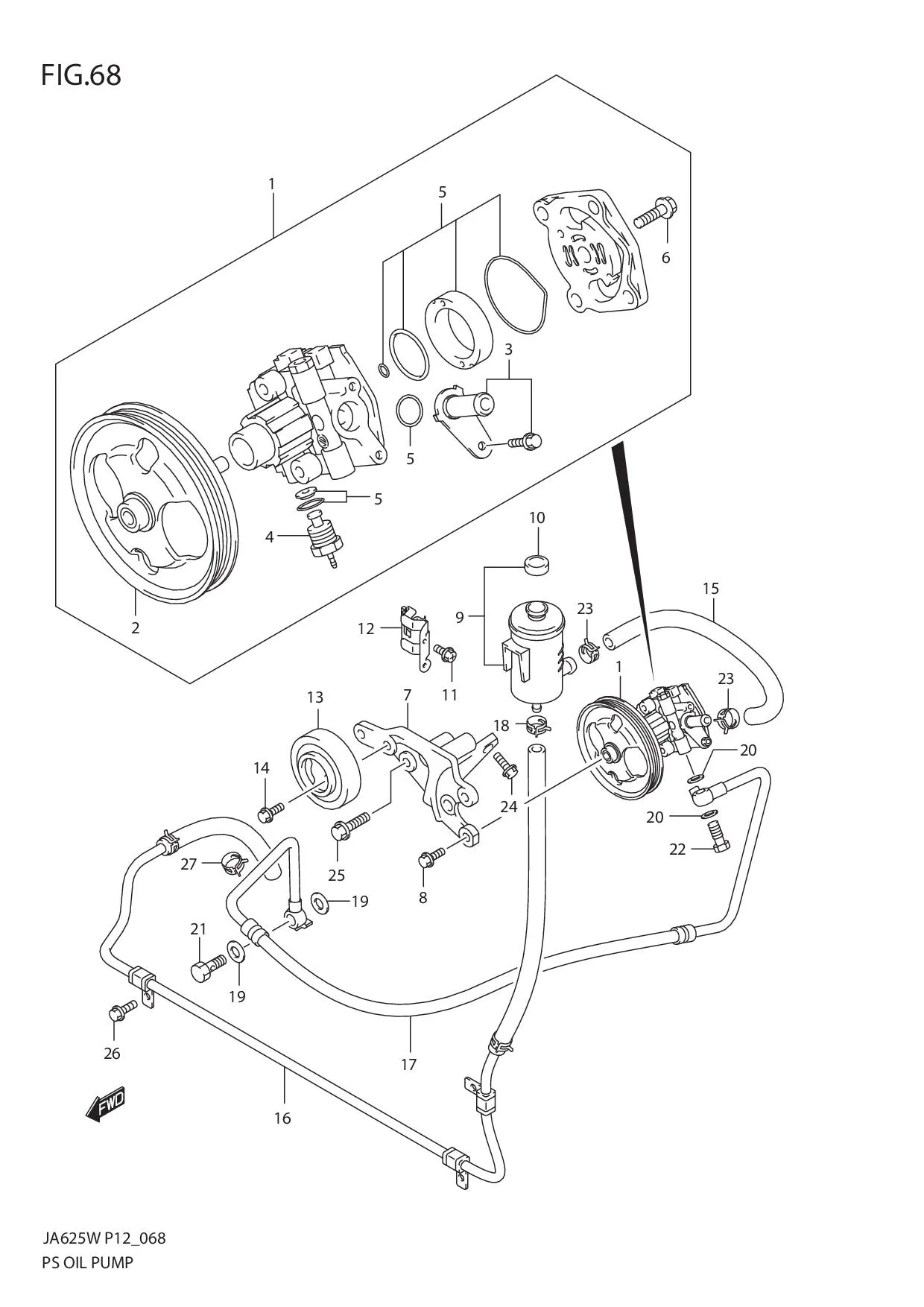

FIG.68 OIL PUMP

FIG.68 OIL PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 49100-52D00-000 PUMP ASSY, POWER STEERING 1 Rp9.551.000
2 DISCONTINUE
SUB: 49111-65D30-000		 •PULLEY 1 -
3 DISCONTINUE
SUB: 49112-65D30-000		 •CONNECTOR SET 1 -
4 49113-65D00-000 •TERMINAL SET 1 Rp476.000
5 49114-56B30-000 •SEAL SET 1 Rp470.500
6 DISCONTINUE
SUB: 49115-56B30-000		 •BOLT SET 1 -
7 DISCONTINUE
SUB: 49120-65D30-000		 BRACKET, PS PUMP 1 -
8 01550-0825A-000
SUB: 01550-08253-000		 BOLT 3 Rp3.500
9 49140-54J01-000
SUB: 49140-65D00-000		 TANK, POWER STEERING OIL 1 Rp955.500
10 49142-65D00-000 •CAP, PS OIL TANK 1 Rp67.500
11 02162-0612B-000
SUB: 02162-06123-000		 BOLT 2 Rp16.000
12 DISCONTINUE
SUB: 49150-52D00-000		 BRACKET, RESERVOIR TANK 1 -
13 49160-77E01-000 PULLEY, BELT TENSION 1 Rp1.939.500
14 09103-08071-000 BOLT (8X36) 2 Rp33.000
15 49214-52D00-000 HOSE, SUCTION 1 Rp457.500
16 DISCONTINUE
SUB: 49220-52D00-000		 HOSE, RETURN 1 -
17 49230-65D31-000 HOSE, PRESSURE 1 Rp2.069.500
18 09401-15404-000 CLAMP 1 Rp14.500
19 09168-14014-000 GASKET (14X18X1.5) 2 Rp18.000
20 09168-16002-000 GASKET (16X22X2) 2 Rp13.000
21 09360-14011-000 BOLT (14X27) 1 Rp96.000
22 09360-16003-000 BOLT (16X29) 1 Rp92.000
23 09401-20405-000 CLAMP 2 Rp23.500
24 01550-1025A-000
SUB: 01550-10253-000		 BOLT 1 Rp3.500
25 01550-1060A-000
SUB: 01550-10603-000		 BOLT 2 Rp5.500
26 02162-0616A-000
SUB: 02162-06163L000		 BOLT 3 Rp3.000
27 49225-65D10-000 CLAMP 1 Rp38.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
