GRANDESCUDO XL7 JA625W

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.57 FRONT SUSPENSIONFIG.58 FRONT STABILIZERFIG.59 FRONT SUSPENSION FRAMEFIG.60 FRONT WHEEL HUBFIG.61 REAR SUSPENSIONFIG.62 AXLE HOUSINGFIG.63 REAR AXLE AND BRAKE DRUMFIG.64 ROAD WHEEL AND TIREFIG.65 STEERING WHEELFIG.66 STEERING COLUMNFIG.67 STEERING UNITFIG.68 OIL PUMPFIG.69 PEDAL AND PEDAL BRACKETFIG.70 BRAKE MASTER CYLINDERFIG.71 BRAKE PIPINGFIG.72 ANTI LOCK BRAKE SYSTEMFIG.73 FRONT WHEEL BRAKEFIG.74 REAR WHEEL BRAKEFIG.75 PARKING BRAKE

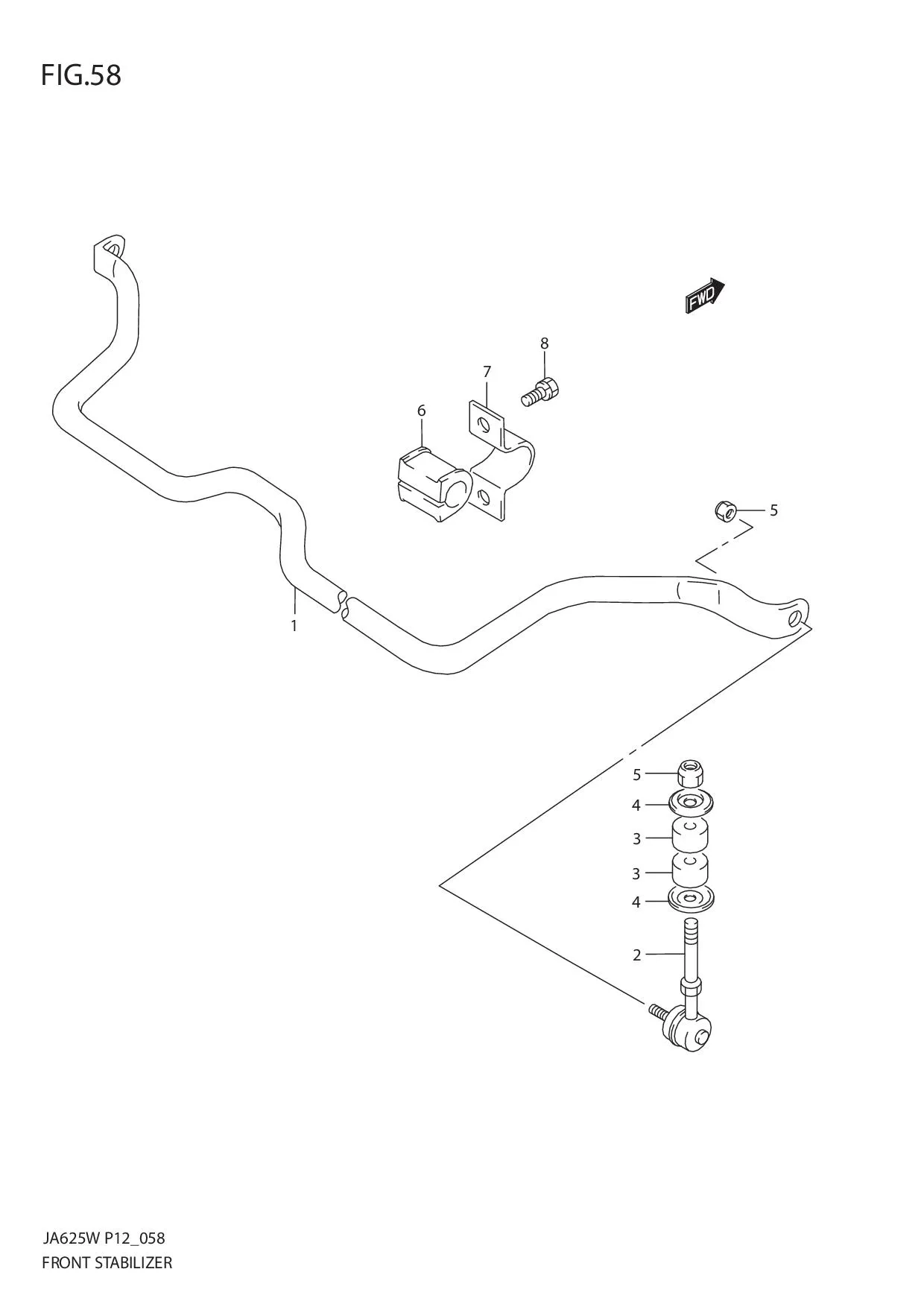

FIG.58 FRONT STABILIZER

FIG.58 FRONT STABILIZER
No No. Part Description Qty Price Per Pcs Remarks
1 42311-65D10-000 BAR, FRONT STABILIZER 1 Rp2.577.000
2 42420-65D00-000 JOINT, STABILIZER BALL 2 Rp412.000
3 09320-10024-000 CUSHION (10X25.4X16) 4 Rp41.500
4 09165-10002-000 RETAINER 4 Rp36.000
5 09159-10109-000 NUT 4 Rp19.000
6 42412-65D00-000 BUSHING, BAR MOUNT 2 Rp76.000
7 42415-66D00-000 PLATE, MOUNT 2 Rp59.500
8 09112-08002-000 BOLT (8X25) 4 Rp17.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
