GRANDESCUDO XL7 JA625W

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.57 FRONT SUSPENSIONFIG.58 FRONT STABILIZERFIG.59 FRONT SUSPENSION FRAMEFIG.60 FRONT WHEEL HUBFIG.61 REAR SUSPENSIONFIG.62 AXLE HOUSINGFIG.63 REAR AXLE AND BRAKE DRUMFIG.64 ROAD WHEEL AND TIREFIG.65 STEERING WHEELFIG.66 STEERING COLUMNFIG.67 STEERING UNITFIG.68 OIL PUMPFIG.69 PEDAL AND PEDAL BRACKETFIG.70 BRAKE MASTER CYLINDERFIG.71 BRAKE PIPINGFIG.72 ANTI LOCK BRAKE SYSTEMFIG.73 FRONT WHEEL BRAKEFIG.74 REAR WHEEL BRAKEFIG.75 PARKING BRAKE

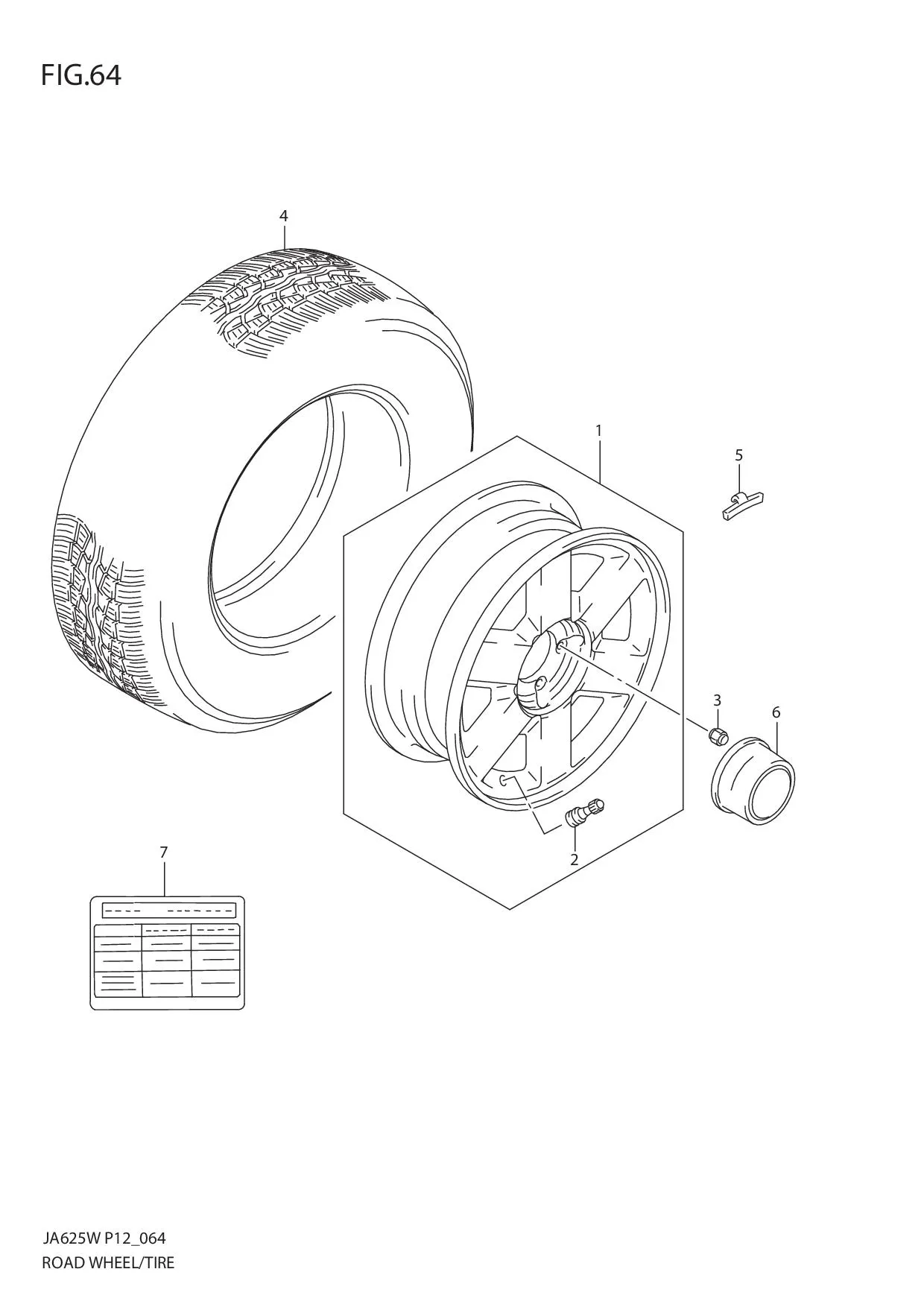

FIG.64 ROAD WHEEL AND TIRE

FIG.64 ROAD WHEEL AND TIRE
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 43200B52821N000		 WHEEL, AL (16X7JJ)(SILVER) 5 -
2 43130-78030-000 •VALVE, TIRE (TR413) 5 Rp62.000
3 09159-12057-000 NUT 20 Rp51.000
4 DISCONTINUE
SUB: 43110B52D30N000		 TIRE (235/60 R16) 5 -
5-1 43222-50J10-000 WEIGHT, BALANCE (10 GRAM) 0 Rp44.000
5-2 DISCONTINUE
SUB: 43224-50J10-000		 WEIGHT, BALANCE (20 GRAM) 0 -
5-3 DISCONTINUE
SUB: 43226-50J10-000		 WEIGHT, BALANCE (30 GRAM) 0 -
5-4 DISCONTINUE
SUB: 43228-50J10-000		 WEIGHT, BALANCE (40 GRAM) 0 -
6 43252-65D00-000
SUB: 43252B65D00N000		 CAP, WHEEL CENTER (BLACK) 4 Rp130.000
7 79161-52D20-000 PLACARD, TIRE INFORMATION 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
