GRANDESCUDO XL7 JA625W

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.57 FRONT SUSPENSIONFIG.58 FRONT STABILIZERFIG.59 FRONT SUSPENSION FRAMEFIG.60 FRONT WHEEL HUBFIG.61 REAR SUSPENSIONFIG.62 AXLE HOUSINGFIG.63 REAR AXLE AND BRAKE DRUMFIG.64 ROAD WHEEL AND TIREFIG.65 STEERING WHEELFIG.66 STEERING COLUMNFIG.67 STEERING UNITFIG.68 OIL PUMPFIG.69 PEDAL AND PEDAL BRACKETFIG.70 BRAKE MASTER CYLINDERFIG.71 BRAKE PIPINGFIG.72 ANTI LOCK BRAKE SYSTEMFIG.73 FRONT WHEEL BRAKEFIG.74 REAR WHEEL BRAKEFIG.75 PARKING BRAKE

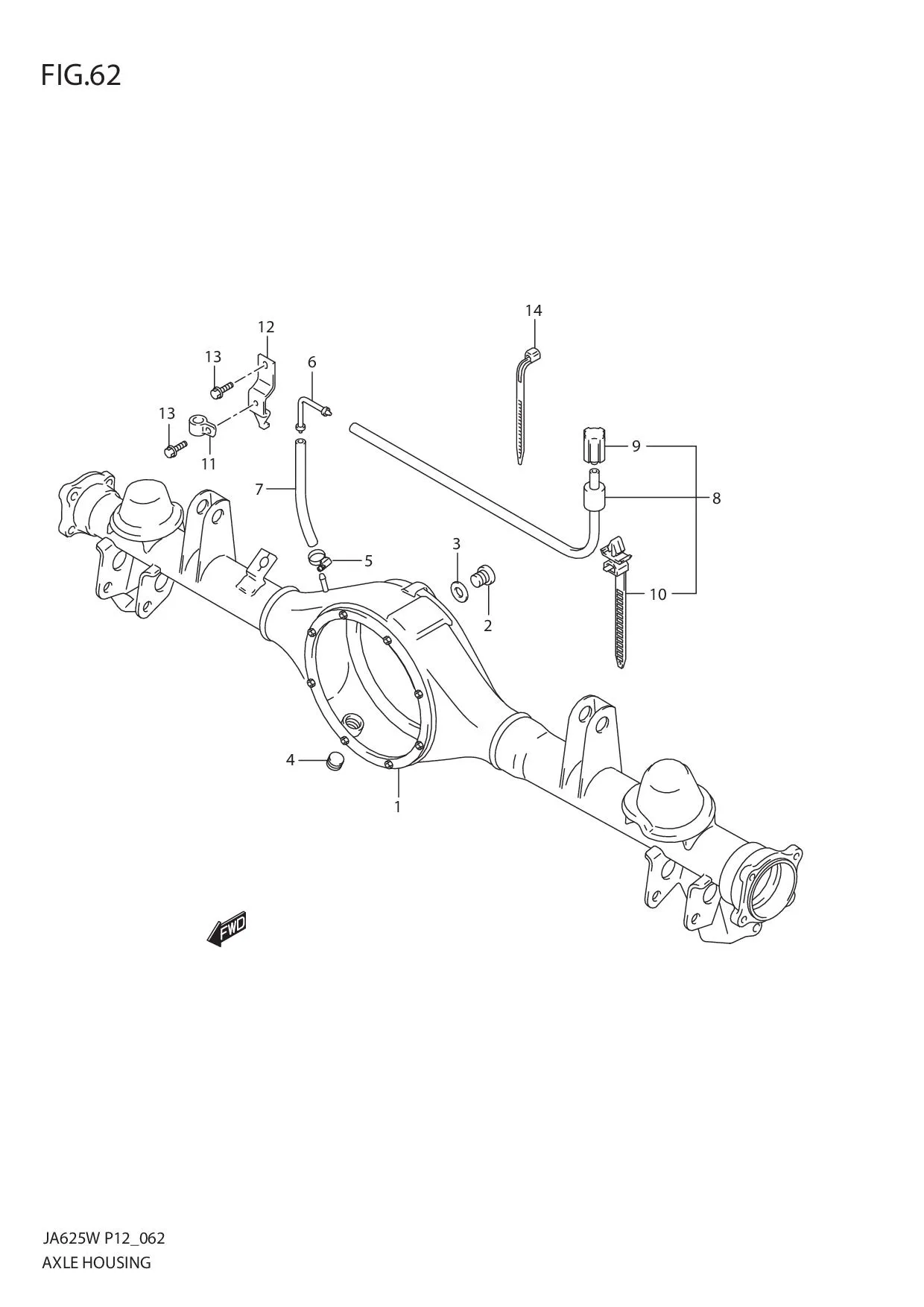

FIG.62 AXLE HOUSING

FIG.62 AXLE HOUSING
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 46510-52D51-000		 HOUSING ASSY, REAR AXLE 1 -
2 09248-20003-000 PLUG 1 Rp28.500
3 09168-20003-000 GASKET (20X27X2) 1 Rp31.000
4 09246-16021-000
SUB: 09246-16010-000		 PLUG 1 Rp48.000
5 DISCONTINUE
SUB: 09400-16304-000		 CLAMP 1 -
6 DISCONTINUE
SUB: 09367-08003-000		 UNION 1 -
7 DISCONTINUE
SUB: 46546-65D00-000		 HOSE, BREATHER NO.1 1 - L:310!270
8 DISCONTINUE
SUB: 46550-52D00-000		 HOSE, BREATHER NO.2 1 -
9 27991-65D01-000 •PLUG, BREATHER HOSE 1 Rp22.500
10 DISCONTINUE
SUB: 09407-11402-000		 •CLAMP (L:75) 1 -
11 DISCONTINUE
SUB: 09403-14408-000		 CLAMP 1 -
12 DISCONTINUE
SUB: 46548-52D00-000		 BRACKET, UNION CLAMP 1 -
13 02162-0612B-000
SUB: 02162-06123-000		 BOLT 2 Rp16.000
14 DISCONTINUE
SUB: 09407M19401-000		 CLAMP (L:190) 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
