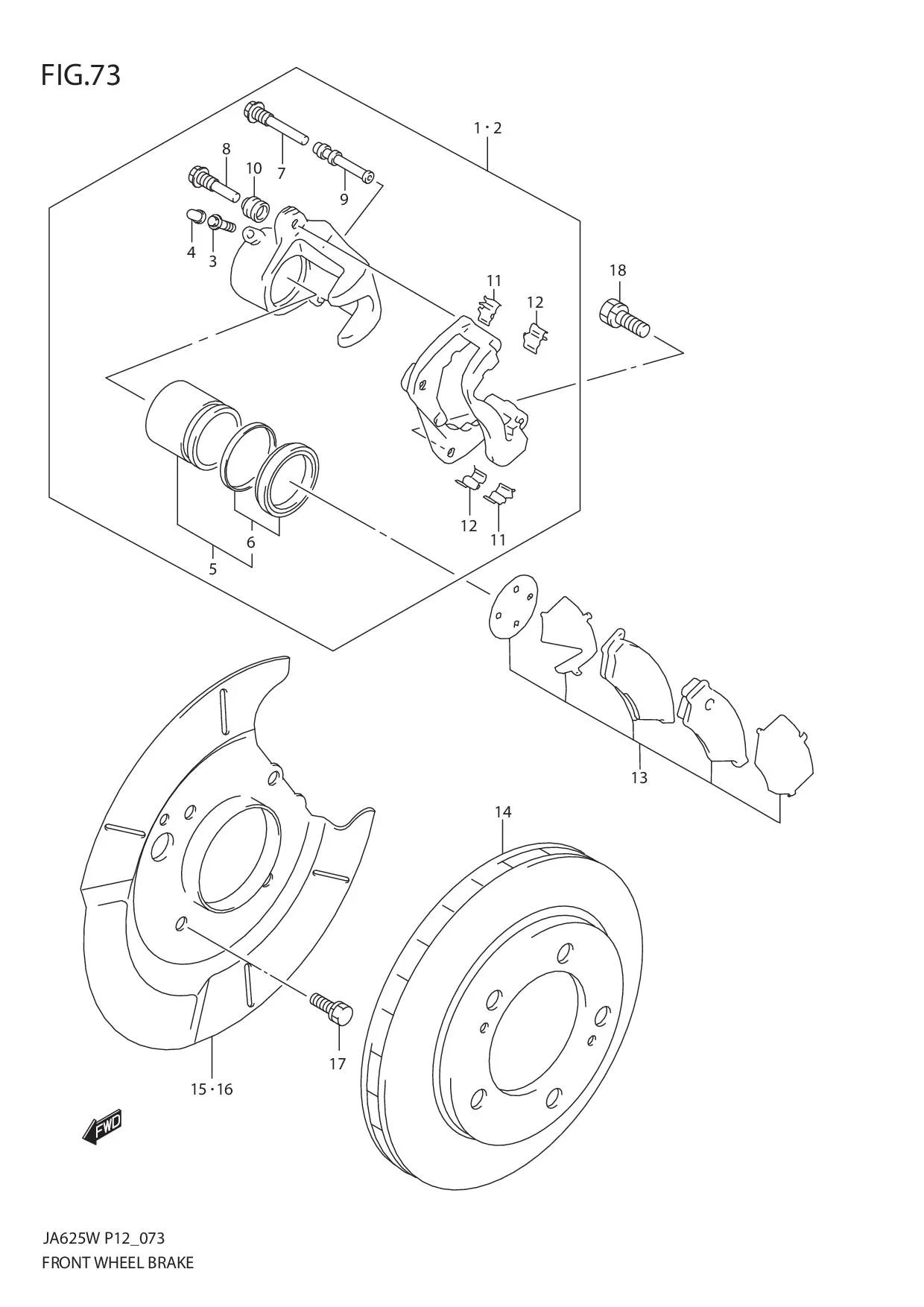

FIG.73 FRONT WHEEL BRAKE

FIG.73 FRONT WHEEL BRAKE
No No. Part Description Qty Price Per Pcs Remarks
1 55101-65D22-999
SUB: 55101-65D10-999		 CALIPER, FRONT BRAKE RH 1 Rp8.443.000
2 DISCONTINUE
SUB: 55102-65D10-999		 CALIPER, FRONT BRAKE LH 1 -
3 55151-77E00-000 •PLUG, BLEEDER 2 Rp52.500
4 55156-77E00-000 •CAP, BLEEDER PLUG 2 Rp36.500
5 55100-77E01-000
SUB: 55100-77E00-000		 •PISTON/SEAL SET 2 Rp610.000
6 55100-77821-000
SUB: 55100-77820-000		 ••SEAL SET, PISTON 2 Rp160.500
7 55206-77E00-000 •BOLT, SLIDE PIN 2 Rp81.500
8 55207-77E00-000 •BOLT, SLIDE PIN 2 Rp104.500
9 55208-77E00-000 •BUSH 2 Rp82.000
10 55201-77E00-000 •BOOT, PIN 2 Rp69.500
11 55234-77E00-000 •LINNER, PAD 4 Rp92.500
12 55235-77E00-000 •LINNER, PAD 4 Rp88.000
13 55200-65DB4-000
SUB: 55200-65D30-000		 PAD SET, DISC BRAKE 1 Rp1.876.000
14 55211-65D14-000
SUB: 55211-65D12-000		 DISC, FRONT BRAKE 2 Rp2.280.500
15 DISCONTINUE
SUB: 55221-65D00-000		 COVER, DISC DUST RH 1 -
16 DISCONTINUE
SUB: 55222-65D00-000		 COVER, DISC DUST LH 1 -
17 09117-10042-000 BOLT (10X25) 8 Rp22.000
18 09117-12012-000 BOLT (12X32) 4 Rp38.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
