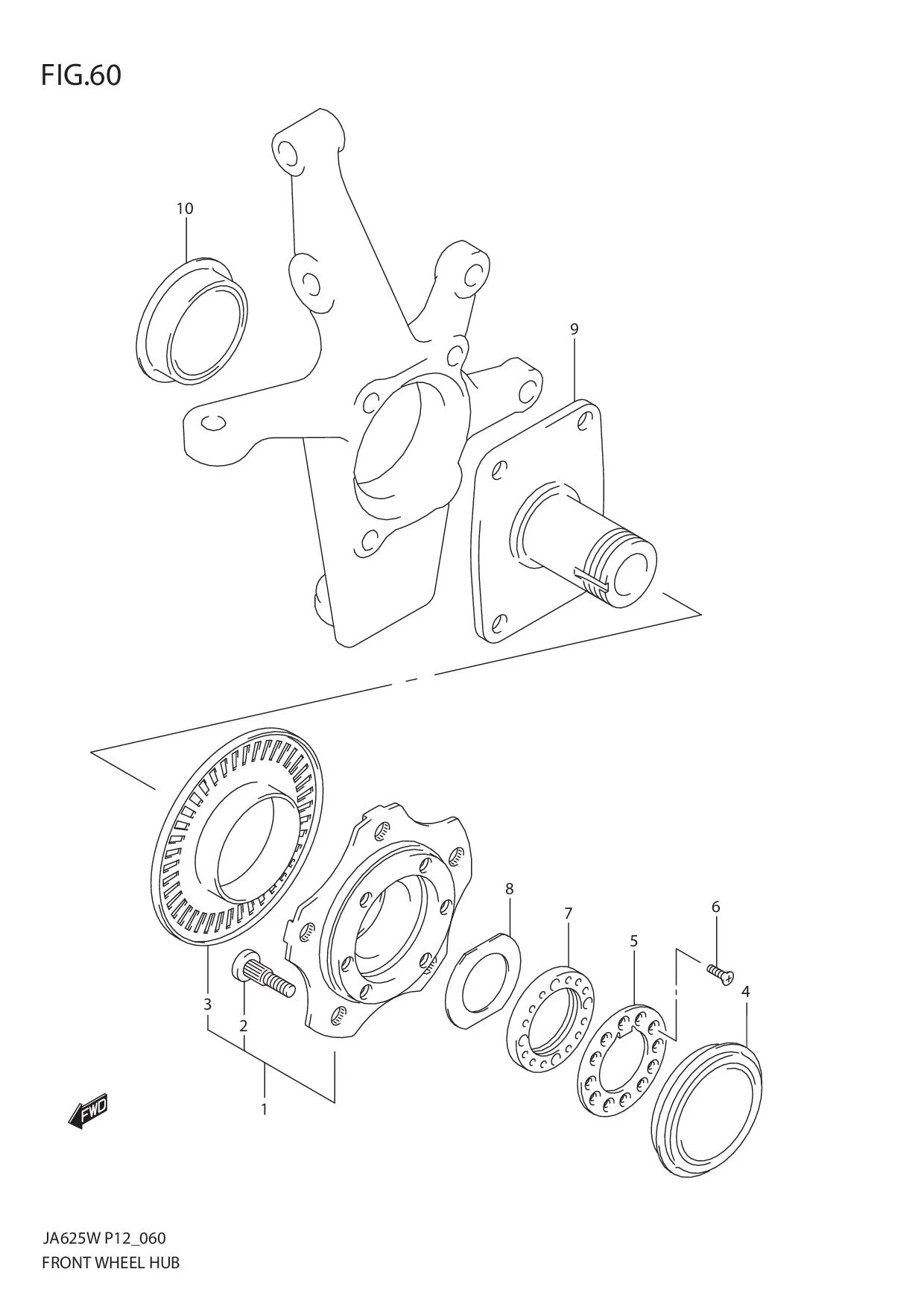

FIG.60 FRONT WHEEL HUB

FIG.60 FRONT WHEEL HUB
No No. Part Description Qty Price Per Pcs Remarks
1 43401-65D10-000 HUB ASSY, FRONT WHEEL 2 Rp4.644.500
2 09119-12012-000 •BOLT (12X38) 10 Rp14.500
3 DISCONTINUE
SUB: 56411-65D00-000		 •RING, FR WHEEL SENSOR 2 -
4 43422-60A00-000 CAP, FRONT WHEEL 2 Rp136.500
5 43466-60A00-000 WASHER, BEARING LOCK 2 Rp181.000
6 02122-0408A-000
SUB: 02122-04083-000		 SCREW 8 Rp18.500
7 43461-60A01-000 NUT, BEARING LOCK 2 Rp398.500
8 43465-60A00-000 WASHER, WHEEL BEARING 2 Rp23.000
9 43441-60A20-000 SPINDLE, FRONT WHEEL 2 Rp1.693.000
10 DISCONTINUE
SUB: 45112-60A00-000		 CAP, KNUCKLE 2 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
