ESCUDO (SE416)

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.46 FRONT SUSPENSION FIG.47 FRONT SUSPENSION FRAME FIG.48 FRONT STABILIZER FIG.49 FRONT WHELL HUB FIG.50 REAR SUSPENSION FIG.51 AXLE HOUSING FIG.52 REAR AXLE AND BRAKE DRUM FIG.53 ROAD WHEEL AND TIRE FIG.54 STEERING WHEEL FIG.55 STEERING COLUMN FIG.56 STEERING UNIT FIG.57 PS OIL PUMP FIG.58 PEDAL AND PEDAL BRACKET FIG.59 BRAKE MASTER CYLINDER FIG.60 BRAKE PIPING FIG.61 FRONT WHEEL BRAKE FIG.62 REAR WHEEL BRAKE FIG.63 PARKING BRAKE

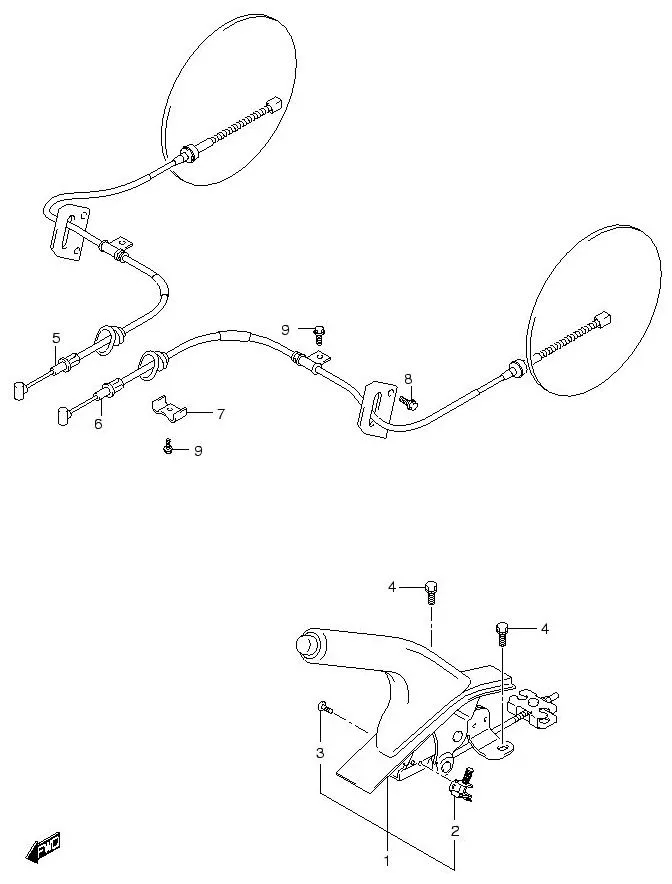

FIG.63 PARKING BRAKE

FIG.63 PARKING BRAKE

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 54100-50J00-000	LEVER ASSY, PARKING BRAKE	1	-
2	37940-76G00-000 SUB: 37940B76G00N000	•SWITCH ASSY, PARKING BRAKE	1	Rp75.500
3	54115-76G00-000 SUB: 54115B76G00N000	•SCREW	1	Rp16.000
4	01550-0816A-000 SUB: 01570M08163-000	BOLT	3	Rp6.000
5	54410-65D10-000	CABLE, PARKING BRAKE RH	1	-
6	54420-65D10-000	CABLE, PARKING BRAKE LH	1	-
7	DISCONTINUE SUB: 54431-56B00-000	CLAMP, PARKING CABLE	1	-
8	DISCONTINUE SUB: 09136-06134-000	BOLT (6X16)	4	-
9	01550-0812A-000 SUB: 01550B08123N000	BOLT	3	Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
