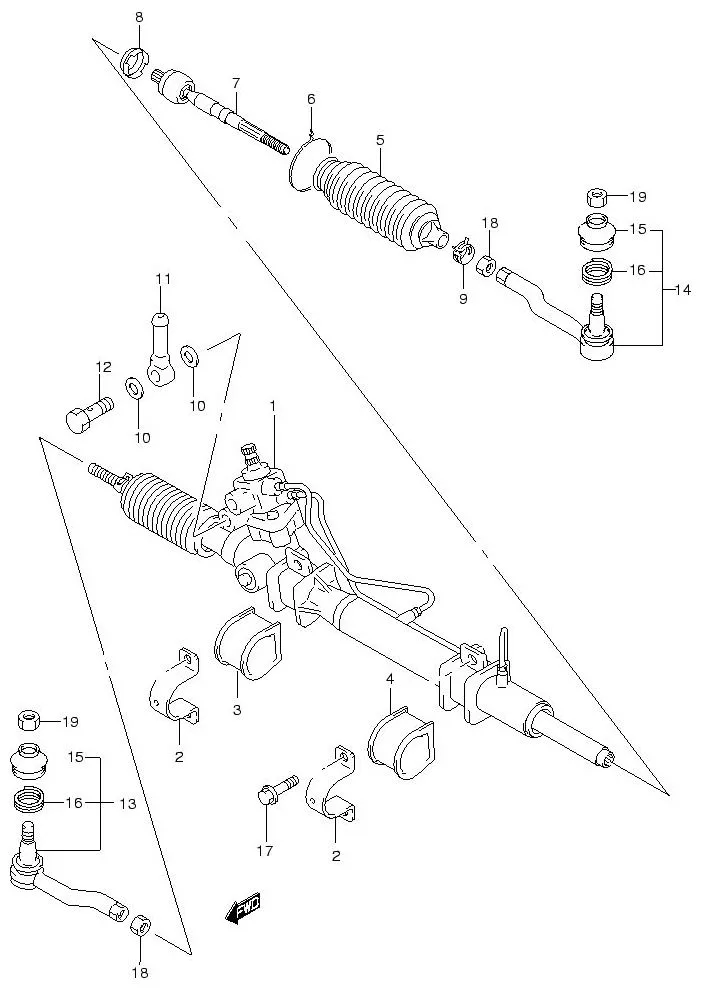

FIG.56 STEERING UNIT

FIG.56 STEERING UNIT
No No. Part Description Qty Price Per Pcs Remarks
1 48580-54J00-000 GEAR ASSY, POWER STEERING 1 Rp16.805.500
2 DISCONTINUE
SUB: 48521-54J00-000		 •BRACKET, STEERING GEAR 2 -
3 48525-54J00-000 •MOUNT, STEERING PINION SIDE 1 Rp182.000
4 48526-54J00-000 •MOUNT, STEERING RACK SIDE 1 Rp194.500
5 48571-65D00-000 •BOOT 2 Rp232.500
6 DISCONTINUE
SUB: 48575-54J00-000		 •WIRE 2 -
7 48830-65D00-000 •TIE ROD, STEERING 2 Rp866.000
8 48841-54J00-000 •WASHER, TIE ROD STEERING 2 Rp109.500
9 09401-16403-000 •CLIP 2 Rp16.500
10 09168-14014-000 •GASKET (14X18X1.5) 2 Rp18.000 RETURN PORT
11 DISCONTINUE
SUB: 48516-65D00-000		 •PIPE, RETURN 1 - RETURN PORT
12 09360-14011-000 •BOLT, UNION (14X27) 1 Rp96.000 RETURN PORT
13 48810-65D01-000
SUB: 48810-65D00-000		 END, TIE ROD RH 1 Rp844.000
14 48820-65D01-000
SUB: 48820-65D00-000		 END, TIE ROD LH 1 Rp844.000
15 48800-80810-000
SUB: 48806-80000-000		 •BOOT SET 2 Rp331.500
16 09401-27402-000 •CLIP 2 Rp21.000
17 01551-1025A-000
SUB: 01551-10253-000		 BOLT 4 Rp29.000
18 08310-0014A-000
SUB: 08310-00143-000		 NUT 2 Rp19.500
19 09159-12052-000 NUT 2 Rp32.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
