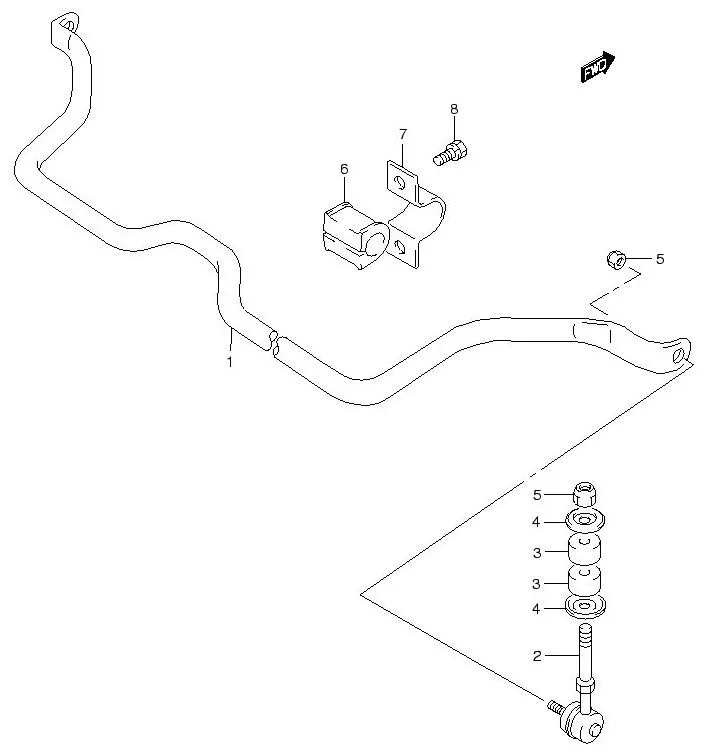

FIG.48 FRONT STABILIZER

FIG.48 FRONT STABILIZER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	42311-65D10-000	BAR, FRONT STABILIZER	1	Rp2.577.000
2	42420-65D00-000	JOINT, STABILIZER BALL	2	Rp398.000
3	09320-10024-000	CUSHION (10X25.4X16)	4	Rp37.500
4	09165-10002-000	RETAINER	4	Rp35.000
5	09159-10109-000	NUT	4	Rp17.000
6	42412-65D00-000	BUSHING, BAR MOUNT	2	Rp74.500
7	42415-66D00-000	BRACKET, STABILIZER BAR MOUNT	2	Rp59.500
8	09112-08002-000	BOLT (8X25)	4	Rp16.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
