ESCUDO (SE416)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.46 FRONT SUSPENSIONFIG.47 FRONT SUSPENSION FRAMEFIG.48 FRONT STABILIZERFIG.49 FRONT WHELL HUBFIG.50 REAR SUSPENSIONFIG.51 AXLE HOUSINGFIG.52 REAR AXLE AND BRAKE DRUMFIG.53 ROAD WHEEL AND TIREFIG.54 STEERING WHEELFIG.55 STEERING COLUMNFIG.56 STEERING UNITFIG.57 PS OIL PUMPFIG.58 PEDAL AND PEDAL BRACKETFIG.59 BRAKE MASTER CYLINDERFIG.60 BRAKE PIPINGFIG.61 FRONT WHEEL BRAKEFIG.62 REAR WHEEL BRAKEFIG.63 PARKING BRAKE

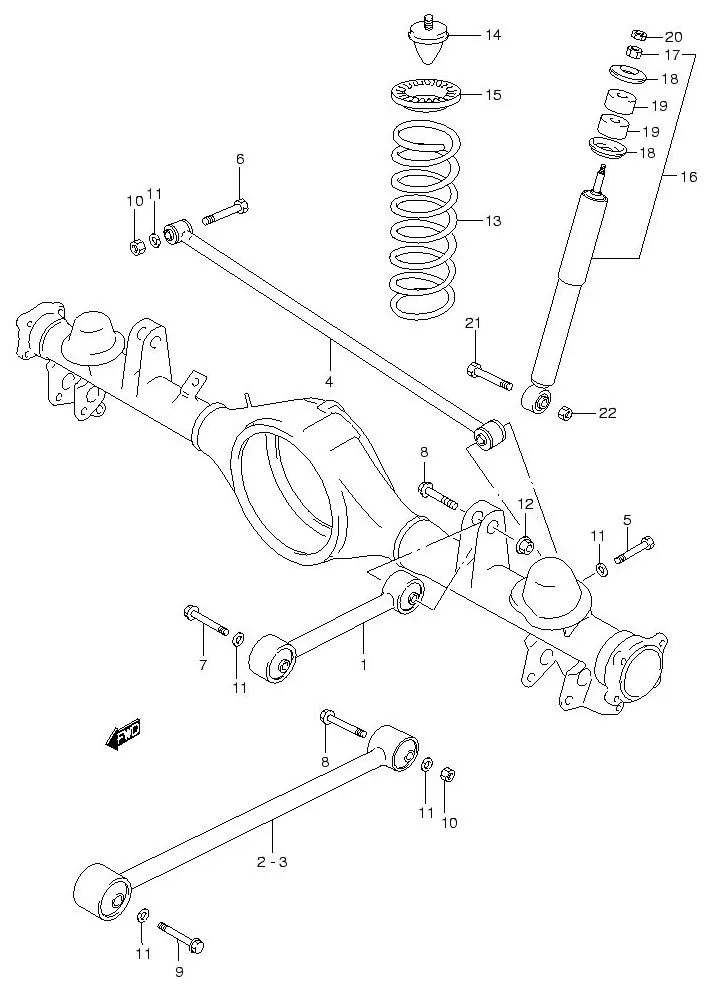

FIG.50 REAR SUSPENSION

FIG.50 REAR SUSPENSION
No No. Part Description Qty Price Per Pcs Remarks
1 46201-65D50-000
SUB: 46201-65D00-000		 ROD ASSY, SUSPENSION UPPER 2 Rp1.073.000
2 DISCONTINUE
SUB: 46202-65D10-000		 ROD ASSY, SUSPENSION LOWER RH 1 -
3 DISCONTINUE
SUB: 46202-65D60-000		 ROD ASSY, SUSPENSION LOWER LH 1 -
4 46300-65D00-000 ROD ASSY, SUSPENSION LATERAL 1 Rp1.121.000
5 DISCONTINUE
SUB: 09100-12071-000		 BOLT (12X65) 1 -
6 09135-12003-000 BOLT (12X61) 1 Rp30.500
7 DISCONTINUE
SUB: 09135-12007-000		 BOLT (12X76) 2 -
8 09135-12008-000 BOLT (12X71) 2 Rp35.000
9 DISCONTINUE
SUB: 09135-12009-000		 BOLT (12X88) 4 -
10 08310-0012A-000
SUB: 08310-00123L000		 NUT 3 Rp17.500
11 DISCONTINUE
SUB: 08321-01123L000		 LOCK WASHER 8 -
12 08316-1012A-000
SUB: 08316-10123-000		 NUT 2 Rp6.500
13 DISCONTINUE
SUB: 41311B65D21N000		 SPRING, REAR COIL 2 -
14 42110-60A10-000 STOPPER, BUMP 2 Rp266.000
15 41211-65D00-000 SEAT, RUBBER 2 Rp114.500
16 41700-65D04-000
SUB: 41700-65D02-000		 ABSORBER ASSY, REAR SHOCK 2 Rp1.573.000
17 08310-0010A-000
SUB: 08310-00103-000		 •NUT 2 Rp3.500
18 DISCONTINUE
SUB: 09165-10003-000		 •WASHER 4 -
19 09320-10040-000 •BUSHING (10X30X15) 4 Rp45.000
20 08310-0010A-000
SUB: 08310-00103-000		 NUT 2 Rp3.500
21 09135-12003-000 BOLT (12X61) 2 Rp30.500
22 08316-1012A-000
SUB: 08316-10123-000		 NUT 2 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
