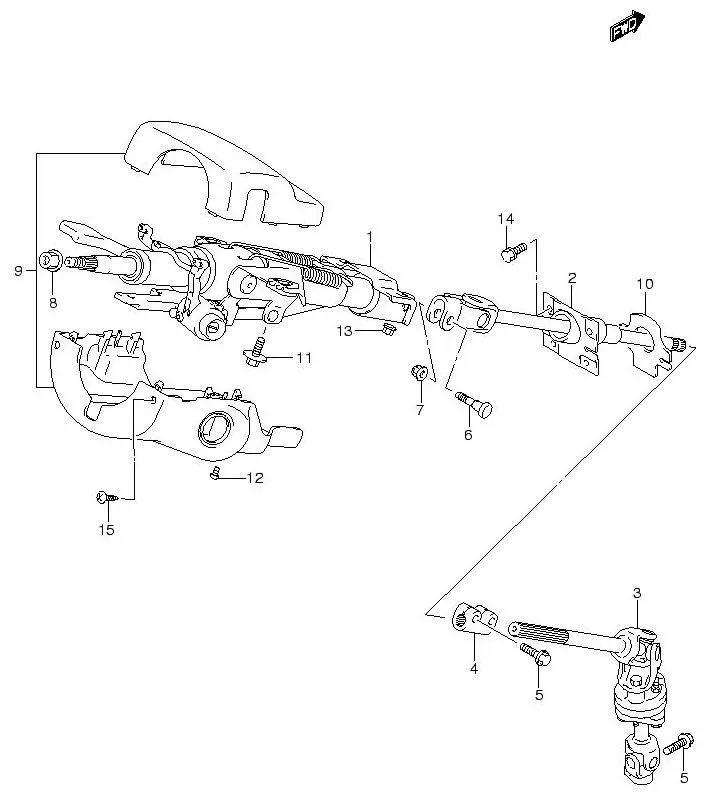

FIG.55 STEERING COLUMN

FIG.55 STEERING COLUMN
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 48200-50J00-P4Z		 COLUMN ASSY, STEERING (GRAY) 1 -
2 DISCONTINUE
SUB: 48210-50J00-000		 SHAFT ASSY, STEERING MIDDLE 1 -
3 48220-65D20-000 SHAFT ASSY, STEERING LOWER 1 Rp3.363.500
4 DISCONTINUE
SUB: 48230-65D00-000		 JOINT, STEERING SHAFT 1 -
5 DISCONTINUE
SUB: 09117-08068-000		 BOLT (8X30) 3 -
6 DISCONTINUE
SUB: 09119-08087-000		 BOLT 1 -
7 09159-08083-000 NUT 1 Rp28.500
8 08316-1012A-000
SUB: 08316-10123-000		 NUT 1 Rp6.500
9 48400-50J00-P4Z COVER, STEERING COLUMN (GRAY) 1 Rp684.500
10 48491-65D00-000 SEAL, STEERING COLUMN LOWER 1 Rp66.500
11 09116-08120-000 BOLT (8X28) 2 Rp26.500
12 09136M05030-000 SCREW (5X12) 1 Rp4.500
13 09159-08127-000
SUB: 09159M08069-000		 NUT 2 Rp11.000
14 01570-0820B-000
SUB: 01570-08203-000		 BOLT 4 Rp31.000
15 03211M0512A-000
SUB: 03211-05123-000		 SCREW 2 Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
