ESCUDO (SE416)

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.46 FRONT SUSPENSION FIG.47 FRONT SUSPENSION FRAME FIG.48 FRONT STABILIZER FIG.49 FRONT WHELL HUB FIG.50 REAR SUSPENSION FIG.51 AXLE HOUSING FIG.52 REAR AXLE AND BRAKE DRUM FIG.53 ROAD WHEEL AND TIRE FIG.54 STEERING WHEEL FIG.55 STEERING COLUMN FIG.56 STEERING UNIT FIG.57 PS OIL PUMP FIG.58 PEDAL AND PEDAL BRACKET FIG.59 BRAKE MASTER CYLINDER FIG.60 BRAKE PIPING FIG.61 FRONT WHEEL BRAKE FIG.62 REAR WHEEL BRAKE FIG.63 PARKING BRAKE

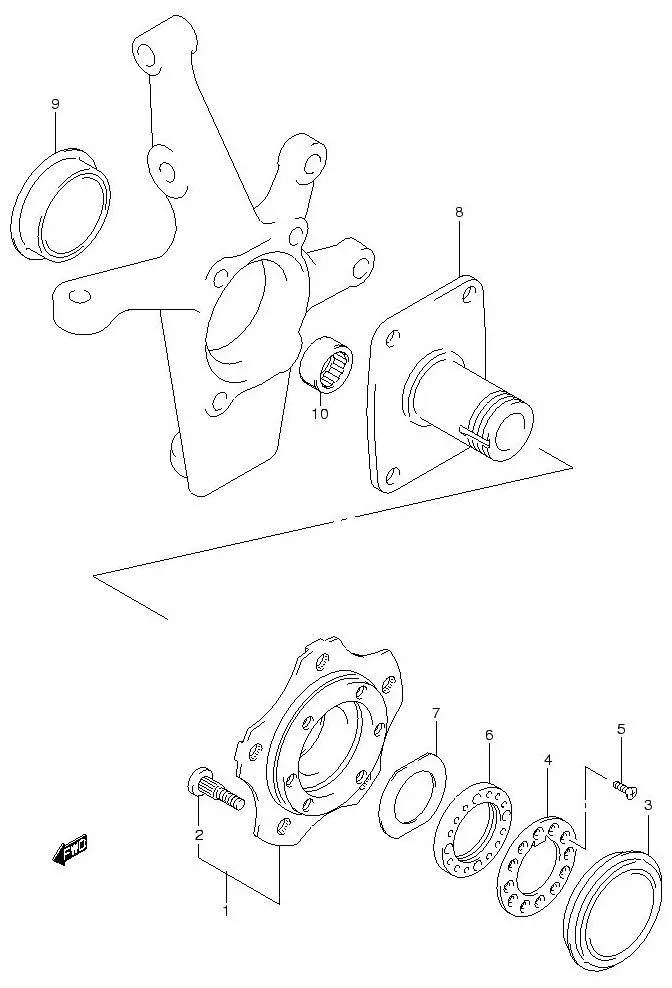

FIG.49 FRONT WHELL HUB

FIG.49 FRONT WHELL HUB

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	43401-65D00-000	HUB ASSY, FRONT WHEEL	2	Rp3.097.000
2	09119-12012-000	•BOLT (12X38)	10	Rp14.500
3	43422-60A00-000	CAP, FRONT WHEEL	2	Rp136.500
4	43466-60A00-000	WASHER, BEARING LOCK	2	Rp181.000
5	02122-0408A-000 SUB: 02122-04083-000	SCREW	8	Rp18.500
6	DISCONTINUE SUB: 43461-54J00-000	NUT, BEARING LOCK	2	-
7	43465-60A00-000	WASHER, WHEEL BEARING	2	Rp23.000
8	43441-60A20-000	SPINDLE, FRONT WHEEL	2	Rp1.693.000
9	DISCONTINUE SUB: 45112-60A00-000	CAP, KNUCKLE	2	-
10	DISCONTINUE SUB: 09263-28030-000	BEARING (28X35X16)	2	-

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
