ESCUDO (SE416)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.46 FRONT SUSPENSIONFIG.47 FRONT SUSPENSION FRAMEFIG.48 FRONT STABILIZERFIG.49 FRONT WHELL HUBFIG.50 REAR SUSPENSIONFIG.51 AXLE HOUSINGFIG.52 REAR AXLE AND BRAKE DRUMFIG.53 ROAD WHEEL AND TIREFIG.54 STEERING WHEELFIG.55 STEERING COLUMNFIG.56 STEERING UNITFIG.57 PS OIL PUMPFIG.58 PEDAL AND PEDAL BRACKETFIG.59 BRAKE MASTER CYLINDERFIG.60 BRAKE PIPINGFIG.61 FRONT WHEEL BRAKEFIG.62 REAR WHEEL BRAKEFIG.63 PARKING BRAKE

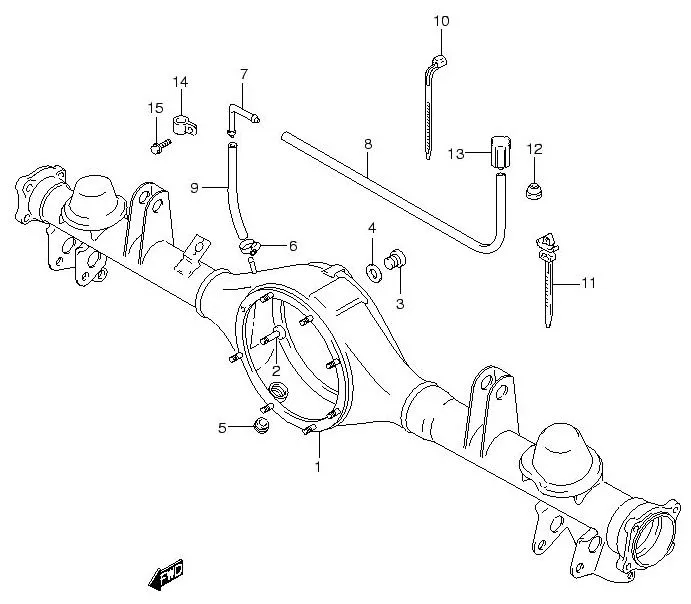

FIG.51 AXLE HOUSING

FIG.51 AXLE HOUSING
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 46500-65D20-000		 HOUSING ASSY, REAR AXLE 1 -
2 DISCONTINUE
SUB: 09119-10057-000		 •BOLT (10X38) 8 -
3 09248-20003-000 PLUG 1 Rp28.500
4 09168-20003-000 GASKET (20X27X2) 1 Rp31.000
5 09246-16021-000
SUB: 09246-16010-000		 PLUG 1 Rp48.000
6 DISCONTINUE
SUB: 09400-16304-000		 CLAMP 1 -
7 DISCONTINUE
SUB: 09367-08003-000		 UNION 1 -
8 DISCONTINUE
SUB: 46545-65D00-000		 HOSE, BREATHER NO.2 1 -
9 DISCONTINUE
SUB: 46546-65D00-000		 HOSE, BREATHER NO.1 1 -
10 DISCONTINUE
SUB: 09407M19401-000		 CLAMP (L:190) 1 -
11 09407-17402-000
SUB: 09407-14408-000		 CLAMP (L:120) 2 Rp39.000
12 DISCONTINUE
SUB: 09308-11009-000		 GROMMET 1 -
13 27991-65D01-000 PLUG, BREATHER 1 Rp22.500
14 DISCONTINUE
SUB: 09403-14408-000		 CLAMP 1 -
15 02162-0612B-000
SUB: 02162-06123-000		 BOLT 1 Rp16.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
