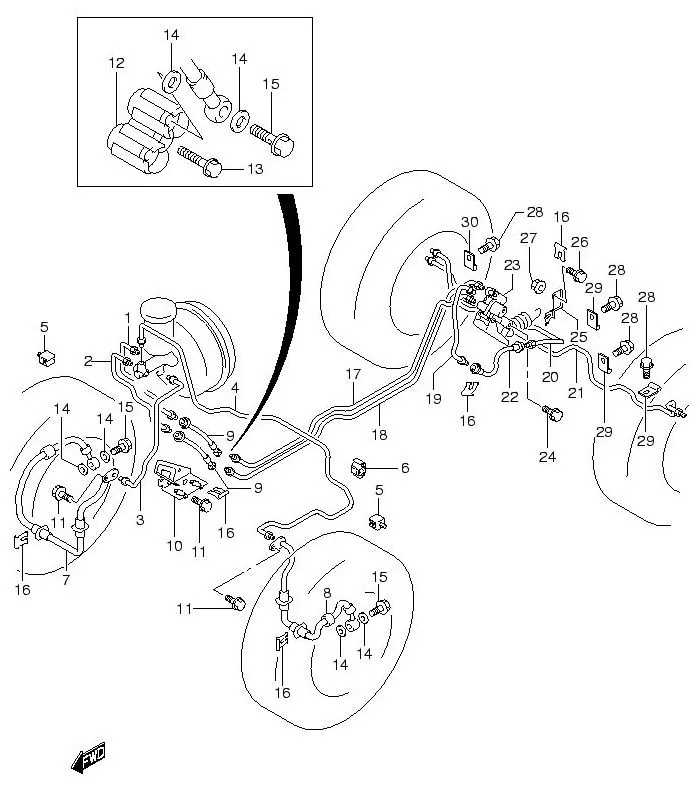

FIG.60 BRAKE PIPING

No	No. Part	Description	Qty	Price Per Pcs
1	DISCONTINUE SUB: 51310-65D00-000	PIPE, MA PRI TO JOINT	1	-
2	DISCONTINUE SUB: 51410-65D00-000	PIPE, MA SEC TO JOINT	1	-
3	DISCONTINUE SUB: 51420-65D01-000	PIPE, MA SEC TO BK HOSE RH	1	-
4	51430-65D20-000	PIPE, MA SEC TO BK HOSE LH	1	Rp380.500
5	DISCONTINUE SUB: 51435-60A00-000	CLAMP, BRAKE PIPE SIDE	2	-
6	51751-75F00-000	CLAMP, BRAKE PIPE	3	Rp29.000
7	51540-65D00-000	HOSE, FR BK FLEXIBLE RH	1	Rp1.001.500
8	51550-65D00-000	HOSE, FR BK FLEXIBLE LH	1	Rp1.001.500
9	51570-60A30-000	HOSE, MA CYLINDER FLEXIBLE	2	Rp345.000
10	DISCONTINUE SUB: 51712-65D00-000	BRACKET, BODY TO FRAME HOSE	1	-
11	02162-0616A-000 SUB: 02162-06163L000	SCREW	4	Rp3.000
12	DISCONTINUE SUB: 51630-65D01-000	JOINT, BRAKE 4 WAY	1	-
13	01550-0630A-000 SUB: 01550-06303-000	BOLT	1	Rp3.000
14	09161-10009-000	WASHER (10X15X1.5)	8	Rp12.500
15	09360-10026-000	UNION BOLT	4	Rp25.000
16	09383M13004-000 SUB: 09383-13003-000	E RING	8	Rp7.000
17	DISCONTINUE SUB: 51510-65D10-000	PIPE, JOINT TO VALVE RR	1	-
18	DISCONTINUE SUB: 51535-65D10-000	PIPE, JOINT TO VALVE FR	1	-
19	DISCONTINUE SUB: 51520-65D10-000	PIPE, VALVE TO RR BK HOSE	1	-
20	DISCONTINUE SUB: 51525-65D00-000	PIPE RR BK HOSE TO RH BK	1	-
21	DISCONTINUE SUB: 51530-65D00-000	PIPE, RH BK TO LH BK	1	-
22	51560-65D00-000	HOSE, RR BRAKE FLEXIBLE	1	Rp314.500
23	51930-65D11-000 SUB: 51930-65D10-000	VALVE ASSY, PROPORTIONING	1	Rp3.244.000
24	01550-0820A-000 SUB: 01550-08203-000	BOLT	2	Rp5.500
25	DISCONTINUE SUB: 51955-65D00-000	STAY, PROPORTIONING VALVE	1	-
26	01550-0812A-000 SUB: 01550B08123N000	BOLT	1	Rp3.500
27	08316-1008A-000 SUB: 08316B10083N000	NUT	1	Rp3.500
28	09132-06006-000	SCREW (6X12)	5	Rp18.000
29	09403-06401-000	CLAMP	3	Rp16.500
30	DISCONTINUE SUB: 09403-06404-000	CLAMP	2	-
