ESCUDO (SE416)

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.46 FRONT SUSPENSION FIG.47 FRONT SUSPENSION FRAME FIG.48 FRONT STABILIZER FIG.49 FRONT WHELL HUB FIG.50 REAR SUSPENSION FIG.51 AXLE HOUSING FIG.52 REAR AXLE AND BRAKE DRUM FIG.53 ROAD WHEEL AND TIRE FIG.54 STEERING WHEEL FIG.55 STEERING COLUMN FIG.56 STEERING UNIT FIG.57 PS OIL PUMP FIG.58 PEDAL AND PEDAL BRACKET FIG.59 BRAKE MASTER CYLINDER FIG.60 BRAKE PIPING FIG.61 FRONT WHEEL BRAKE FIG.62 REAR WHEEL BRAKE FIG.63 PARKING BRAKE

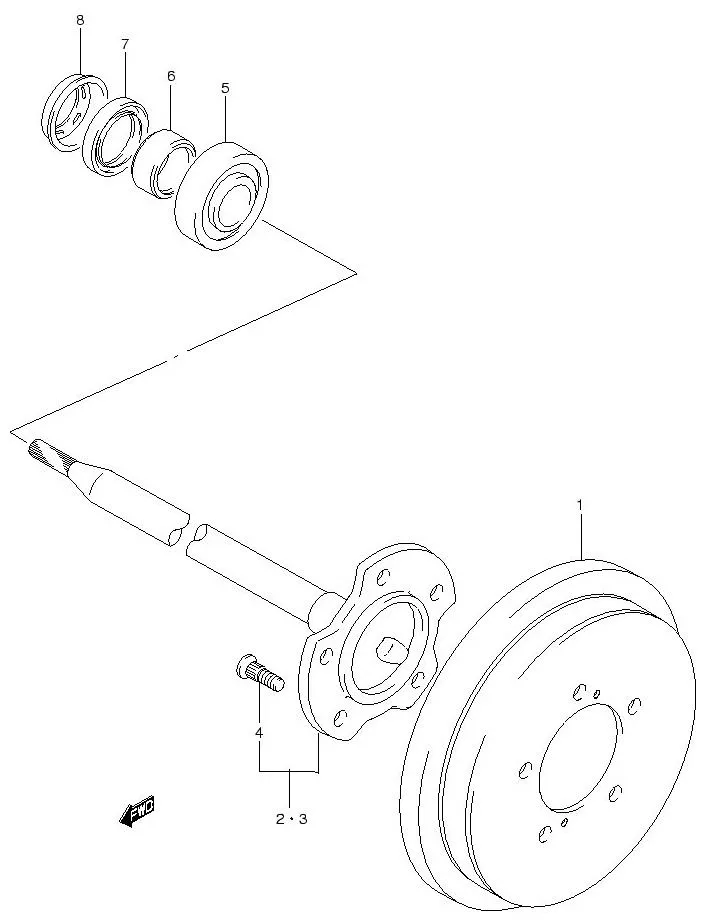

FIG.52 REAR AXLE AND BRAKE DRUM

FIG.52 REAR AXLE AND BRAKE DRUM

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	43511-65D10-000	DRUM, REAR BRAKE	2	Rp2.261.000
2	44210-65810-000	SHAFT SET, REAR AXLE RH	1	Rp3.718.500
3	44220-65810-000	SHAFT SET, REAR AXLE LH	1	Rp3.807.000
4	09119-12012-000	•BOLT (12X38)	10	Rp14.500
5	43591-65D00-000	BEARING, REAR WHEEL	2	Rp1.057.500
6	43485-65D00-000	RING, BEARING RETAINER	2	Rp218.500
7	43592-65D00-000	SEAL, OIL INNER	2	Rp134.000
8	43588-65D00-000	PROTECTOR, OIL SEAL	2	Rp39.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
