ESCUDO (SE416)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.46 FRONT SUSPENSIONFIG.47 FRONT SUSPENSION FRAMEFIG.48 FRONT STABILIZERFIG.49 FRONT WHELL HUBFIG.50 REAR SUSPENSIONFIG.51 AXLE HOUSINGFIG.52 REAR AXLE AND BRAKE DRUMFIG.53 ROAD WHEEL AND TIREFIG.54 STEERING WHEELFIG.55 STEERING COLUMNFIG.56 STEERING UNITFIG.57 PS OIL PUMPFIG.58 PEDAL AND PEDAL BRACKETFIG.59 BRAKE MASTER CYLINDERFIG.60 BRAKE PIPINGFIG.61 FRONT WHEEL BRAKEFIG.62 REAR WHEEL BRAKEFIG.63 PARKING BRAKE

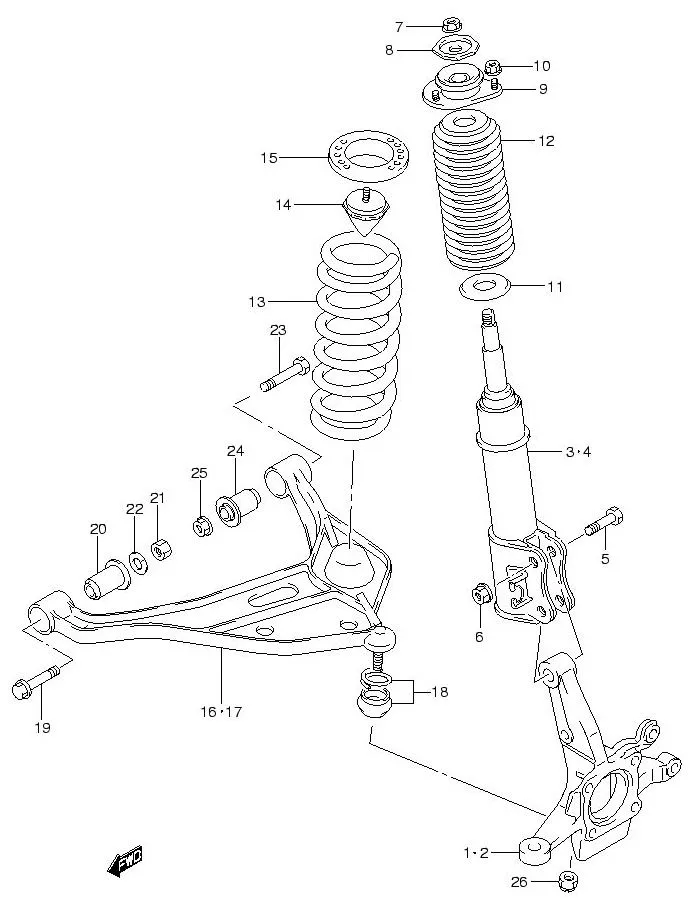

FIG.46 FRONT SUSPENSION

FIG.46 FRONT SUSPENSION
No No. Part Description Qty Price Per Pcs Remarks
1 45111-65DV1-000 KNUCKLE, STEERING RH 1 Rp4.542.000
2 45151-65DV1-000 KNUCKLE, STEERING LH 1 Rp4.542.000
3 41601-65D10-000 STRUT, FRONT SUSPENSION RH 1 Rp3.661.500
4 41602-65D10-000 STRUT, FRONT SUSPENSION LH 1 Rp3.661.500
5 09103-12090-000
SUB: 09100-12057-000		 BOLT (12X61) 4 Rp39.500
6 08316-1012A-000
SUB: 08316-10123-000		 NUT 4 Rp6.500
7 09159-14030-000
SUB: 09159-14015-000		 NUT 2 Rp35.000
8 41841-65D00-000 SEAT, STRUT UPPER 2 Rp79.500
9 41810-65D00-000 SUPPORT, FRONT STRUT 2 Rp913.000
10 DISCONTINUE
SUB: 09159-10106-000		 NUT 6 -
11 41842-60A00-000 SEAT, STRUT LOWER 2 Rp73.500
12 41850-65D00-000 BOOT, STRUT DUST 2 Rp377.500
13 DISCONTINUE
SUB: 41111B65D40N000		 SPRING, FRONT COIL 2 -
14 42110-60A10-000 STOPPER, BUMP 2 Rp266.000
15 41211-60A00-000 SEAT, RUBBER 2 Rp142.000
16 45201-67D01-000 ARM ASSY, FRONT SUSPENSION RH 1 Rp3.339.500
17 45202-67D01-000 ARM ASSY, FRONT SUSPENSION LH 1 Rp3.339.500
18 45700-60810-000
SUB: 45706-60A00-000		 •SEAL SET 2 Rp204.000
19 09103-12048-000 BOLT (12X90) 2 Rp56.000
20 45261-65D01-000 BUSHING, ARM FRONT 2 Rp446.500
21 08310-0012A-000
SUB: 08310-00123L000		 NUT 2 Rp17.500
22 DISCONTINUE
SUB: 08321-01123L000		 LOCK WASHER 2 -
23 09100-14003-000 BOLT, (14X98) 2 Rp80.000
24 45262-65D01-000 BUSHING, ARM REAR 2 Rp348.000
25 09159-14030-000
SUB: 09159-14015-000		 NUT 2 Rp35.000
26 09159-14029-000
SUB: 45717-65D00-000		 NUT, CAULKING 2 Rp27.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
