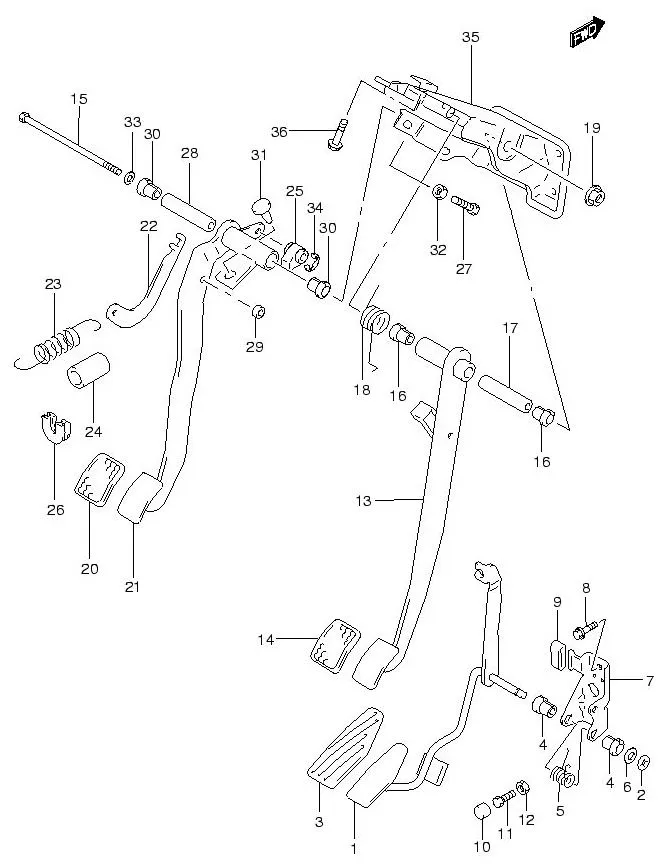

FIG.58 PEDAL AND PEDAL BRACKET

No	No. Part	Description	Qty	Price Per Pcs
1	DISCONTINUE SUB: 49410-77E10-000	PEDAL, ACCELERATOR	1	-
2	DISCONTINUE SUB: 09148-09001-000	NUT	1	-
3	49451M60B00-000	PAD, ACCELERATOR PEDAL	1	Rp12.500
4	DISCONTINUE SUB: 09307-09001-000	BUSHING	2	-
5	09448-21005-000	SPRING	1	Rp44.500
6	DISCONTINUE SUB: 09160-09016-000	WASHER (9.5X20X1.0)	1	-
7	DISCONTINUE SUB: 49511-65D00-000	BRACKET, ACCELERATOR	1	-
8	02162-0612B-000 SUB: 02162-06123-000	BOLT	2	Rp16.000
9	DISCONTINUE SUB: 49416-60A00-000	CUSHION, ACCEL PEDAL RETURN	1	-
10	09251-09002-000	CAP	1	Rp22.000
11	DISCONTINUE SUB: 09100-06159-000	BOLT (6X34)	1	-
12	08310-0006B-000 SUB: 08310-00063-000	NUT	1	Rp4.500
13	DISCONTINUE SUB: 49610-65D00-000	PEDAL, BRAKE	1	-
14	49751M58J00-000 SUB: 49751-79001-000	PAD, BRAKE PEDAL	1	Rp9.500
15	09100-10056-000	BOLT (10X160)	1	Rp75.000
16	09306M13004-000 SUB: 09307M13005-000	BUSHING	2	Rp11.500
17	09180-10121-000	SPACER (10.1X13X73.8)	1	Rp38.500
18	DISCONTINUE SUB: 49691-65D00-000	SPRING, BRAKE PEDAL	1	-
19	DISCONTINUE SUB: 08316-20103-000	NUT	1	-
20	49751M58J00-000 SUB: 49751-79001-000	PAD, PEDAL	1	Rp9.500
21	49810-65D31-000	PEDAL, CLUTCH	1	Rp841.000
22	DISCONTINUE SUB: 49831-65D00-000	ARM, CLUTCH RETURN SPRING	1	-
23	DISCONTINUE SUB: 49891-65D00-000	SPRING, CLUTCH PEDAL RETURN	1	-
24	DISCONTINUE SUB: 49892-65D00-000	TUBE, RETURN SPRING	1	-
25	DISCONTINUE SUB: 49893-65D00-000	BUSH, SPRING PEDAL SIDE	1	-
26	DISCONTINUE SUB: 49894-65D00-000	BUSH, SPRING BRKT SIDE	1	-
27	DISCONTINUE SUB: 09100-06088-000	BOLT (6X30)	1	-
28	09180-10121-000	SPACER (10.1X13X73.8)	1	Rp38.500
29	09307-08002-000	BUSH	1	Rp24.500
30	09306M13004-000 SUB: 09307M13005-000	BUSH	2	Rp11.500
31	09321M06026-000	CUSHION	1	Rp4.500
32	08310-0006B-000 SUB: 08310-00063-000	NUT	1	Rp4.500
33	08322-0110B-000 SUB: 08322B01103N000	WASHER	1	Rp4.500
34	08332-1105A-000 SUB: 08332-11056-000	E RING	1	Rp11.500
35	DISCONTINUE SUB: 49710-52DM0-000	BRACKET, PEDAL	1	-
36	01550-0820A-000 SUB: 01550-08203-000	BOLT	2	Rp5.500
