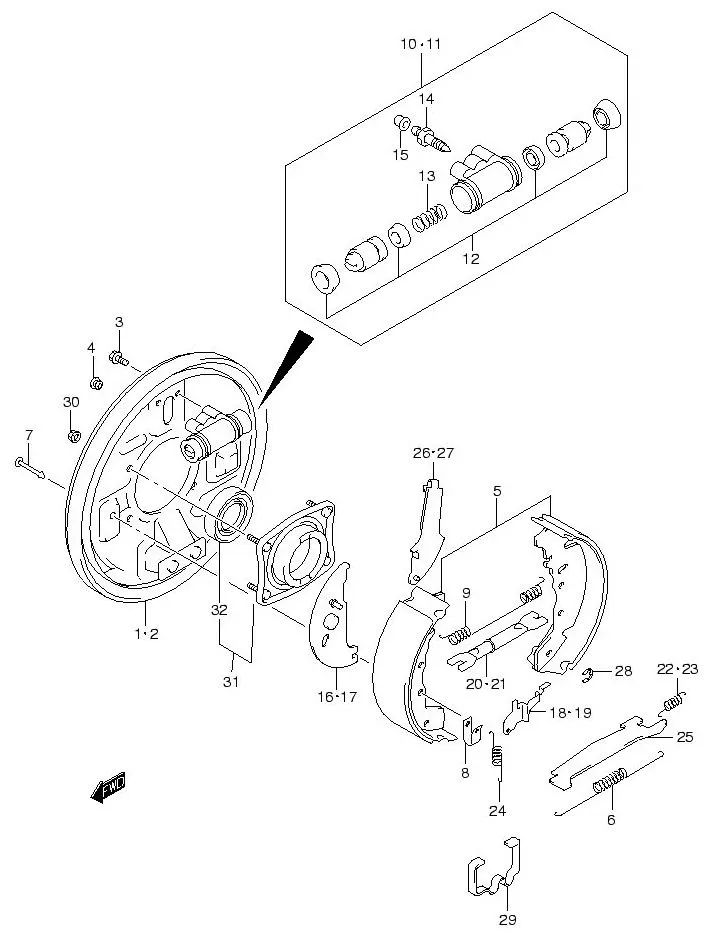

FIG.62 REAR WHEEL BRAKE

No	No. Part	Description	Qty	Price Per Pcs
1	DISCONTINUE SUB: 53110-65D00-000	PLATE ASSY, BACKING RH	1	-
2	DISCONTINUE SUB: 53120-65D00-000	PLATE ASSY, BACKING LH	1	-
3	DISCONTINUE SUB: 53131-52D00-000	BOLT	4	-
4	53141-65D00-000	PLUG, BACKING PLATE	2	Rp16.000
5	53200-65D13-000 SUB: 53200-65D11-000	SHOE SET, BRAKE	1	Rp1.095.500
6	53231-65D00-000	SPRING, SHOE RETURN LOWER	2	Rp62.000
7	53241-82030-000	PIN, SHOE HOLD DOWN	4	Rp21.500
8	53243-65D00-000	SPRING, SHOE HOLD DOWN	4	Rp44.000
9	53331-65D00-000	SPRING, SHOE RETURN UPPER	2	Rp64.000
10	53401-65D00-000	CYLINDER ASSY, RR WHEEL RH	1	Rp810.000
11	53402-65D01-000 SUB: 53402-65D00-000	CYLINDER ASSY, RR WHEEL LH	1	Rp776.500
12	53400-60830-000	•PISTON CUP/BOOT SET	2	Rp170.500
13	53441-56B00-000	•SPRING, WHEEL CYLINDER	2	Rp102.500
14	55473-82031-000	•PLUG, BLEEDER LH (M7X1)	1	Rp54.500
15	55156M66310-000	•CAP, BLEEDER PLUG LH	1	Rp23.500
16	53711-65D10-000	LINK ASSY, RH	1	Rp298.000
17	53712-65D10-000	LINK ASSY, LH	1	Rp298.000
18	53781-65D00-000	LEVER, PARKING ADJUSTER RH	1	Rp78.000
19	53782-65D00-000	LEVER, PARKING ADJUSTER LH	1	Rp78.000
20	53810-65D00-000	ADJUSTER ASSY, RH	1	Rp332.500
21	53850-65D00-000	ADJUSTER ASSY, LH	1	Rp332.500
22	53791-52D00-000	SPRING, ANTIRATTLE RH	1	Rp42.000
23	53792-52D00-000	SPRING, ANTIRATTLE LH	1	Rp44.000
24	53824-65D00-000	SPRING, ADJUSTER	2	Rp37.500
25	53830-65D10-000	STRUT ASSY, RH	2	Rp406.500
26	53720-65D01-000 SUB: 53720-65D00-000	LEVER, PARKING SHOE RH	1	Rp228.500
27	53730-65D01-000 SUB: 53730-65D00-000	LEVER, PARKING SHOE LH	1	Rp232.500
28	53753-82030-000	E RING, PARKING LEVER	2	Rp11.000
29	53201-65D00-000	SHIM, ANCHOR	2	Rp74.500
30	09159-08075-000	NUT	8	Rp14.000
31	53820-65D00-000	RETAINER, RR WHEEL OUTER	2	Rp392.500
32	43593-65D00-000	•SEAL, OIL	2	Rp227.500
