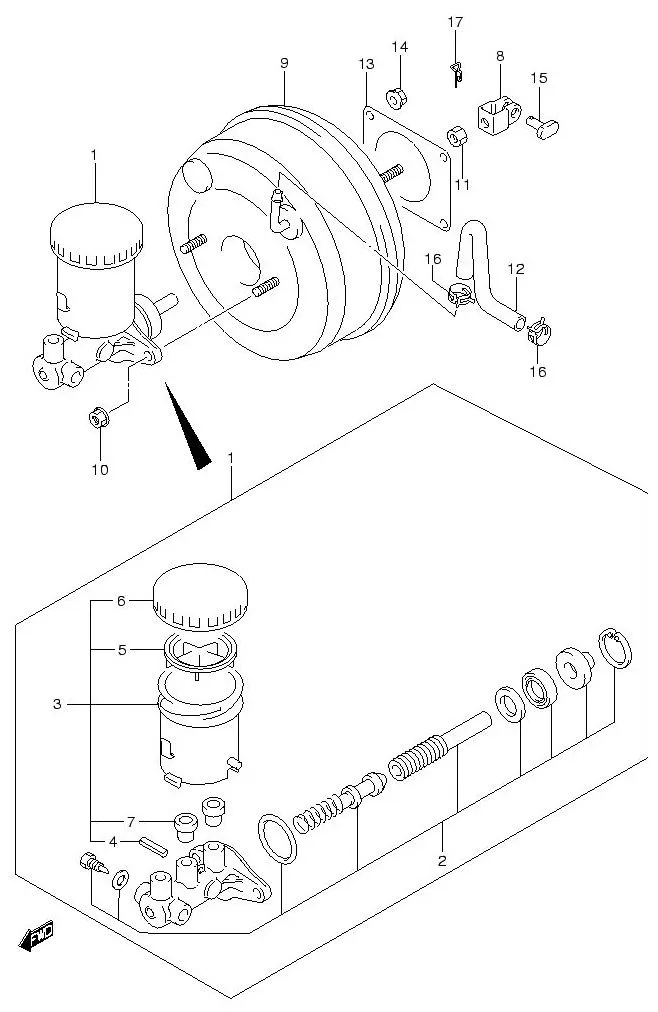

FIG.59 BRAKE MASTER CYLINDER

FIG.59 BRAKE MASTER CYLINDER
No No. Part Description Qty Price Per Pcs Remarks
1 51100-65D02-000
SUB: 51100-65D01-000		 CYLINDER ASSY, BRAKE MASTER 1 Rp3.911.500
2 51810-57B01-000
SUB: 51810-57B00-000		 •REPAIR SET, BRAKE MASTER 1 Rp1.126.000
3 51200-65D10-000 •RESERVOIR ASSY, MASTER CYL 1 Rp1.629.500
4 09205-05003-000 ••SPRING PIN 1 Rp13.500
5 DISCONTINUE
SUB: 51234-60A20-000		 ••STRAINER, RESERVOIR 1 -
6 51220-60A30-000 ••CAP, RESERVOIR 1 Rp437.000
7 DISCONTINUE
SUB: 51197-85520-000		 ••GROMMET, RESERVOIR CONNECTOR 2 -
8 DISCONTINUE
SUB: 51182-77E00-000		 CLEVIS, CYLINDER PUSH ROD 1 -
9 51300-65D00-000 BOOSTER ASSY, BRAKE MASTER 1 Rp6.369.500
10 09159-08075-000 NUT 2 Rp14.000
11 DISCONTINUE
SUB: 09140-10019-000		 NUT 1 -
12 DISCONTINUE
SUB: 51010-65D00-000		 HOSE, BRAKE VACUUM 1 -
13 51132-82003-000 PACKING, BRAKE MASTER CYLINDER 1 Rp33.000
14 09159-08127-000
SUB: 09159M08069-000		 NUT 4 Rp11.000
15 09200M10021-000 PIN 1 Rp7.000
16 09401-15404-000 CLAMP 2 Rp14.500
17 09385-10006-000 CLIP 1 Rp16.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
