ESCUDO (SE416)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.46 FRONT SUSPENSIONFIG.47 FRONT SUSPENSION FRAMEFIG.48 FRONT STABILIZERFIG.49 FRONT WHELL HUBFIG.50 REAR SUSPENSIONFIG.51 AXLE HOUSINGFIG.52 REAR AXLE AND BRAKE DRUMFIG.53 ROAD WHEEL AND TIREFIG.54 STEERING WHEELFIG.55 STEERING COLUMNFIG.56 STEERING UNITFIG.57 PS OIL PUMPFIG.58 PEDAL AND PEDAL BRACKETFIG.59 BRAKE MASTER CYLINDERFIG.60 BRAKE PIPINGFIG.61 FRONT WHEEL BRAKEFIG.62 REAR WHEEL BRAKEFIG.63 PARKING BRAKE

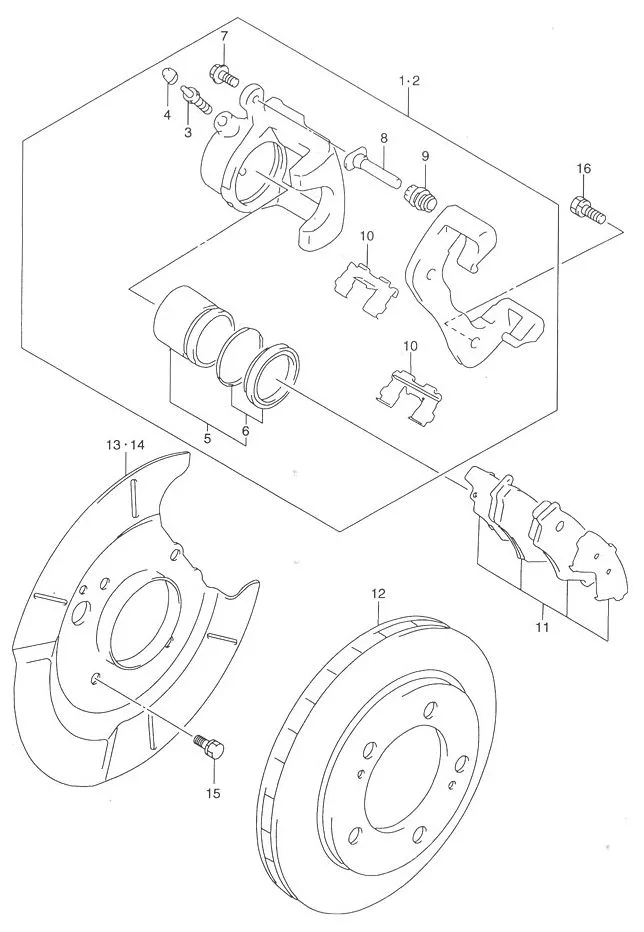

FIG.61 FRONT WHEEL BRAKE

FIG.61 FRONT WHEEL BRAKE
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 55101-65D00-999		 CALIPER, FRONT BRAKE RH 1 -
2 DISCONTINUE
SUB: 55102-65D00-999		 CALIPER, FRONT BRAKE LH 1 -
3 55151-78451-000
SUB: 55473-82030-000		 •PLUG, BLEEDER 2 Rp45.500
4 55156M66310-000 •CAP, BLEEDER PLUG 2 Rp23.500
5 55840-64G00-000 •PISTON/SEAL SET 2 Rp534.500
6 55830-64G00-000 ••SEAL SET 2 Rp167.000
7 55206-60A01-000
SUB: 55206-60A00-000		 •BOLT, BRAKE CALIPER 4 Rp74.500
8 55191-56B00-000 •PIN, CYLINDER SLIDE 4 Rp171.500
9 55201-56B01-000 •BOOT, PIN 4 Rp65.000
10 55234-56B00-000 •SPRING, PAD 4 Rp111.500
11 55200-65D21-000 PAD SET, DISC BRAKE 1 Rp2.036.000
12 55211-65D02-000
SUB: 55211-65D01-000		 DISC, FRONT BRAKE 2 Rp1.832.500
13 DISCONTINUE
SUB: 55221-65D00-000		 COVER, DISC DUST RH 1 -
14 DISCONTINUE
SUB: 55222-65D00-000		 COVER, DISC DUST LH 1 -
15 09117-10042-000 BOLT (10X25) 8 Rp22.000
16 09117-12012-000 BOLT (12X32) 4 Rp38.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
