ESCUDO (SE416)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.46 FRONT SUSPENSIONFIG.47 FRONT SUSPENSION FRAMEFIG.48 FRONT STABILIZERFIG.49 FRONT WHELL HUBFIG.50 REAR SUSPENSIONFIG.51 AXLE HOUSINGFIG.52 REAR AXLE AND BRAKE DRUMFIG.53 ROAD WHEEL AND TIREFIG.54 STEERING WHEELFIG.55 STEERING COLUMNFIG.56 STEERING UNITFIG.57 PS OIL PUMPFIG.58 PEDAL AND PEDAL BRACKETFIG.59 BRAKE MASTER CYLINDERFIG.60 BRAKE PIPINGFIG.61 FRONT WHEEL BRAKEFIG.62 REAR WHEEL BRAKEFIG.63 PARKING BRAKE

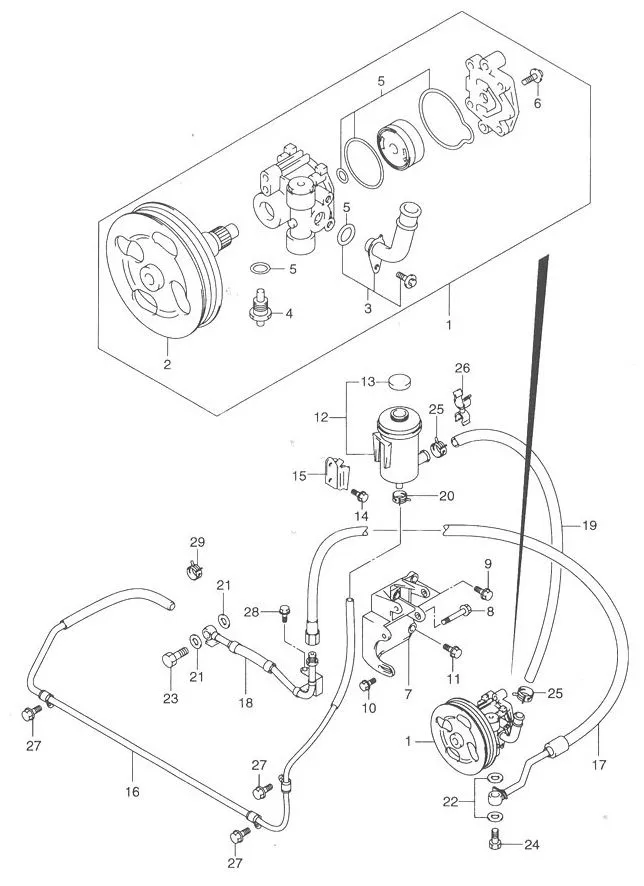

FIG.57 PS OIL PUMP

FIG.57 PS OIL PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 49100-65D00-000 PUMP ASSY, POWER STEERING 1 Rp9.732.500
2 49111-56B30-000 •PULLEY 1 Rp1.728.500
3 DISCONTINUE
SUB: 49112-56B30-000		 •CONNECTOR SET 1 -
4 49113-65D00-000 •TERMINAL SET 1 Rp476.000
5 49114-56B30-000 •SEAL SET 1 Rp470.500
6 DISCONTINUE
SUB: 49115-56B30-000		 •BOLT SET 1 -
7 DISCONTINUE
SUB: 49120-67D00-000		 BRACKET, PS PUMP 1 -
8 09103-08230-000
SUB: 09103-08132-000		 BOLT (8X100) 1 Rp27.000
9 01550-1030B-000
SUB: 01550-10303-000		 BOLT 2 Rp25.500
10 01550-0825A-000
SUB: 01550-08253-000		 BOLT 1 Rp3.500
11 01550-1035B-000
SUB: 01550B10353N000		 BOLT 1 Rp5.000
12 49140-54J01-000
SUB: 49140-54J00-000		 TANK ASSY, POWER STEERING OIL 1 Rp955.500
13 49142-65D00-000 •CAP 1 Rp67.500
14 02162-0612B-000
SUB: 02162-06123-000		 BOLT 2 Rp16.000
15 DISCONTINUE
SUB: 49150-65D00-000		 BRACKET, RESERVOIR TANK 1 -
16 DISCONTINUE
SUB: 49220-65D00-000		 HOSE ASSY, RETURN 1 -
17 49230-65D00-000 HOSE, PRESSURE PUMP SIDE 1 Rp3.250.500
18 49210-65D00-000 HOSE, PRESSURE RACK SIDE 1 Rp2.230.000
19 49214-65D00-000 HOSE, SUCTION 1 Rp338.500
20 09401-15404-000 CLIP 1 Rp14.500
21 09168-14014-000 GASKET (14X18X1.5) 2 Rp18.000
22 09168-16002-000 GASKET (16X22X2) 2 Rp13.000
23 09360-14011-000 BOLT (14X27) 1 Rp96.000
24 09360-16003-000 BOLT (16X29) 1 Rp92.000
25 09401-20405-000 CLIP 2 Rp23.500
26 DISCONTINUE
SUB: 09408-00176-000		 CLAMP 1 -
27 02162-0616A-000
SUB: 02162-06163L000		 BOLT 3 Rp3.000
28 02162-0612B-000
SUB: 02162-06123-000		 SCREW 1 Rp16.000
29 49225-65D10-000 CLAMP, HOSE GEAR SIDE 1 Rp38.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
